TABLE OF CONTENTS Rev. 7/6/2021 BBL-OC-4 MANUAL
TABLE OF CONTENTS Copyright 2021 Vestil Manufacturing Co. Page 4 of 6
WARNING
• DO NOT modify the lifter in any way. Modifications automatically void the LIMITED WARRANTY (on p. 6)
and might make the lifter unsafe to use.
RECORD OF SATISFATORY CONDITION (THE “RECORD”)
Before putting the lifter into service, record its appearance. Thoroughly photograph the unit so that all
features are clearly visible. Take close range photographs of each label and/or tag as well as the carriage
chain and snap hook. Collect the photographs in a file. The file is a record of the unit in satisfactory
condition. Compare the results of each inspection to this record to determine whether the unit is in
satisfactory condition. Do not use it unless it is in satisfactory condition.
INSPECTIONS & MAINTENANCE
Compare the results of each inspection to the RECORD to determine whether the unit is in satisfactory
condition. DO NOT use the lifter unless it is in satisfactory condition. Only use manufacturer-approved
replacement parts to restore the unit to satisfactory condition. Never make temporary repairs of damaged
or missing parts. DON’T GUESS! If you have any questions about the condition of your unit, contact the
TECHNICAL SERVICE department. The phone number is provided on the cover page of this manual. Purely
cosmetic changes, such as chipped paint, are not changes from satisfactory condition. However,
unprotected steel rusts so touchup paint should be applied to all areas where the finish is damaged as soon
as the damage occurs. Left unaddressed, rusting could compromise the soundness of the metal and
create a safety hazard.
(A) Inspect the listed components before each use:
1.) Frame: Inspect the fork channels, and main frame for deformations, cracks, etc.
2.) Carriage chain, quick link, and snap hook: Closely examine each item for cracks, twists, elongations,
thinned areas, and rusting/corrosion, or significant wear.
3.) Labels & tags: Confirm that each label and/or tag is present and easily readable.
(B) Annual inspection: At least once per year, load the lifter to full capacity. Lift the load for about 1 minute;
then lower it and disconnect the load from the lifting hook. Examine the lifter for metal fatigue, cracks,
warps, and other damage. If significant damage is found, permanently remove the unit from service.
USING THE LIFTER
The bag lifter mounts on the forks of a forklift.
NOTE: Capacity information appears in the SPECIFICATIONS section on p. 2 as well as on label #1153. See
LABELING DIAGRAM on p. 5. The capacity of this lifter is 4000 lb. (1818.2kg). Do not attempt to lift loads that
exceed the capacity of your unit. The forklift used with this device must be able to support the combined
weight of the lifter, the bulk bug, and the material inside the bulk bag.
Mounting the lifter on forks:
a. Adjust the positions of the forks to match the
locations of the fork channels of the lifter.
b. Insert the forks through both fork channels.
c. Wrap the carriage chain around part of the fork
carriage. Attach the snap hook to the quick link
or to a link in the chain. There must be no slack in
the chain! The lifter must not be able to slide on
the forks.
e. Elevate the forks. Attach a fabric hopper/bulk
bag to the lifter. Attach each of the (4) straps of
the bag to one of the arms of the lifter. Slide the
straps over the retainers and seat them in the
strap slots. Material can be loaded into the bag
through the central opening of the lifter,
OSHA rule 29 CFR 1910.178 applies to front end attachments. The rule requires that you contact the
manufacturer of your fork truck (or a professional engineer). The manufacturer must determine how using
the lift affects the capacity, operation, and maintenance of your fork truck. The analysis can also be
performed by a professional engineer. Afterwards, plates, tags, labels, etc. affixed to the truck must be
updated. The truck should also be marked to identify this BBL-4 attachment and to display the approximate
weight of the truck and attachment combination at maximum elevation with a laterally centered load.

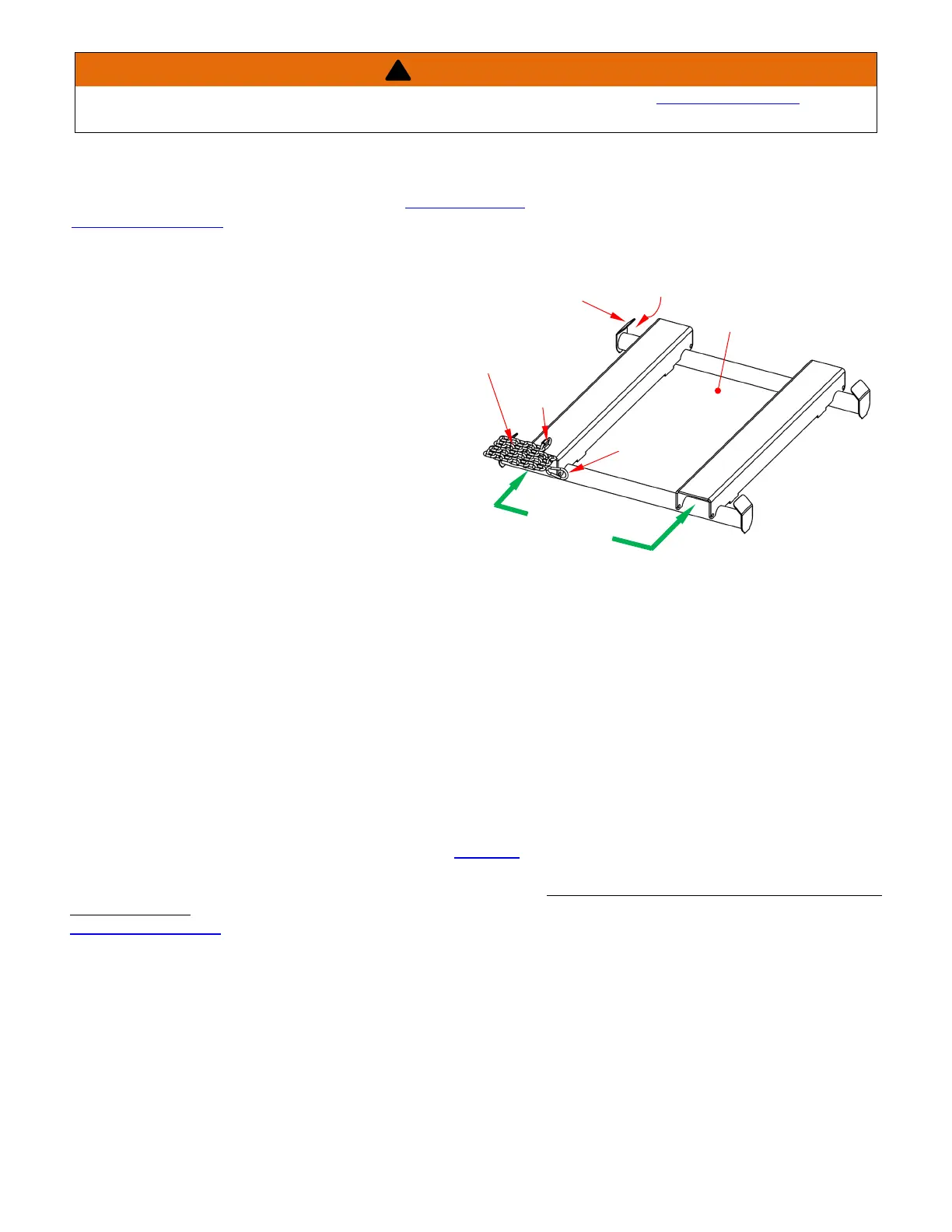

Retainer
Strap slot
Carriage
chain
Central opening
allows attached bulk
bag to be easily filled.
Snap
hook
Insert forks
into fork
channels
Quick
link
!
