9/6/2022 APG, MANUAL
Copyright 2022 Vestil Manufacturing Corp. Page 3 of 6

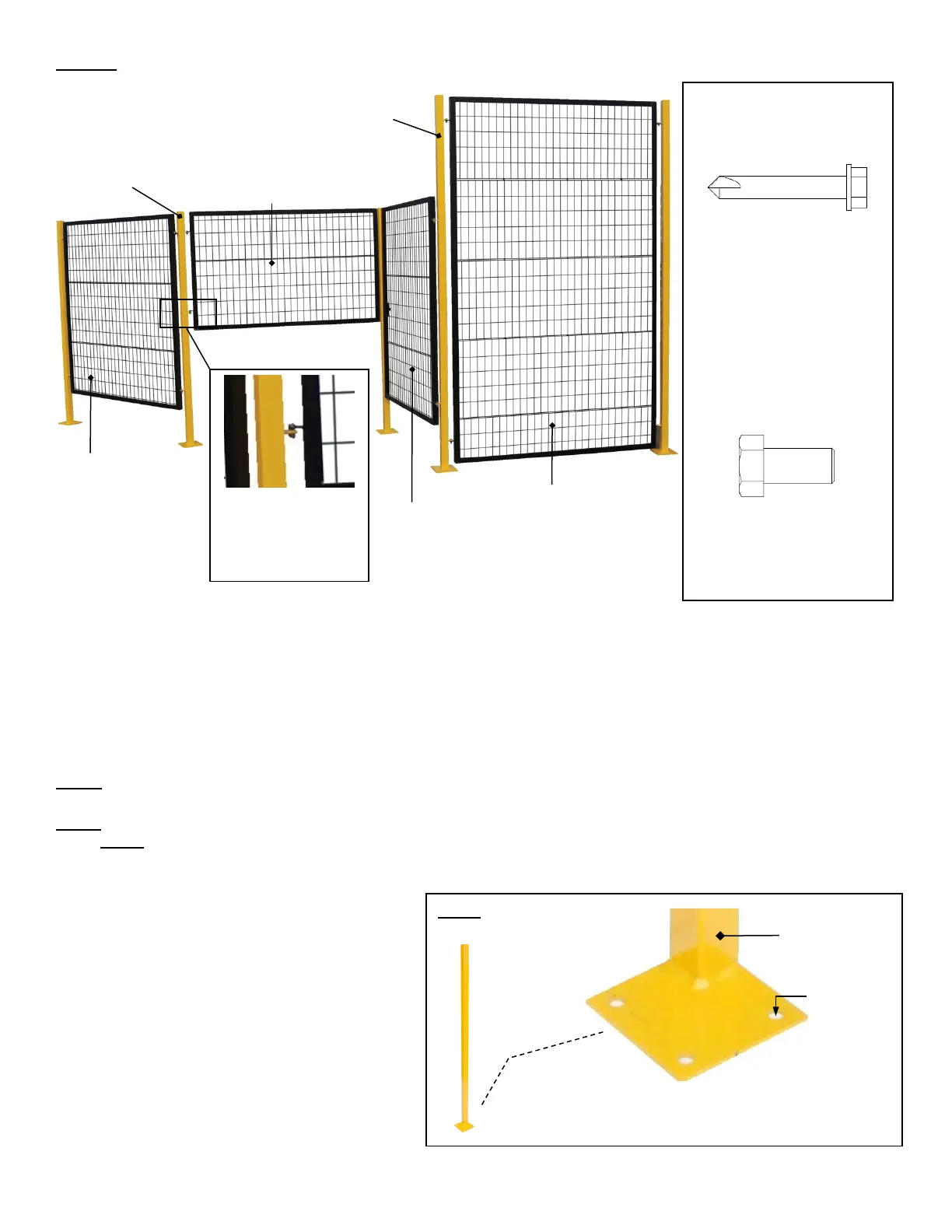

FIG. 1: Example assembly
Installation instructions:
Compliance with local building code requirements, municipal or county ordinances, OSHA standards, etc. is exclusively
the responsibility of the end-user.
Installation requires the following:
• Anchor bolts [not supplied]: select
3
/
8
” in. diameter anchor bolts that are at least 4in. long (1.3 cm by 10cm);
• Masonry drill and drill bit: select a drill bit that matches the outer diameter of the anchor sleeve;
•
3
/
8
” in. wrench or socket.
Step 1: Sweep and clean the floor surface where the guard system will be installed. The surface should be undamaged,
even, and level.
Step 2: Determine the ideal location for the gate (APG-DR-54), and install the post that will support the hinged side of the
gate. [NOTE: 1) Opening the gate requires a key when accessed from one side, but does not require a key if accessed
from the other side. Be sure to determine the desired orientation of the latch when selecting a location for the post. 2)
Verify that the gate will open in the desired direction.]
To install the post:
Put the post in the appropriate location (if using
a corner post, see “NOTE about installing
corner posts” on p.5), and then mark the floor
to show the location of each bolt hole (4 total)
in the floor bracket of the post;
Drill three (3 for corner posts) or four (4 for in-
line posts) holes at least 4 in. deep;
Move the post into position and align the
bracket with the drilled holes. Slide a
3
/
8
” in. flat
washer onto each bolt and insert the bolts into
the bolt holes. Tighten the connections to
securely fasten the post to the floor.
Floor bracket (corner post model APG-P6 or 8- C
shown; in-line model APG-P6 or 8-L posts have posts
in center of bracket and 4 bolt holes)
(Corner) Post
Floor
bracket
½ in. bolt
hole
6ft. Post
APG-P6-L (or C)
Panel (3ft. x 5ft.)
APG-M-35
Tabs (yellow)
fastened to posts
and support tabs
(black) welded to
panels
8ft. Post
APG-P8-L (or C)
Panel (8ft. x 5ft.)
APG-M-85
Gate
APG-DR-54
Panel (4ft. x 5ft.)
APG-M-45
Hardware included with
gate (APG-DR-54:
• 12-24 x 1¼ in. self-drilling
screw (10 pieces);
• ¼ in. flat washer (10
pieces);
Hardware included with
each panel:
• 12-24 x 1¼ in. self-drilling
screw (8 pieces);
• ¼ in. flat washer
(8pieces);
• 5/16 – 18 x 1in. hex bolt
(4 pieces)
• 5/16 in. -18 nut (4 pieces);
• 5/16 in. flat washer (4
pieces);
• 5/16 in. locking washer (4
pieces);
FIG. 2: Post and bracket
