Table of Contents Rev. 10/2/2020 LLW MANUAL
Table of Contents Copyright 2020 Vestil Manufacturing Co. Page 7 of 21
Item
Part no.
Description
Qty.
Item
Part no.
Description
Qty.
1
42-514-033 WELDMENT, FRAME 1
15
42034
U-BOLT, ZINC PLATED, Ø5/16"-
18 X 2" PIPE SIZE
1
2
42-513-006 WELDMENT, DECK 1
16
33620
LOCK WASHER, MEDIUM SPLIT,
Ø5/16"
2
3
21-527-002
SUB-ASSEMBLY, ROLLER W/
BUSHING
2
17
36104
HEX NUT, GRADE A, ZINC
PLATED, 5/16-18
2
4
16-132-058 WHEEL, POLY ON POLY 2
18
11021
HHCS #2 Z PLATED, Ø1/4 - 20
UNC x 4 1/2 LG
2
5
68015
EXTERNAL RETAINING
RING,PHOSPHATE, 3/4"
2
19
36102
HEX NUT, GRADE A, ZINC
PLATED, 1/4-20
2
6
33018
USS FLAT WASHER, Z
PLATED, Ø 3/4"
4
20
01-640-031 PUMP, MANUAL, STK 24" FHJ 1
7
21-112-003
PIN, Ø1/2 X 1-15/16 LG
RETAINING CLEVIS
2
21
13-025-004-
002
HANDLE, WITH HOLES 1
8
65107
COTTER PIN, ZINC FINISH,
Ø5/32" X 2"
2
22
31802 SCREW, SELF-TAPPING SCREW
2
9
16-132-009
PP-4/1.25-W
2
23
36110
HEX NUT Z-PLATED, Ø 1/2 - 13
2
10
11113
HEX BOLT, GRADE A, PLAIN
FINISH, 3/8"-16 X 2-1/2"
2
24
33-542-003 CHAIN, CHAIN ASSEMBLY 1
11
37024
NYLON INSERT LOCK NUT,
GRADE 2, ZINC FINISH, 3/8"-16
2
25
21-001-132
FINAL ASSEMBLY W/O
SHIPPING
1
12
21-112-002 PIN. ROLLER 4
26
27560
#10-32 x 3/4 LG SLOTTED
MACHINE SCREW
4
13
42-027-005
ROLLER, GUIDE ROLLER
8
27
37015
10-32 NYLOCK NUT Z-PLATED
4
14
33-542-001
ASSEMBLY, PULLEY
1

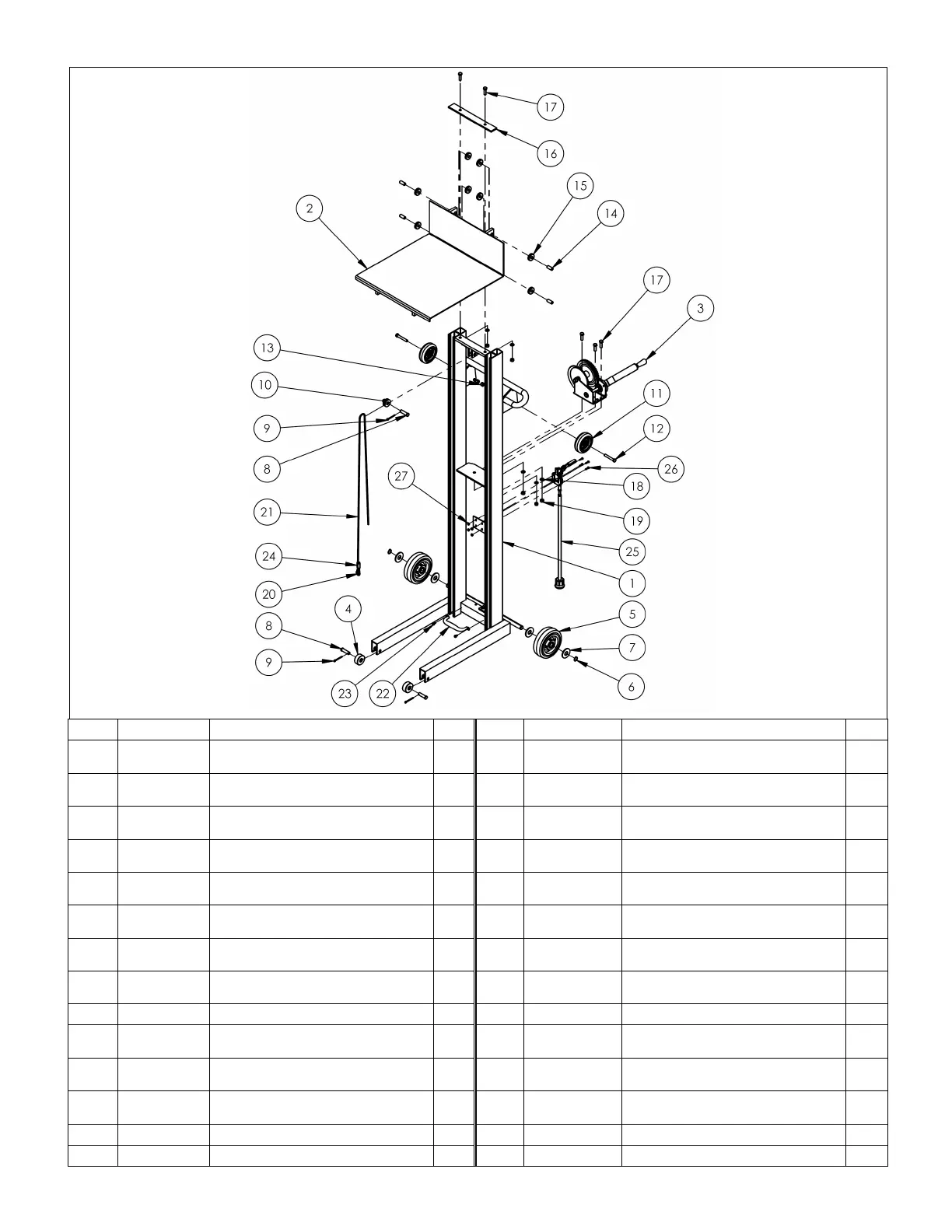

Exploded View & Bill of Materials
ALLW-2020-FWFL
42-006-028
