Table of Contents Rev. 12/9/2019 AHA MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Corp. Page 9 of 24
UU

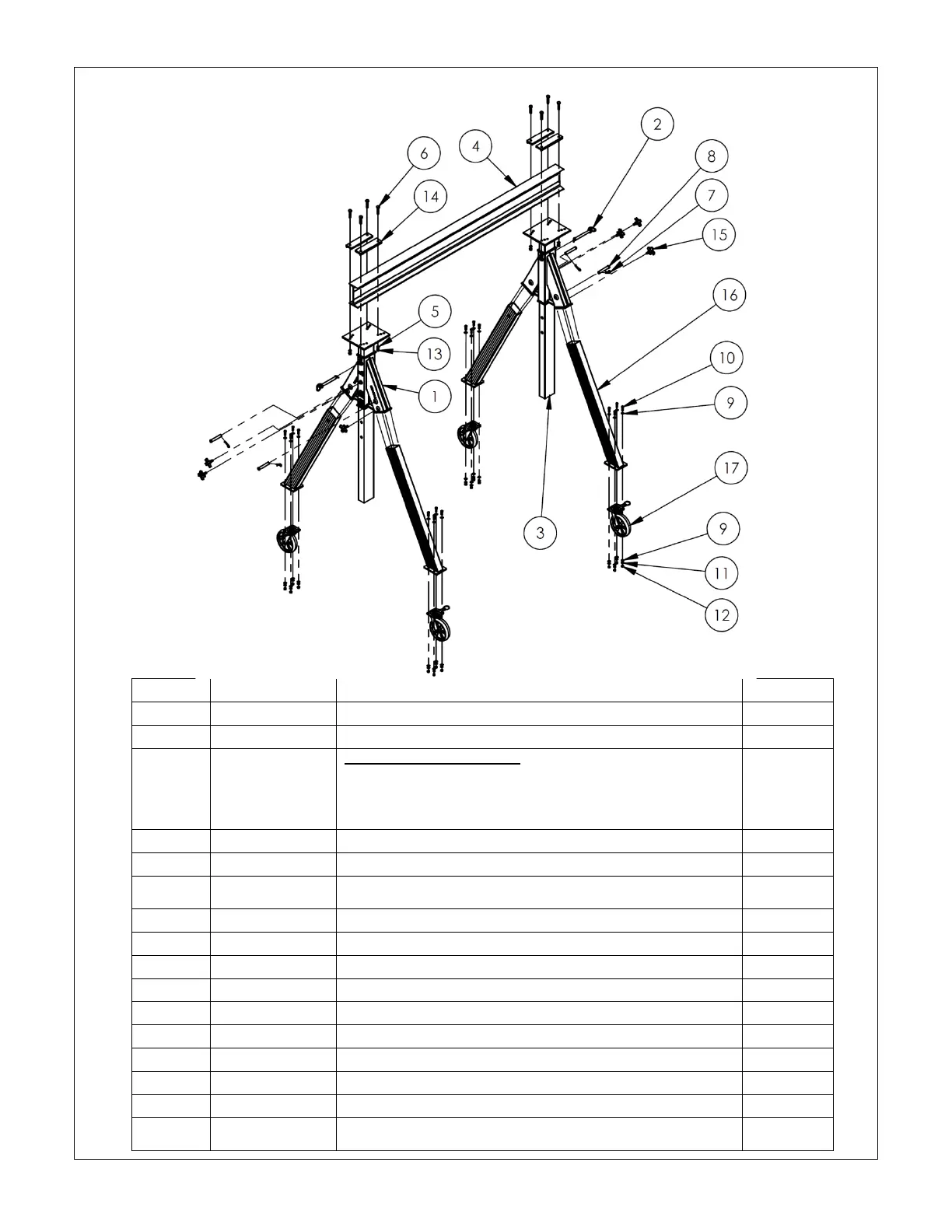

FIG. 5
UU
: Exploded view of models AHA-4-8-8, AHA-4-8-10, & AHA-4-8-12
Item Part no. Description Quantity
1 28-014-272 Aluminum 4k gantry casting 2
2 28-112-007 Retaining, pin, ¾ in. x 6 in. usable length 2
3
28-514-230
28-514-231
28-514-232
Adjustable upright weldment: (when ordering replacements,
only sold as a pair)
AHA-4-8-8
AHA-4-8-10
AHA-4-8-12
2
2
2
4 28-014-987-001 8 in. (H) x 4 in. (W) x 96 in. (L) aluminum I-beam 1
5 33626 ½ in. zinc-plated lock washer 8
6 & 13 11134585
½ in. – 13 x 2½ in.A325 galvanized structural nut & bolt combo
½ in. – 13 A325 galvanized structural nut & bolt combo
8
7 45286
1
/
8
in. x 2
5
/
8
in. #11 hitch pin clip 4
8 28-112-031 Pin, clevis, ¾ in. x 4
1
/
4
in. usable length 4
9 33082
3
/
8
in. zinc plated SAE flat washer 32
10 11107
3
/
8
in. – 16 x 1¼ HHCS #2 zinc-plated bolt 16
11 33622
3
/
8
in. zinc plated lock washer 16
12 36106
3
/
8
in. – 16 zinc plated hex nut 16
14 28-516-054 I-beam clamp weldment 4
15 08-025-007
3
/
8
in. – 16 UNC threaded knob, TT-18-PED 6
16 28-514-221 4k leg tube weldment 4
17
GFN-8/2-S-4PSL
(16-132-249)
Glass filled nylon 4-position swivel locking caster 4
