Table of Contents Rev. 12/9/2019 AHA MANUAL
Table of Contents Copyright 2019 Vestil Manufacturing Corp. Page 8 of 24
UU

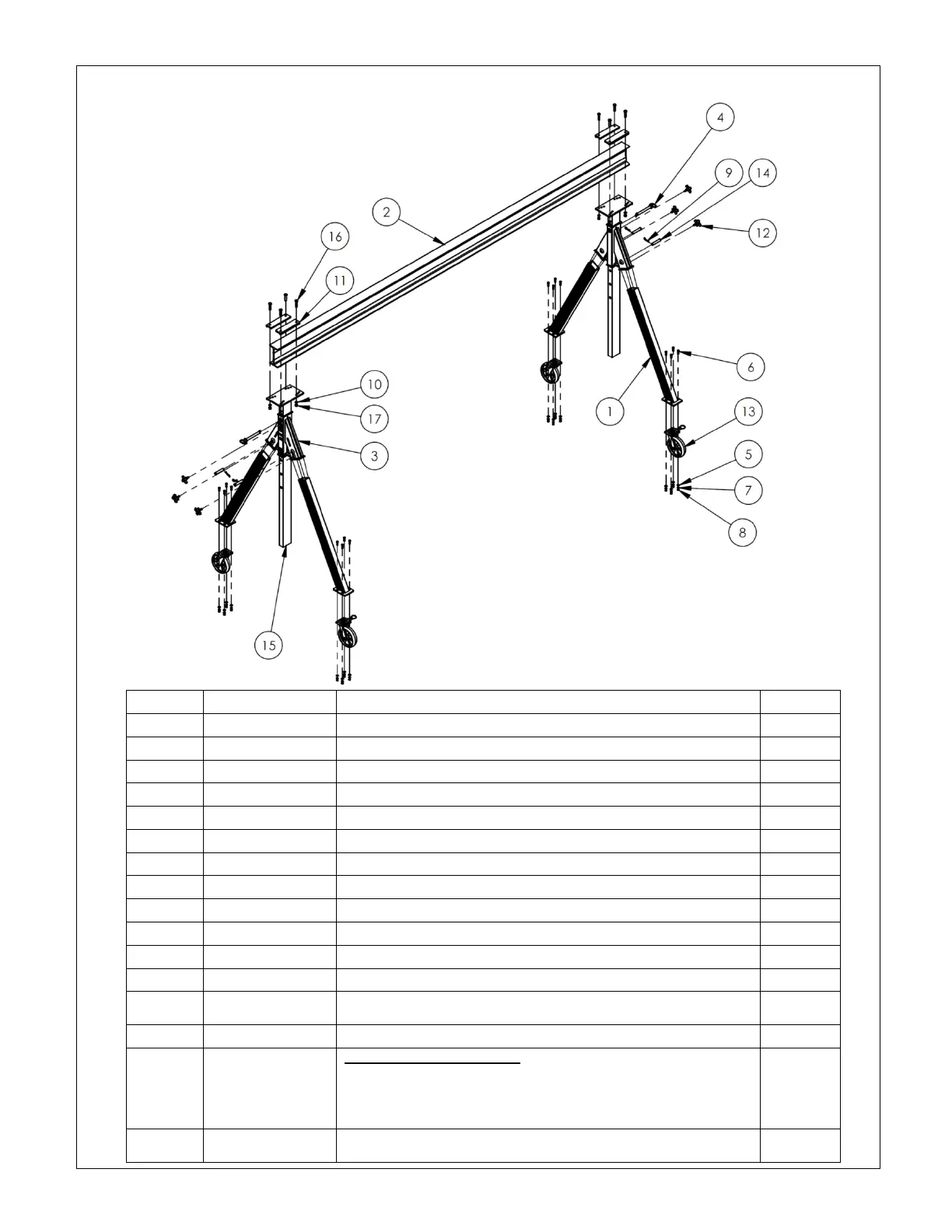

FIG. 4
UU
: Exploded view of models AHA-2-15-8, AHA-2-15-10, & AHA-2-15-12
Item
Part no.
Description
Quantity
1
28-514-220 2k leg tube weldment 4
2
28-014-988-004 8 in. (H) x 4.17 in. (W) x 180 in. (L) aluminum I-beam 1
3
28-014-190 Casting, aluminum 2k yoke 2
4
28-112-007 Retaining, pin, ¾ in. x 6 in. usable length 2
5
33082
3
/
8
in. zinc plated SAE flat washer 32
6
11107
3
/
8
in. – 16 x 1¼ HHCS #2 zinc-plated bolt 16
7
33622
3
/
8
in. zinc plated lock washer 16
8
36106
3
/
8
in. – 16 zinc plated hex nut 16
9
45286
1
/
8
in. x 2
5
/
8
in. #11 hitch pin clip 4
10
33626 ½ in. zinc-plated lock washer 8
11
28-516-054 I-beam clamp weldment 4
12
08-025-007
3
/
8
in. – 16 UNC threaded knob, TT-18-PED 6
13
GFN-8/2-S-4PSL
(16-132-249)
Glass filled nylon 4-position swivel locking caster 4
14
33-112-034
Pin, clevis, ¾ in. x 3
1
/
2
in. usable length 4
15
28-514-227
28-514-228
28-514-229
Adjustable upright weldment: (when ordering replacements, only
sold as a pair)
AHA-2-15-8
AHA-2-15-10
AHA-2-15-12
2
2
2
16 & 17
11134585
½ in. – 13 x 2½ in.A325 galvanized structural nut & bolt combo
½ in. – 13 A325 galvanized structural nut & bolt combo
8
