Table of Contents Rev. 1/29/2024 A-LIFT, MANUAL
Table of Contents Copyright 2023 Vestil Manufacturing Co. Page 10 of 15
UStep 3U: Move the lifter to a position near the intended load and lock both of the locking casters. If
necessary, enlist a coworker to help you lift, load, and unload the A-lift;
U
Step 4U: Move the load to the desired location.
UStep 5U: Return the lifter to its storage location. Engage the brakes, fold the winch handle, fully lower the
forks, and set the handle latch pin to lock the winch handle. Store the lifter in a dry location that is
protected from weather.

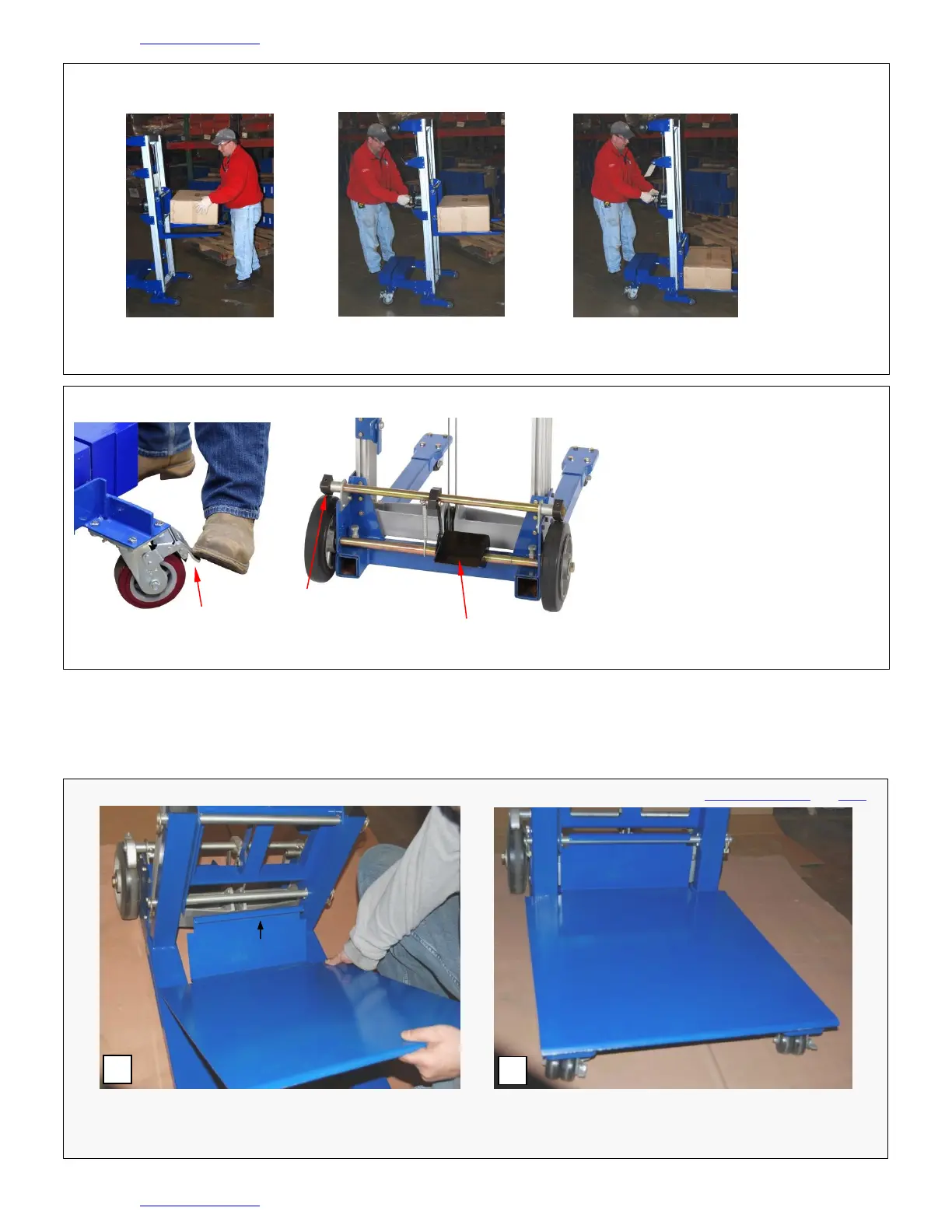

USING THE DECK PLATFORM
The forks must be attached to the carriage right-side up, as shown below and in the Parts Diagram on p. 4.
When finished using the deck, remove it and store it in a dry location.
Raise the forks to a comfortable
height by turning winch handle
clockwise.
Set the load on the forks.
The load must rest against
the back of the forks.
Lower the forks by
turning the winch
handle counter-
clockwise until the
load is a few
inches above the
adjustable leg.
Rotate the handle
clockwise 1/4 turn
to set the winch
brake.
Once at the unloading site:
Lock the casters (press
down on caster locks) or set
the brakes;
Unlock the winch handle
and turn it clockwise until
the load is positioned at a
comfortable height;
Lock the winch handle;
Remove the load.
Lower the forks until they
are a few inches above the
legs.
b
a
Slide the curved lip of the deck under the lower
carriage cross bar.
Set the lip on top of the lower carriage cross bar;
let the deck rest on top of the forks.
Brake pedal: push
forward to apply brakes.
Push down to apply
caster brake
Brake perssed
against wheel
