EN - 16
connection could damage your appliance.
If the mains cable is damaged and needs
to be replaced this should be done by a
qualified personnel.
• Do not use adaptors, multiple sockets and/
or extension leads.
• The supply cord should be kept away from
hot parts of the appliance and must not be
bent or compressed. Otherwise the cord
may be damaged, causing a short circuit.
• If the appliance is not connected to the
mains with a plug, a all-pole disconnector
(with at least 3 mm contact spacing)
must be used in order to meet the safety
regulations.
• The appliance is designed for a power
supply of 220-240 V~. If your supply is
different, contact the authorized service
personnel or qualified electrician.
• The power cable (H05VV-F) must be of
sufficent length to be connected to the
appliance.
• The fused switch must be easily accessible
once the appliance has been installed.
• Ensure all connections are adequately
tightened.
• Fix the supply cable in the cable clamp and
then close the cover.

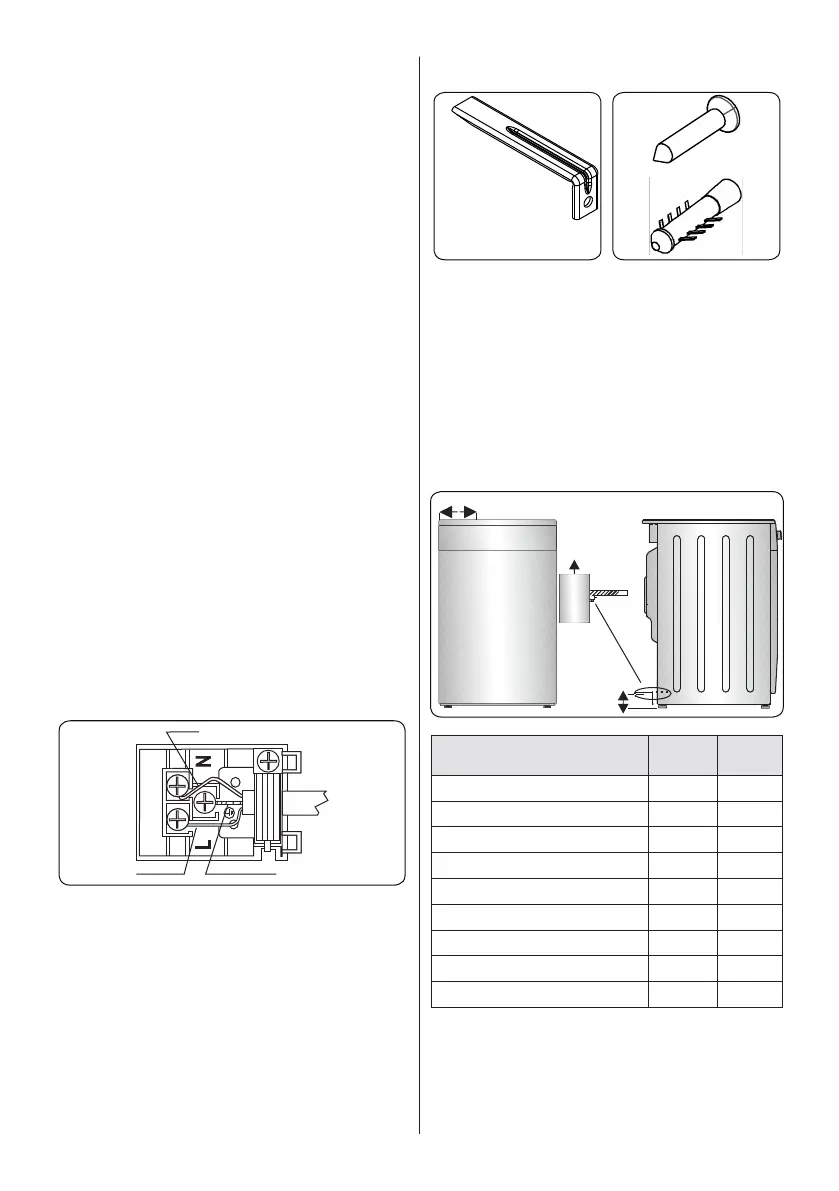

• The terminal box connection is placed on
the terminal box.
Brown
Yellow+Green
Blue
2.6 Anti-tilting kit
Anti-tilting
Bracket (x1) (will
be attached to
the wall)
wall
plug (x1)
Screw (x1)
1 2
3
The document bag contains an
anti-tilting kit. Loosely attach the anti-tilting
bracket (1) to the wall using the screw (2) and
wall plug (3), following the measurements
shown in the figure and table below. Adjust
the height of the anti-tilting bracket so that it
lines up with the slot on the cooker and tighten
the screw. Push the appliance towards the
wall making sure that the anti-tilting bracket
is inserted into the slot on the rear of the
appliance.
A
B
Anti-
tilting
bracket
Wall
Product Dimensions
(Width X Depth X Height) (Cm)
A (mm) B (mm)
60x60x90 (Double Oven) 297.5 52
50x60x90 (Double Oven) 247.5 52
90x60x85 430 107
60x60x90 309.5 112
60x60x85 309.5 64
50x60x90 247.5 112
50x60x85 247.5 64
50x50x90 247.5 112
50x50x85 247.5 64
