• When cutting in horizontal plane, position yourself at an angle as
close to 90º from cutting line as possible. Horizontal cutting requires
the operator to be focused.
• When the chain is pinched when cutting with the tip of the bar,
the saw may kickback towards operator. Because of this eect cut
with the straight part of the chain whenever possible. Then, in case
of pinching, the kickback eect changes direction away from the
operator.
• Be very careful when cutting wood when there is risk of splitting.
Pieces of wood that are cut o can be ung in any direction (risk of
body injury!).
• Only trained persons should cut tree branches! Uncontrolled fall of a
tree branch constitutes a risk of body injury!
• Do not cut with tip of the guide bar (risk of kickback).
• Always stand to the side of predicted fall line of the tree that is to
be cut.
• During a tree fell there is a risk that branches of the tree, or trees
in proximity, will break and fall. Be very careful, otherwise a body
injury may occur.
• On a sloped terrain the operator should stay on upper part of the
slope with respect to the tree being cut, never lower.
• Watch out for logs that may roll down towards you. Jump away!
• Operating saw tends to rotate when tip of the chain guide bar
touches processed material. In such case the saw may get out of
control and move towards the operator (risk of body injury!).
TO PREVENT SAW KICKBACK FOLLOW BELOW INSTRUCTIONS:
• During kickback the chain saw cannot be controlled and the chain
is loosened.
• Incorrectly sharpened chain increases risk of kickback.
• Ensure the processed material is rmly xed.
• Use clamps to x the material.
• Never cut more than one branch at a time. When cutting o, watch
out for surrounding branches.
• When cutting a tree through, watch out for nearby tree trunks.
CAUTION!
The design is assumed to be safe, protection measures and
additional safety systems are used, nevertheless there is always a
small risk of operational injuries.

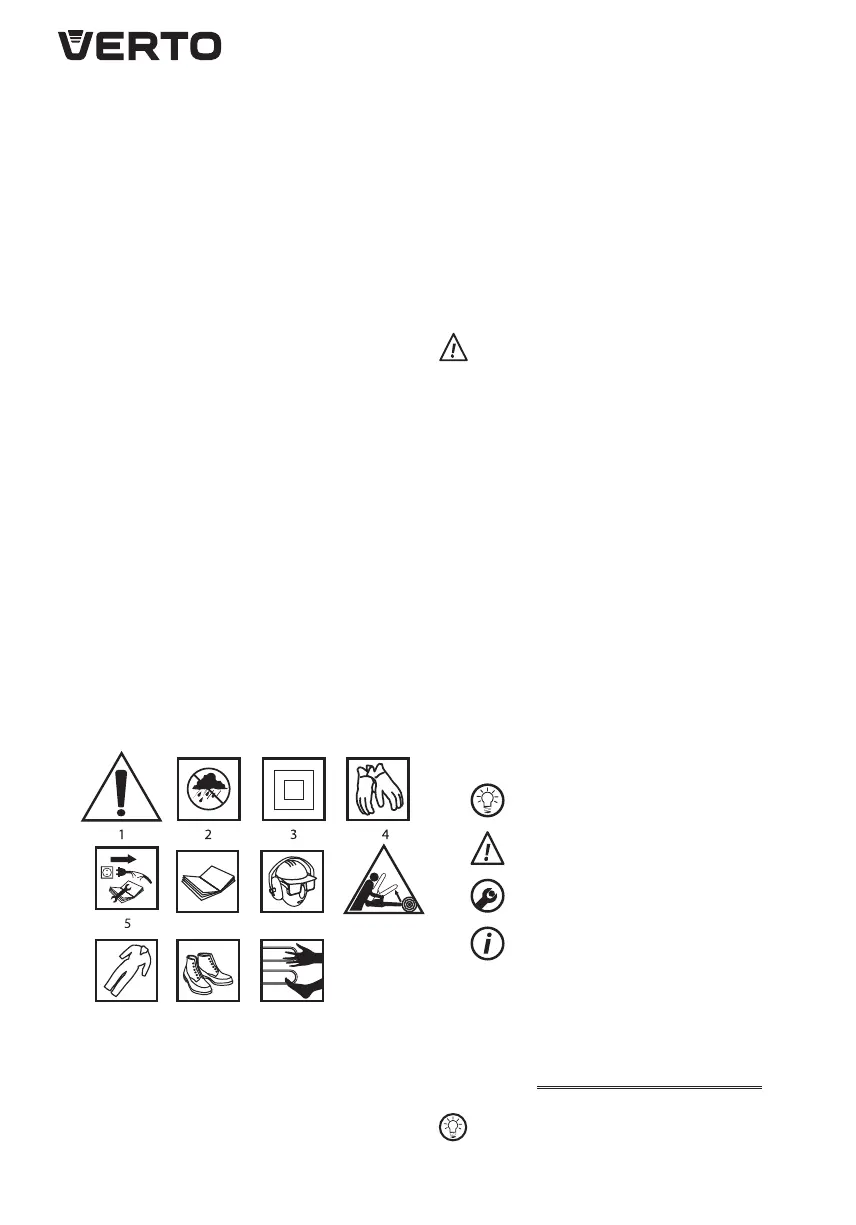

EXPLANATION OF USED SYMBOLS
6 7 8
9 10 11
1. Warning, use precaution measures.
2. Protect against humidity.
3. Protection class 2.
4. Use protective gloves.
5. Disconnect the power cord before starting maintenance or
operation.
6. Read instruction manual, observe warnings and safety
conditions therein!
7. Use personal protection measures (helmet, protective goggles,
earmu protectors).
8. Danger of kickback.
9. Use protective clothes.
10. Use protective shoes.
11. Do not put your hands or legs close to cutting parts.
CONSTRUCTION AND USE
The chain saw is a device driven by a single-phase commutator motor.
The chain saw does not require earth lead (insulation class II). Such
tools are designed for tasks in home garden. The saw can be used for
cutting down trees, cutting branches, rewood, wood for replace and
other tasks where cutting wood is necessary.
The chain saw is a tool for amateur use only.
Use the power tool according to the manufacturer’s instructions
only.
DESCRIPTION OF DRAWING PAGES
Below enumeration refers to the device elements depicted on the
drawing pages of this manual.
1. Oil ller plug
2. Front handle
3. Brake lever (front hand guard)
4. Chain tension adjustment screw
5. Protection nut
6. Guide bar cover
7. Oil level indicator
8. Power cord hook
9. Switch lock button
10. Rear handle
11. Switch
12. Bumper spike
13. Guide bar
14. Chain
15. Guide bar chain wheel
* Dierences may appear between the product and drawing.
MEANING OF SYMBOLS
CAUTION
WARNING
ASSEMBLY/SETTINGS
INFORMATION
EQUIPMENT AND ACCESSORIES
1. Guide bar - 1 pce
2. Chain - 1 pce
3. Guide bar cover - 1 pce
4. Oil tank - 1 pce
5. Spanner - 1 pce
PREPARATION FOR OPERATION
CARRYING THE CHAIN SAW
Prior to carrying the chain saw unplug the power cord from mains
socket and slide chain cover onto guide bar and chain. When carrying
the chain saw, hold it by front handle. If several cuttings are to be made,
switch o the chain saw with the switch between tasks.
