4.3 Removing and Replacing Side Panels

The rack uses dual split-side panels fashioned from sheet metal. Both panels rest on a frame member and are secured to the

frame by a slam latch. The locking latch makes the panels simple to remove and replace when installing equipment and

performing maintenance.

To remove a side panel:

1. To remove a panel, insert the key in the side-panel lock and turn clockwise to unlock it.

2. Press on the latch, lean the panel away from the frame, then lift the panel up and away from the rack and set it

aside, see Figure 4.3  below .

3. Repeat steps for other panels being removed.

NOTE: Do not remove the protective-earth bonding clip from the side panels. If the clip is missing, contact your

Vertiv™ sales representative for instruction on how to proceed.

NOTE: Do not leave the side panel off of the rack for extended periods of time. Always inspect the channel and

remove debris or contaminates before installing the side panel. The ground-bond path requires a solid metal to metal

contact between the panel clip and the enclosure rail.

To replace a side panel:

NOTE: Before replacing a side panel, Make sure there is free area and clearance to reinstall the side panel and that the

ground clip is properly engaged in side panel and frame.

1. Set the bottom of the panel onto the frame member.

2. Move the top of the panel toward the rack and slam the latch.

3. Turn the key counterclockwise until the latching mechanism engages to lock the panel in place.

4. Repeat steps for other panels being replaced.

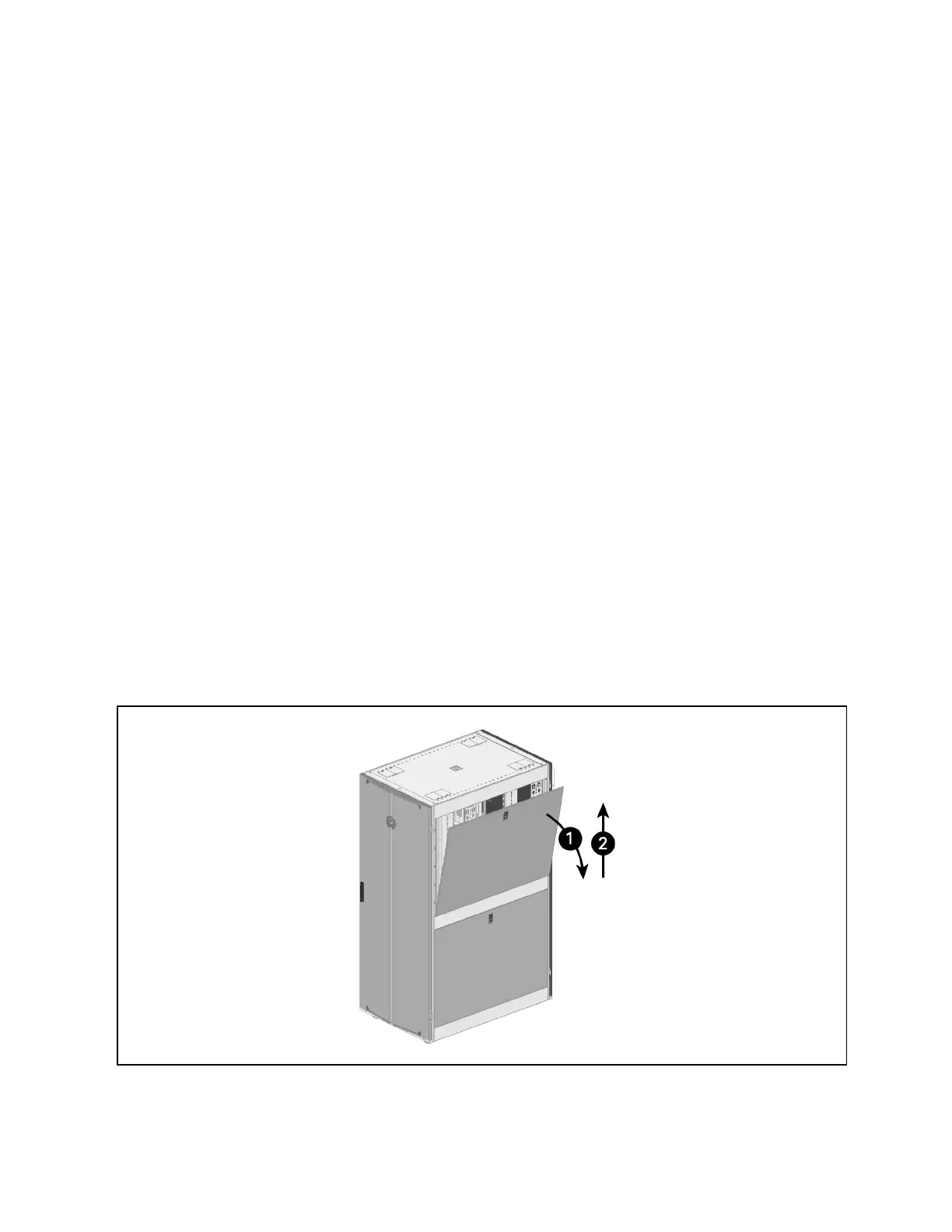

Figure 4.3 Removing side panel

4 Installation and Assembly Procedures

12

Vertiv™ VR Installer/User Guide
