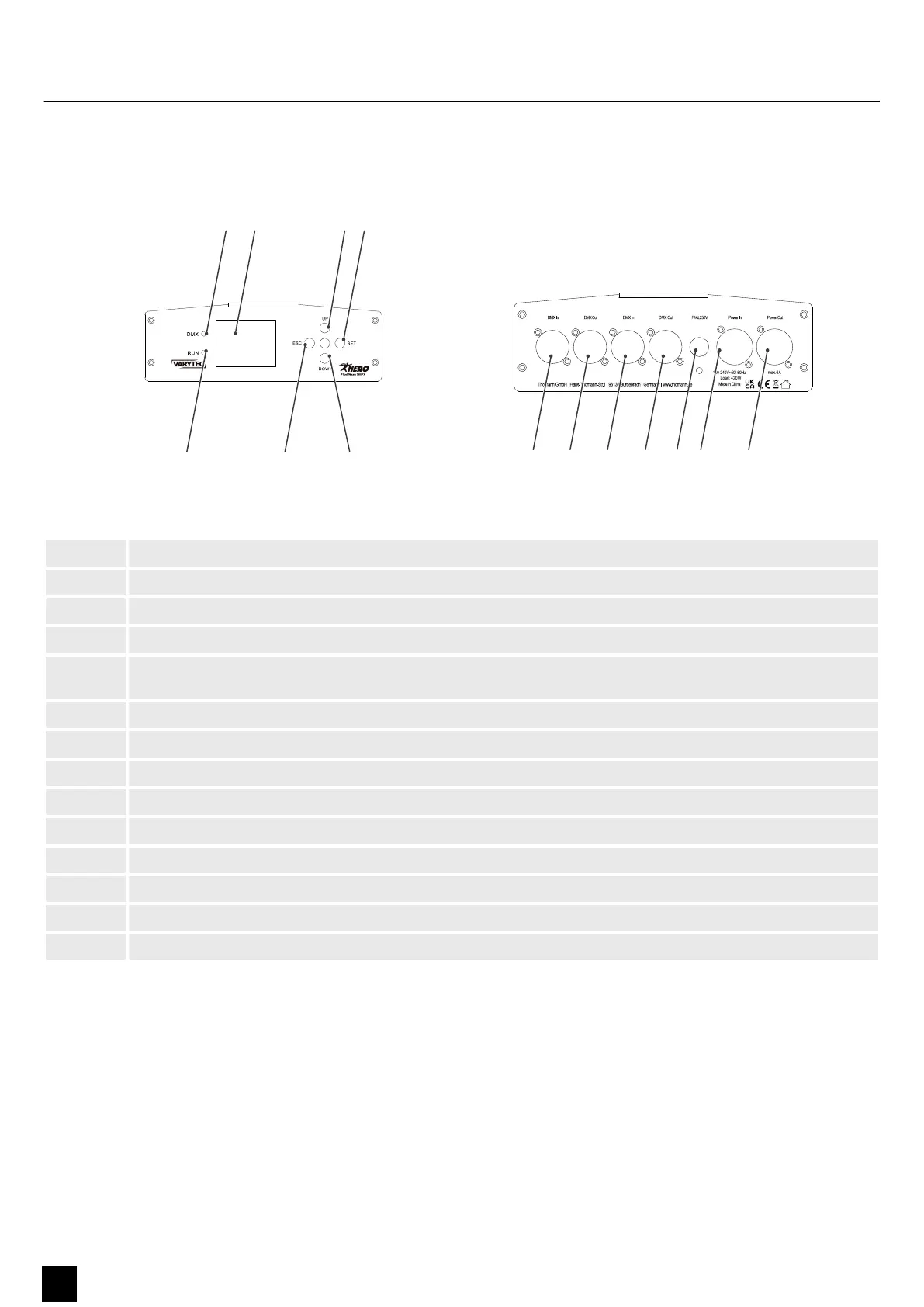

6 Connections and controls

) * + , - . /

$ &%ö

'(#

1 [DMX] | LED lights up when the unit is controlled via a DMX controller.

2 [RUN] | LED lights up when the device is in operation.

3 Display

4 [UP] | Increases the displayed value by one.

5 [SET] | Activates the main and settings menu or selects an option of the respective operating mode, conrms the

set value

6 [DOWN] | Decreases the displayed value by one.

7 [ESC] | Closes an open submenu without saving the changes.

8 [DMX In] | DMX input, designed as XLR panel plug, 3-pin

9 [DMX Out] | DMX output, designed as XLR panel socket, 3-pin

10 [DMX In] | DMX input, designed as XLR panel plug, 5-pin

11 [DMX Out] | DMX output, designed as XLR panel socket, 5-pin

12 Fuse holder

13 [Power In] | Lockable input socket (Power Twist) for mains power supply

14 [Power Out] | Lockable output socket (Power Twist) for powering a connected device

Connections and controls

Hero Pixel Wash 760FX

Moving Head
