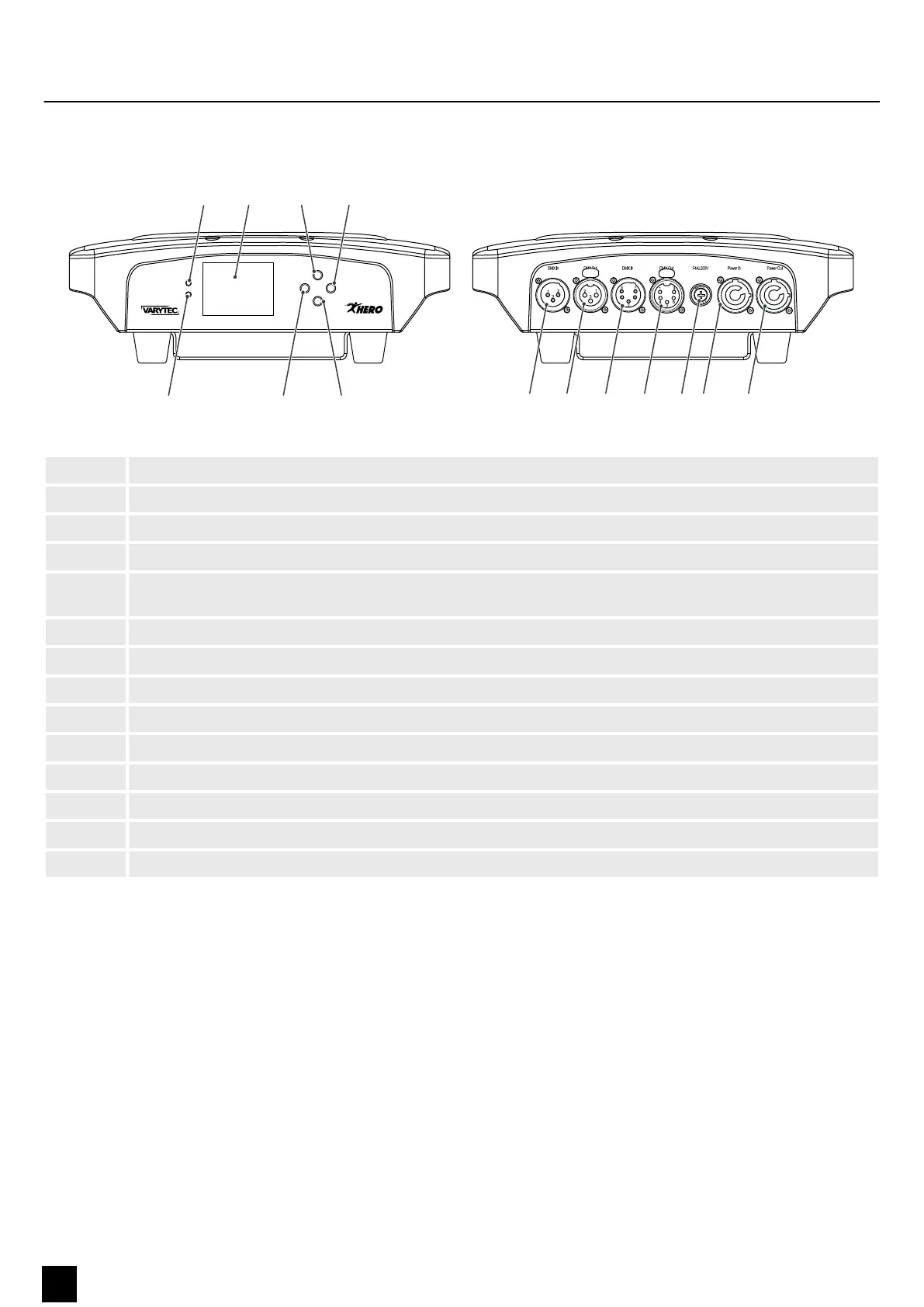

6 Connections and controls
Mirror
UP
DOWN
ESC
SET
DMX
RUN
100-240V~50/60Hz
Load: 40W
4
5
PUSH
PUSH
) * + , -. /
$ &%ö
'(#
1 [DMX] | status LED. The LED lights up as soon as a DMX signal is present.
2 [RUN] | status LED. This LED lights up once the device is operational.
3 Display
4 [UP] | increases the displayed value by one
5 [SET] | activates the main and settings menu. Selects an option of the respective operating mode, conrms the set
value.
6 [DOWN] | decreases the displayed value by one
7 [ESC] | closes an open submenu without saving any changes
8 [DMX In] | DMX input, designed as XLR panel plug, 3-pin
9 [DMX Out] | DMX output, designed as XLR panel socket, 3-pin
10 [DMX In] | DMX input, designed as XLR panel plug, 5-pin
11 [DMX Out] | DMX output, designed as XLR panel socket, 5-pin
12 Fuse holder
13 [Power In] | lockable input socket (Power Twist) for mains power supply
14 [Power Out] | lockable output socket (Power Twist) for powering a connected device
Connections and controls
12
Hero Mirror
Moving Head
