UsEr manUaL
www.Vari-LitE.com
VL800 EVEntprofiLE
7

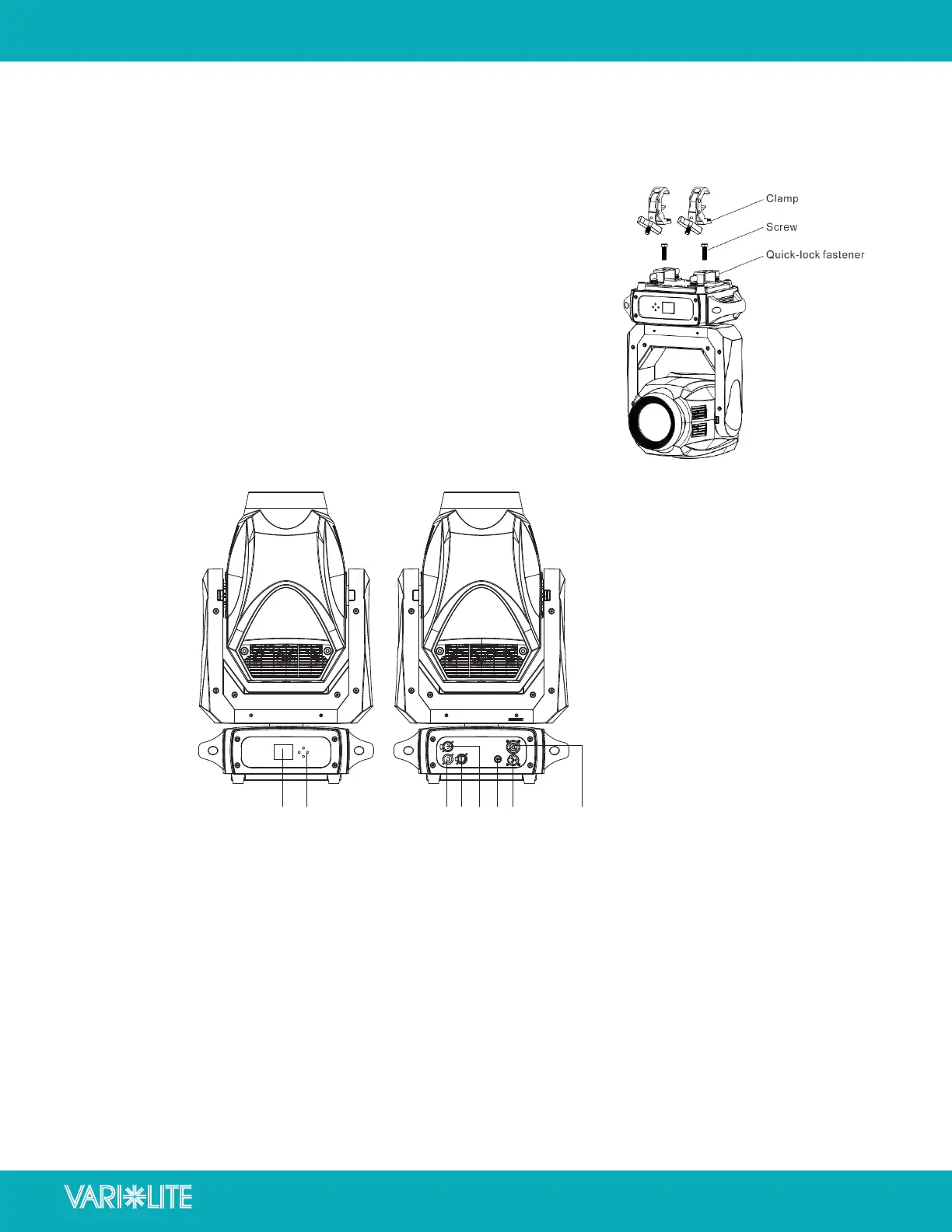

MOUNTING
The unit should be mounted via its screw holes on the bracket.
Always ensure that the unit is firmly fixed to avoid vibration and
slipping while operating. Always ensure that the structure to which
you are attaching the unit is secure and can support a weight of 10
times of the unit’s weight. Also always use a safety cable that can
hold 12 times of the weight of the unit when installing the fixture.
Use M12 screw to fasten the clamp to the Quick-lock fastener.
The equipment must be installed by professionals. And it must be
installed at a place where is out of the touch of people and has no
one pass by or under it.
2
InsTallaTIOn
1 2 3 4 5 6 7 8
1 Display. Shows menu and selected functions
2 Buttons.
MENU To select the programming functions
UP To go backward in the selected functions
DOWN To go forward in the selected functions
ENTER To confirm the selected functions
3 DMX/RDM input. Connectors for DMX 512 operation, 5-pin XLR cable to link the DMX console
4 DMX/RDM thru. Connectors for DMX 512 operation, 5-pin XLR cable to link the next unit
5 Ethernet. Transfers fixture’s information to a main controller
6 Fuse (T 10A). Protects the unit from damage of overcurrent
7 Power Input. Connects to supply power.
8 Power Thru. Connects to the next fixture.
