user manual
www.vari-lite.com
VL800 EVENTPAR RGBA
11

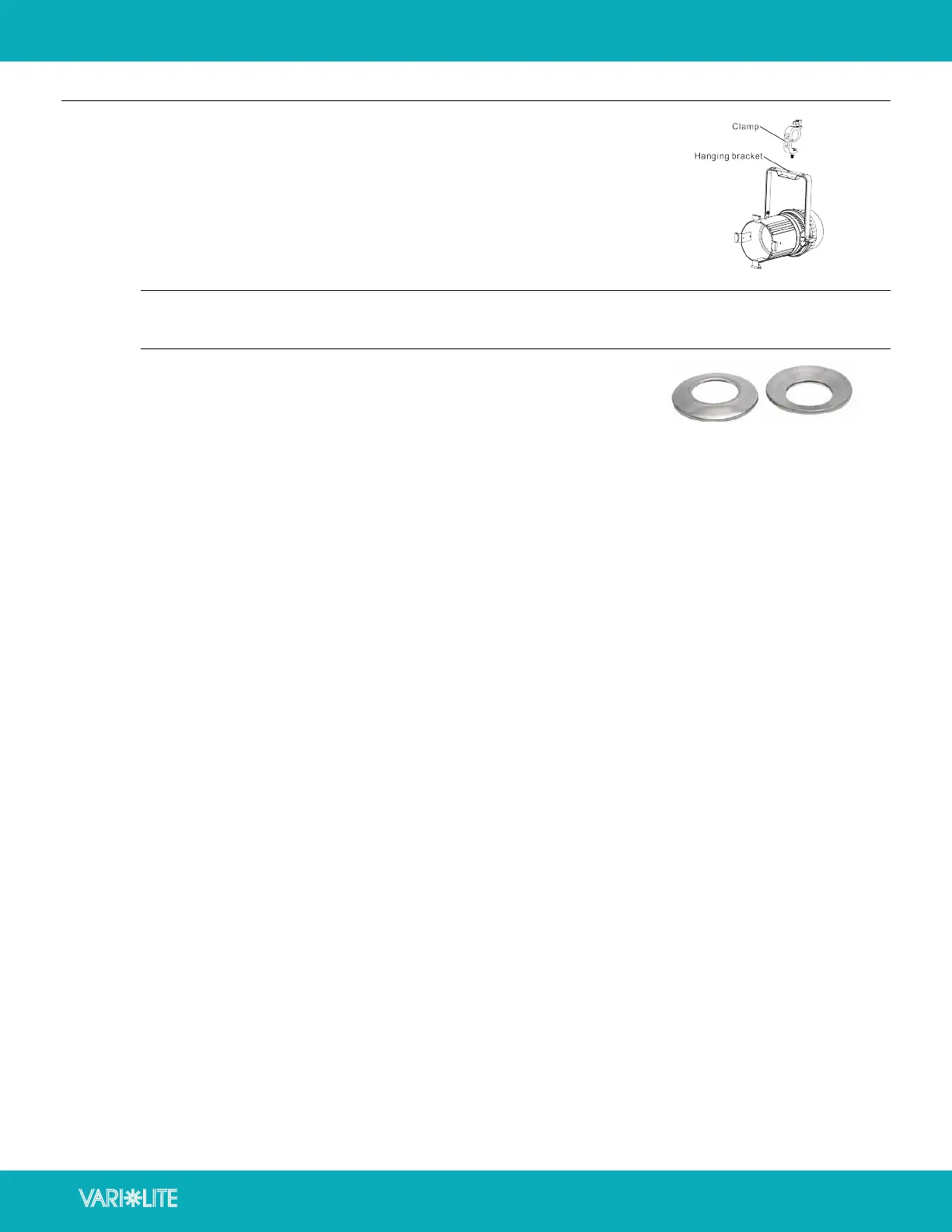

HANGING THE FIXTURE
The VL800 EVENTPAR WW can be hung horizontally or vertically from any
structure designed to work with the type of load created by this luminaire.
One mounting truss hook or other mounting hardware is required. Many
compatible truss hooks are available from dierent manufacturers for your
particular needs.
Install mounting hook:
Step 1. Install truss hook (also refer to “Truss Hook Hardware (by others)”
below) for additional information) on yoke as shown in Figure at
right..
NOTE: Various types of truss hooks can be used. The hook (as shown in the
example above) as well as many other standard hooks, can be ordered
separately.
Truss HOOK HarDWare (BY OTHers)
When installing hanging hooks, Vari-Lite strongly recommends the use
of a Belleville washer when installing a truss hook or claw. The Belleville
washer’s size should be approximately 13-25mm (0.5-1.0 in) diameter. Bel-
leville washers are available in various thicknesses and any of the following thicknesses are acceptable for the
application described: 0.9.mm, 1.0mm, 1.3mm, 1.9mm (0.035-inch, 0.043-inch, 0.050-inch, 0.073-inch).
The washer serves two purposes:
• To spread out the load. When a washer IS NOT used, the bolt head (without a washer) concentrates the
load in a smaller area, creating focused stress on the steel bracket, making premature failure possible. A
steel washer is recommended to spread this load over a larger surface area.
• To keep the bolt in place. The recommended Belleville washer maintains tension in the bolted assembly
and prevents it from vibrating loose.
If a Belleville washer is not available, a regular flat washer measuring in diameter of 25mm (1 inch) minimum can
be used in conjunction with a suitable split lock washer situated between the bolt head and flat washer.
Installing in Truss:
Step 1. Lift luminaire into mounting position.
Step 2. Secure in place with truss hook. Ensure truss hook hardware that locks hook in place (e.g. wing bolt) is
properly tightened and that luminaire is fully supported.
Step 3. Attach safety cable (as required) as follows:
a. Loop safety cable at least once around safety cable anchor point rod.
b. Loop safety cable at least once around truss/pipe and secure around pipe.
Step 4. Connect power and data cables.
FLOOR MOUNTING
All luminaires included in this manual are designed to sit directly on its yoke in a floor installation application.
Simply spread the yoke floor support and place on flat, stable surface.
