USER MANUAL
WWW.VARI-LITE.COM
VL5LED WASH
39
MENU OPERATION
WHAT IS THE MENU SYSTEM?
The menu system is a programmable set of commands used to
confi gure, address, operate, and test the luminaire. The menu
system is controlled at the Menu Display available at the enclo-
sure input panel.
CONTROLS OPERATION
The menu system is controlled by [ESC], [OK], and four
▲▼◄►Arrow buttons.
The arrows will have opposite functions if the luminaire is hung upside down in a hanging orientation due to the
automatic orientation feature. In other words, the arrow pointing downward always functions as down/decrease
and the arrow pointing upward always functions as up/increase regardless of the luminaire orientation.
DEFAULT STATE
The menu display’s default state during normal operation is to display the DMX address. After 40 seconds of
inactivity at the display, it will change to the default state.
After longer periods of inactivity, the menu display will switch to its o state. The default state for this feature is
30 seconds, however, di erent time lengths can also be programmed.
To program a di erent time length for menu o feature:
Step 1. Press [ESC] access the main menu.
Step 2. Once enabled, the menu will function as normal with only the following sub-menu sections active:
• Address
• Confi gure
• DMX
• Fixture
• Manual Control
• Test
Step 3. Press ▲▼◄► choose the “Confi gure”, and press [OK].
Step 4. Press ▲▼◄► choose the “Display”, and press [OK].
Step 5. Press ▲▼◄► choose the “On Time”, and press [OK].
Step 6. Press ▲▼◄► choose “30 Sec”, “5 Min”, “10 Min”, “On” when you need.
MENU FUNCTIONS
For easy reference, each possible menu item is listed alphabetically in the fi rst column by its display abbre-
viation. The second column follows with a defi nition of the abbreviation and then a third column provides an
explanation of its purpose and function.

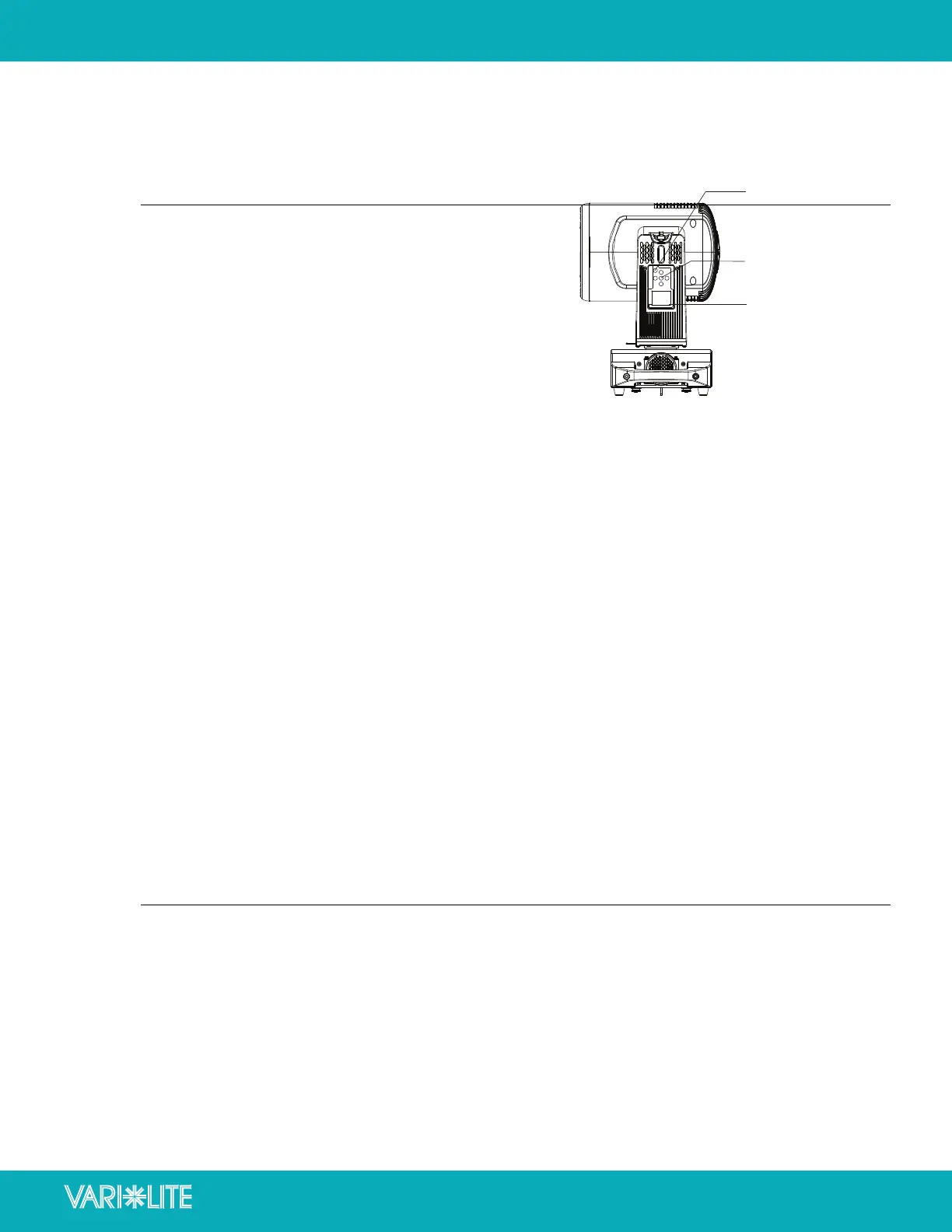

LCD Display. Displays
all data and luminaire
settings.
[OK] Button. To select
or change a setting or
data value
[ESC] Button. Used to
access main menu
parameters, exit, or return
to previous menu item.
5 MENU SYSTEM
