user manual
www.vari-lite.com
VL3600 PROFILE IP
22

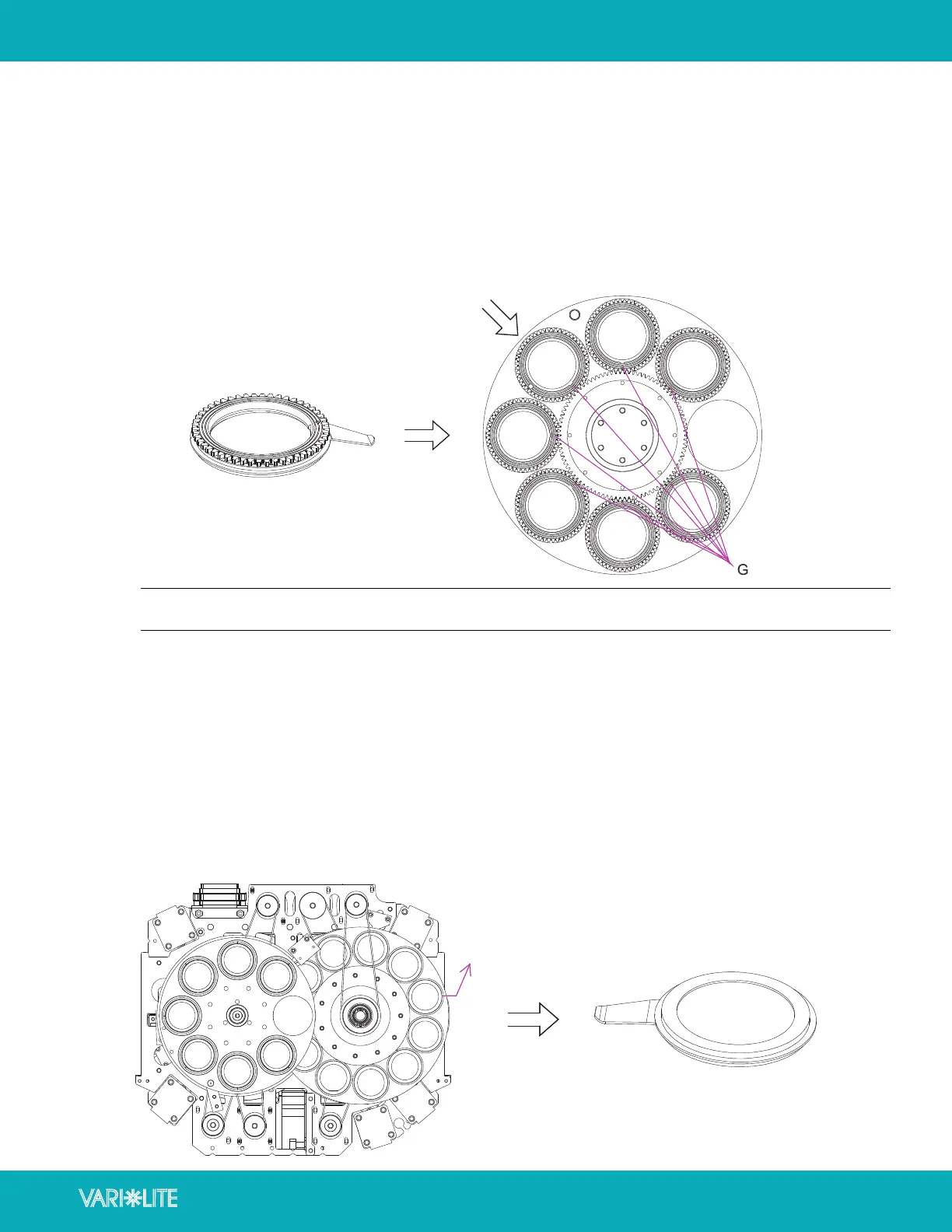

Step 9. Insert the gobo holder back into the rotating gobo wheel ensuring the timing mark on the gobo carri-
er aligns with the timing mark on the sun gear.
Step 10. Replace the gobo wheel on the bulkhead and re-install in fixture. Follow instructions on replacing the
covers.
Step 11. Power and test.
REPLACE A FIXED GOBO
Position 5
Requires
Carrier
w/Magnet
NOTE: Position 5 carrier requires a magnet to calibrate the gobo index/rotation. Always ensure the carrier in
that position has a magnet installed.
to replace a fixed gobo (see below):
Step 1. Remove power from luminaire.
Step 2. Remove top and bottom covers as described above.
Step 3. Remove the gobo/color assembly as described above.
Step 4. Gently lift the fixed gobo carrier you wish to remove from the edge of the gobo wheel and slowly pull
it out.
Step 5. Remove the Spring at C with an appropriate tool like tweezers. There is some silicon RTV holding the
gobo/spring into the carrier, carefully remove it before removing the spring to avoid damage to the
gobo.
