user manual
www.vari-lite.com
VL3600 PROFILE IP
21

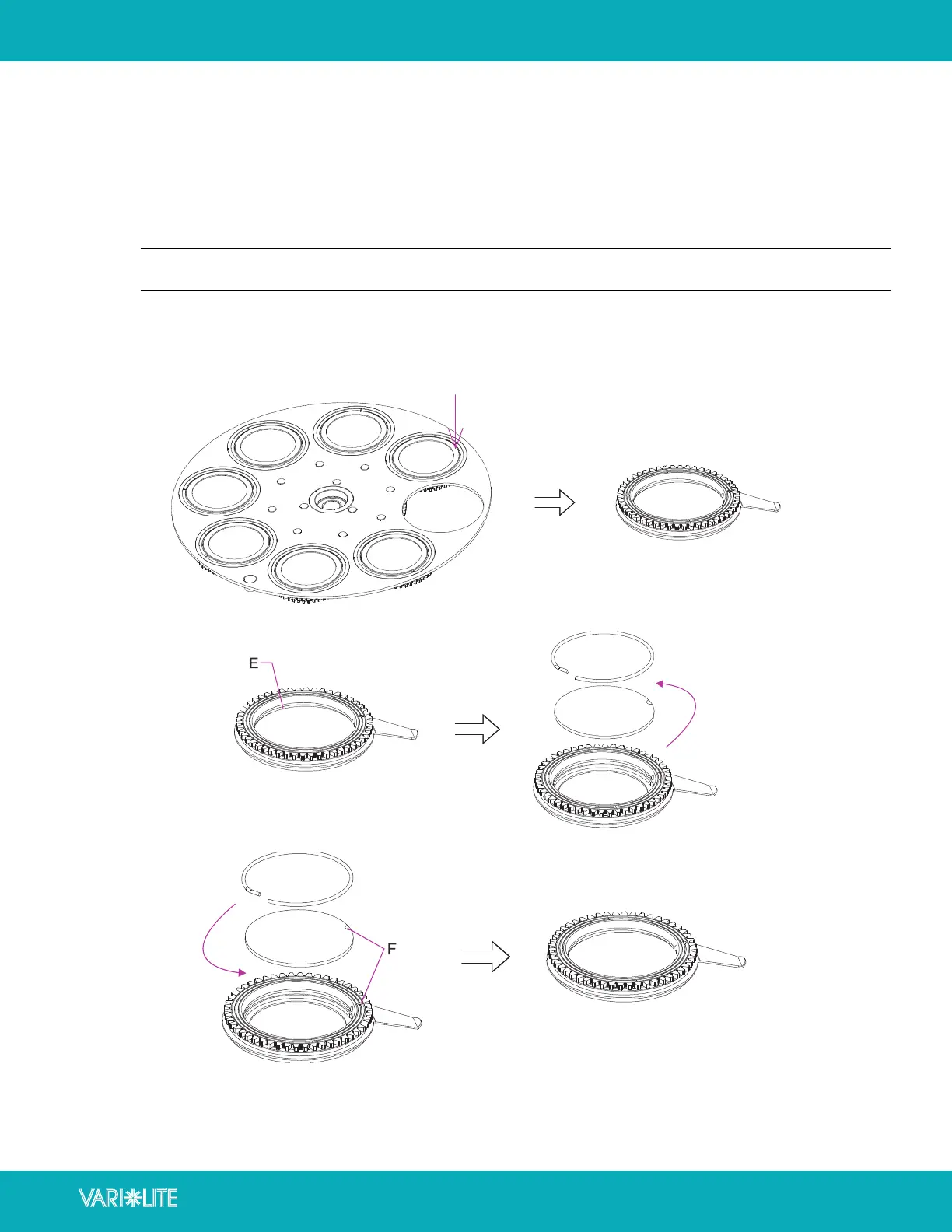

Step 6. Remove the Spring at E with an appropriate tool like tweezers. There is some silicon RTV holding the
gobo/spring into the carrier, carefully remove it before removing the spring to avoid damage to the
gobo.
Step 7. Do not touch the surface of the gobo with bare fingers (wear gloves). Put the gobo and the spring
back into the carrier, aligning the mark on the gobo with the mark on the carrier as shown in F. The
coated side should face upwards. Apply a small amount of silicon RTV to hold the gobo in place.
Step 8. Ensure the sun gear on the gobo wheel is oriented so that all 7 timing marks on the sun gear align
with the timing marks on the gobos (G below). If they do not, turn the sun gear until all gobos are
aligned.
Note: Take care when removing wheels as there are spacers present. Ensure you keep track of these and re-
place in the proper orientation/position.
