RGBW Full Mode 27
SL NITRO 510C LED STROBE Luminaire
Installation & User’s Manual
Sh wline

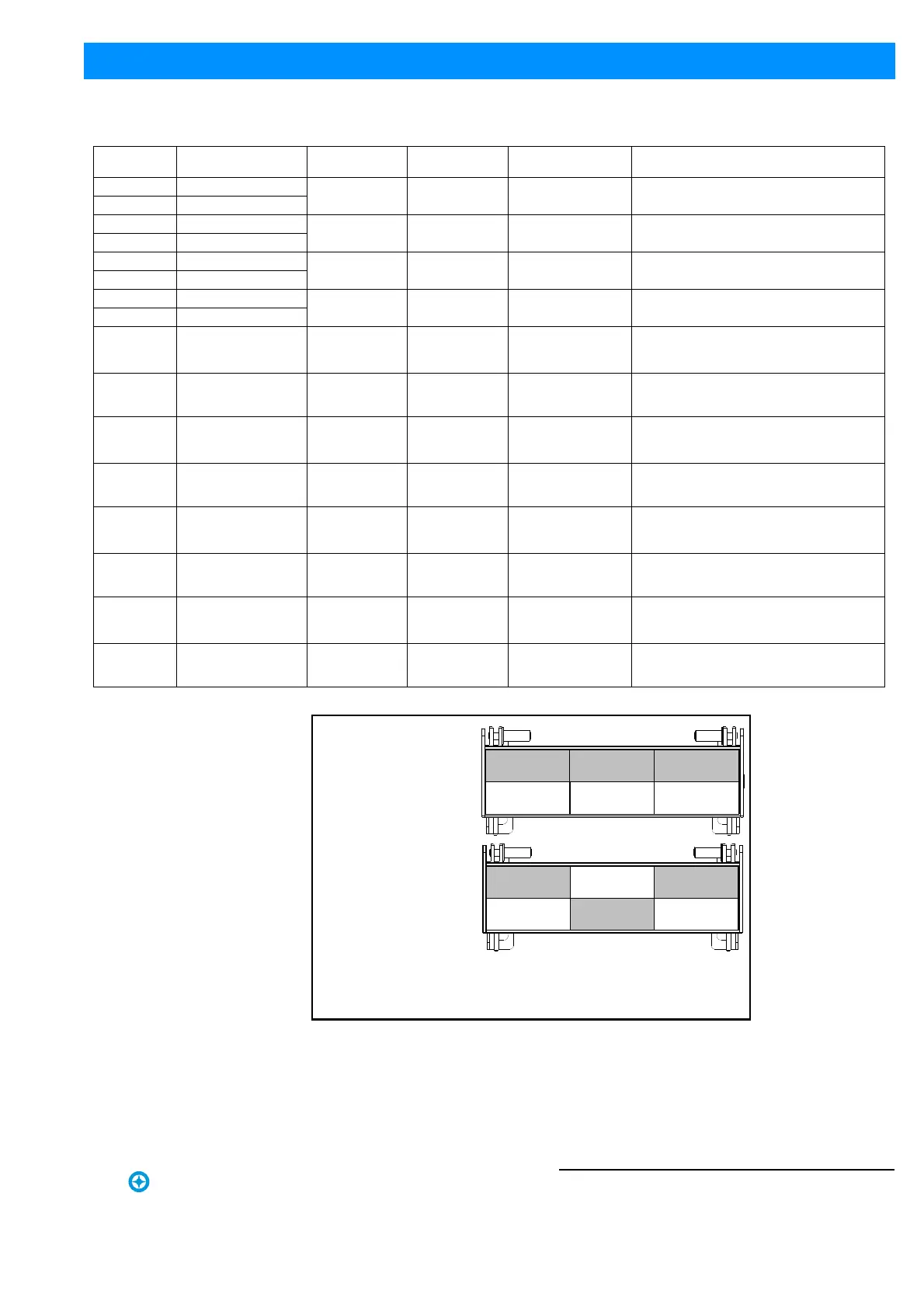

Figure 16: Linear & Checker Pattern
8 Zone 1 - 6 Intensity 0 - 255 0 - 100% 0
8-bit control for the intensity of the Zones - 0 to
255 (full)
9 Red 1 - 6 - High
0 - 65535 0 - 100% 0 16-bit control of Red LEDs from 0 to full
10 Red 1 - 6 - Low
11 Green 1 - 6 - High
0 - 65535 0 - 100% 0 16-bit control of Green LEDs from 0 to full
12 Green 1 - 6 - Low
13 Blue 1 - 6 - High
0 - 65535 0 - 100% 0 16-bit control of Blue LEDs from 0 to full
14 Blue 1 - 6 - Low
15 White 1 - 6 - High
0 - 65535 0 - 100% 0 16-bit control of White LEDs from 0 to full
16 White 1 - 6 - Low
17
Zone 1 - 6
Red Strobe Duration
0 - 255 0 - 100% 0
Controls strobe duration of Red LEDs only. Refer
to "Strobe Duration DMX Timing Detail" on page
47.
18
Zone 1 - 6
Red Strobe Rate
0 - 255 0 - 100% 0
Controls strobe rate operation of Red LEDs only.
Refer to "Strobe Rate DMX Timing Detail" on
page 46.
19
Zone 1 - 6
Green Strobe Duration
0 - 255 0 - 100% 0
Controls strobe duration of Green LEDs only.
Refer to "Strobe Duration DMX Timing Detail" on
page 47.
20
Zone 1 - 6
Green Strobe Rate
0 - 255 0 - 100% 0
Controls strobe rate operation of Green LEDs
only. Refer to "Strobe Rate DMX Timing Detail"
on page 46.
21
Zone 1 - 6
Blue Strobe Duration
0 - 255 0 - 100% 0
Controls strobe duration of Blue LEDs only.
Refer to "Strobe Duration DMX Timing Detail" on
page 47.
22
Zone 1 - 6
Blue Strobe Rate
0 - 255 0 - 100% 0
Controls strobe rate operation of Blue LEDs only.
Refer to "Strobe Rate DMX Timing Detail" on
page 46.
23
Zone 1 - 6
White Strobe Duration
0 - 255 0 - 100% 0
Controls strobe duration of White LEDs only.
Refer to "Strobe Duration DMX Timing Detail" on
page 47.
24
Zone 1 - 6
White Strobe Rate
0 - 255 0 - 100% 0
Controls strobe rate operation of White LEDs
only. Refer to "Strobe Rate DMX Timing Detail"
on page 46.
Table 11: DMX Channel Mapping (RGBW Full Mode)
Zone 1 Zone 2 Zone 3
Zone 4 Zone 5 Zone 6
Top of Luminaire
Bottom of Luminaire
Front of Luminaire
Note, this is a graphical representation for reference purposes only.
Linear Pattern
Zone 1 Zone 2 Zone 3
Zone 4 Zone 5 Zone 6
Top of Luminaire
Bottom of Luminaire
Front of Luminaire
Checker Pattern
