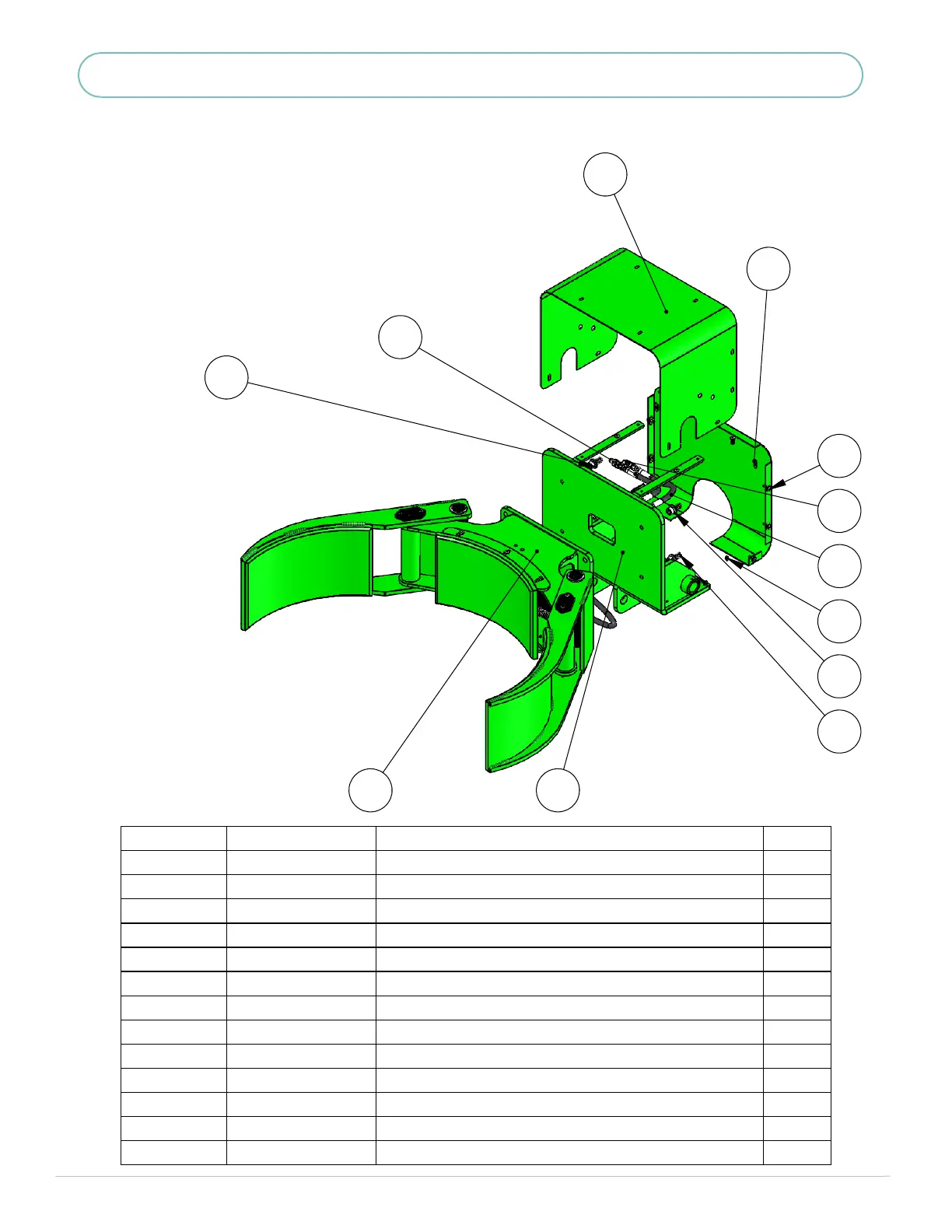

F69007A7 VERSA-CLAMP/TILT ASSY
Exploded View and Bill of Materials
THE HOSE HAS BEEN MANUALLY ENTERED INTO THIS BOM
BECAUSE THE HOSES ARE EXCLUDED FROM THE BOM IN
THE MODEL TO MAKE THE BILL WORK EASIER TO DO.
ITEM NO.
PART NUMBER
DESCRIPTION
QTY.
1
F69004A4
VERSA PIVOT WLDMT
1
2
Z84897A3
FTG STR 2700-4-4-LN
2
3
Z11550A9
S-BHCS 1/4-20X1-1/4 ZINC
2
4
Z10627A7
ZERK-GREASE .188 DRIVE
2
5
Z11572A7
S-BHCS 1/4-20X3/4 ZINC
10
6
F60559A0
UG-JAW ASSY 18-28 MAXI
1
7
Z10216A8
WASHER-1/2 LOCK MD
4
8
Z10331A8
WASHER-1/2 FLAT SAE
4
9
Z11555A0
S-SHC 1/2-13X1-1/4
4
10
F69003A3
VERSA BACK COVER WLDMT
1
11
F51728
VERSA COVER
1
12
F61318A1
HOSE-11.00/613
1
13
F61310A9
HOSE-13.00/613
1
20
VERSA II-2K# SP, CLAMP & TILT
