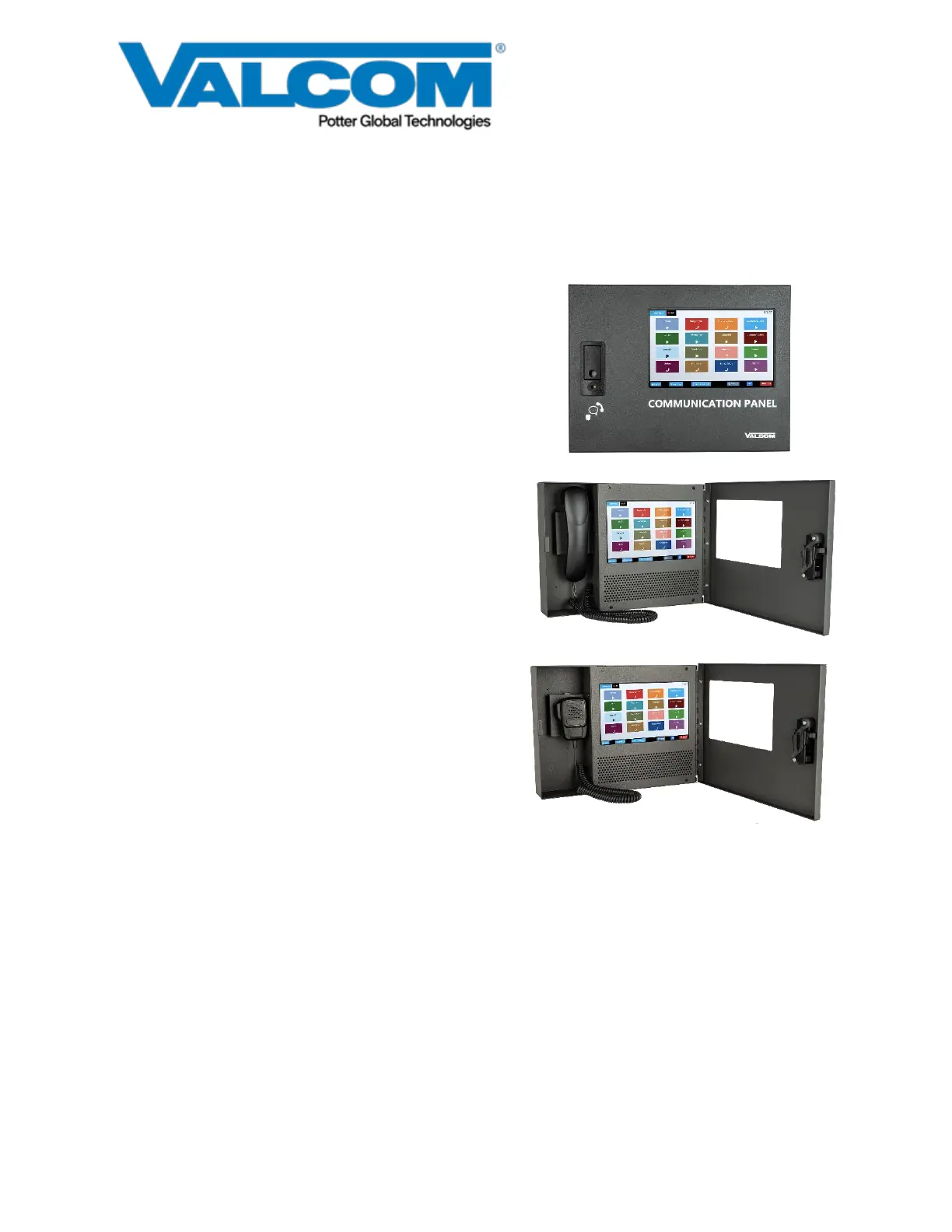

1 9471023
Issue 1
IP Communication Panels
VIP-TCHH & VIP-TCHC
INTRODUCTION
The VIP-TCH Communication Panels are
innovative touchscreen appliances that send live
voice, pre-recorded audio, and uploaded audio file
announcements to Valcom IP Multicast Page
Groups, IP speakers or horns, and VIP Page
Controllers. The VIP-TCH can also initiate and
receive intercom calls to or from Valcom IP
talkback-enabled endpoints or SIP telephones. The
Communication Panel can receive and play paging
announcements via its built-in speaker from other
Valcom IP gateways. The VIP-TCHH model is
equipped with a handset; the VIP-TCHC is
equipped with a handheld microphone with push-
to-talk button.
Applications
• Emergency Alert Terminal
• Public Address / Paging Console
• Intercom Answering Station
SPECIFICATIONS
Access Methods
• Touchscreen activation of announcements
• SIP protocol phone calls
• Valcom Page Controller
• Valcom Multicast Page Group
Features
• Wall-mounted interactive IP device with 10.1”
color touch screen display, loudspeaker, and
handheld microphone (VIP-TCHC) or handset
(VIP-TCHH)
• Lockable front cover
• Send pre-recorded audio files at the push of a
button
• Sends voice pages, either “Live” or Record &
Send for feedback elimination
• Makes/receives bidirectional voice calls to Valcom
IP and SIP endpoints
• Receives audio pages
• Simple configuration via web browser interface
• Power over Ethernet Plus (PoE+), or external 12
Vdc power adapter (not included)
VIP-TCHH
VIP-TCHC
Dimensions/Weight
Product:
• 15.4" W x 11.4" H x 2.8” D
(39.1cm W x 29.0cm H x 7.1cm D)
• 6.2 lbs. (2.8 kg)
Nominal Power Requirements
Power over Ethernet Plus (PoE+):
IEEE 802.3at compliant switch or injector
External via barrel connector:
Voltage: 12 Vdc
Current: 2A
(External Power Supply not included)
