1 9471012
Issue 2

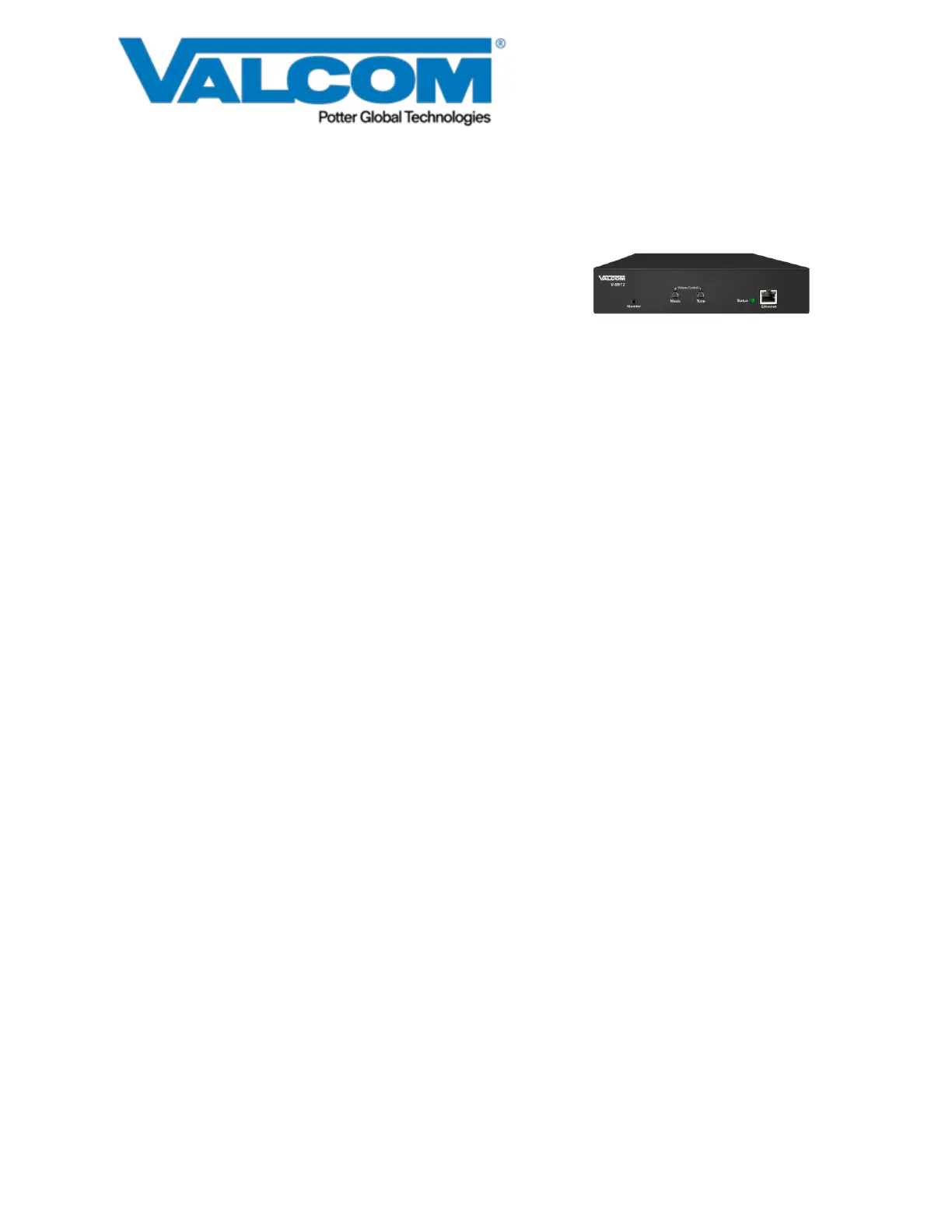

ezIP PAGE CONTROLLER
EZ-PC3, EZ-PC6
INTRODUCTION
The ezIP Page Controller is a three or six zone hybrid
analog one-way page controller, combining analog paging
zones with IP capabilities to bridge the analog and IP
worlds. The EZ-PC3 Page Controller has three one-way
zones enabled, with three more zones available by
license purchase. The EZ-PC6 Page Controller has six
one-way zones enabled without additional purchase.
Both the 3-zone and 6-zone models can be upgraded to
Talkback capability with license purchase.
SPECIFICATIONS
Access Methods
• FXS extension
• PABX station extension
• PABX loop start trunk port
• Standard telephone
• SIP (Session Initiation Protocol)
Electrical Specifications
FXO Input
Ring Detect Voltage 13.5V Min
REN 0.2
FXS Input
DC Open Circuit Voltage -48V Nominal
DC Feed Circuit 45mA Max
DC Differential Output Resistance 60-640 Ohms
Ringing Amplitude (nominal, open circuit) 108V peak
Ring Frequency 20Hz
Audio Sense Release: Programmable, 0-600 Seconds
Time Out Release: Programmable, 0-3600 Seconds
Zone Outputs
Impedance: Min. 8 Ohms
Page Level: -10dBm to 0dBm
Music Level: -17dBm to 0dBm
Music Input Impedance: 10k Ohms
-23dBm to 0dBm
Answer Verification Tone: User Programmable
Form A Contacts: 24Vdc, 1.0 Amp
Nominal Power Requirements
Via rear panel screw terminals: 24Vdc, 1 Amp
Via 802.3af PoE Ethernet Switch: Class 3 Class 3
These products are intended for use with a UL Listed
power source marked “Class 2” or “LPS” rated 24VDC.
All interconnected ITE are intended for intra-building.
Features
• Supports Valcom 45 Ohm, 25 Volt or Self-Amplified
speakers
• Use with SIP (Session Initiation Protocol) VoIP PBX
• Multiple units may be connected over the network for
expanded paging zones
• Background music input; music mutes during page
• Security code option to restrict page access
• Store & Play feedback eliminator option
• Multiple disconnect options
• Page verification tone
• Customizable page alert tone
• Scheduler for tone output on a timed basis
The following features can be enabled with additional
license purchase:
• Full compatibility with standard Valcom IP endpoints,
including two-way communication with directly
attached or IP talkback speakers
• SIP expanded to 4 extensions, with Night Ring and
Store & Play on all lines
Dimensions/Weight
Single unit:
8.13” W x 10.75” D x 1.72” H
(20.7cm W x 27.3cm D x 4.4cm H)
Weight 2.0 lbs (0.91 kg)
Two units mounted for 19” Rack:
19.0” W x 10.75” D x 1.72” H
(48.3cm W x 27.3cm D x 4.4cm H)
Weight 4.1 lbs (2.31 kg)
Environment
Temperature: 0 to +50°C
Humidity: 0 to 80% (non-precipitating)
