W/BL
BL/W
T
R
BR/W
BL/BK
Inhibit
Ground
Connecting Block
Tel Sys Trunk Port
(Loop Start or
Ground Start)
T
R
A A1
5.1K ohm

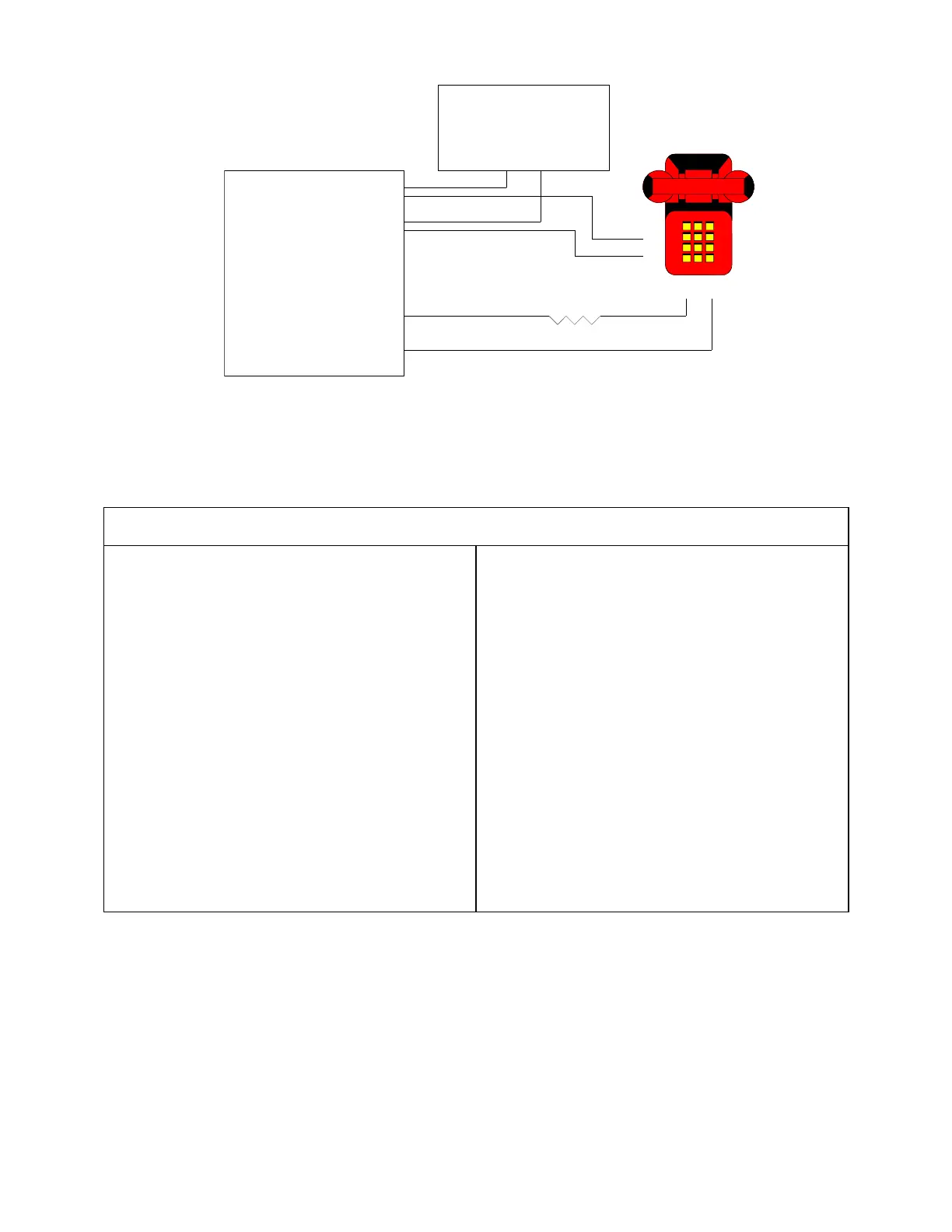

CONNECTIONS FOR INHIBIT OPTION
TABLE 1 - TROUBLESHOOTING CHART
SYMPTOMS
SOLUTIONS
1. No output to speakers
A. Monitor for the presence of audio on the page
outputs of the V-2003A/V-2003AHF during a
page using a butt set. Refer to connection
information.
B. Check AC line fuse on V-2003A/V-2003AHF.
C. Check dip switch settings and perform a power
down reset.
D. Verify all other switch settings.
2. No music output
A. Monitor for the presence of music audio on the
music input terminals using a Butt Set.
B. Check music input connector pins on the
V-2003A/V-2003AHF 66 connection block for
proper termination.
C. Check dip switch settings and perform a power
down reset.
3. Programmed feature not functioning
A. Check dip switch settings.
B. Reprogram zone, then perform a power down
reset.
