ezIP 1 ZONE AUDIO GATEWAY
EZ-GW1W, EZ-GW1R
INTRODUCTION
The EZ-GW1W and EZ-GW1R ezIP 1 Zone Audio
Gateways enable voice access to a single zone of
one-way paging over an IP-based network. This
allows page zone extension anywhere on the
network. The EZ-GW1W is designed for wall or
table placement. The EZ-GW1R is designed for 19”
mounting (1U).
SPECIFICATIONS
Features
• Compatible with Valcom ezIP Protocol
• Upgradable to full Valcom IP capability
• 1 Audio Input
• 2 Audio Outputs
• 2 Form C Relays
• 1 Contact Closure Input
• RJ-45 jack for network connection
• Front panel activity LED
• Provides audio for up to 40 Valcom one-way
amplified speaker assemblies
• AUX audio input via RCA jack
• Contact closure or VOX operation of audio input
• Removable screw terminal connectors provided
for audio and relay interface
• AUX input music mutes during page
• Output control contact closure provided during
paging output
• Compatible with 25 or 70 Volt amplifiers
• Barrel jack for optional DC power
• Power over Ethernet 802.3af Compatible
Dimensions/Weight (EZ-GW1W)
• 1.38 H x 6.13" W x 5.25" D
(3.50cm H x 15.6cm W x 13.33cm D)
• Weight: 1.25 lbs. (0.57 kg)
Dimensions/Weight (EZ-GW1R)
• 1 Standard 19” Rack Unit
• 1.75” H x 16.50” W x 5.25” D
(4.45 cm x 41.91 cm x 13.33 cm)
• Weight: 5.10 lbs. (2.32 kg)

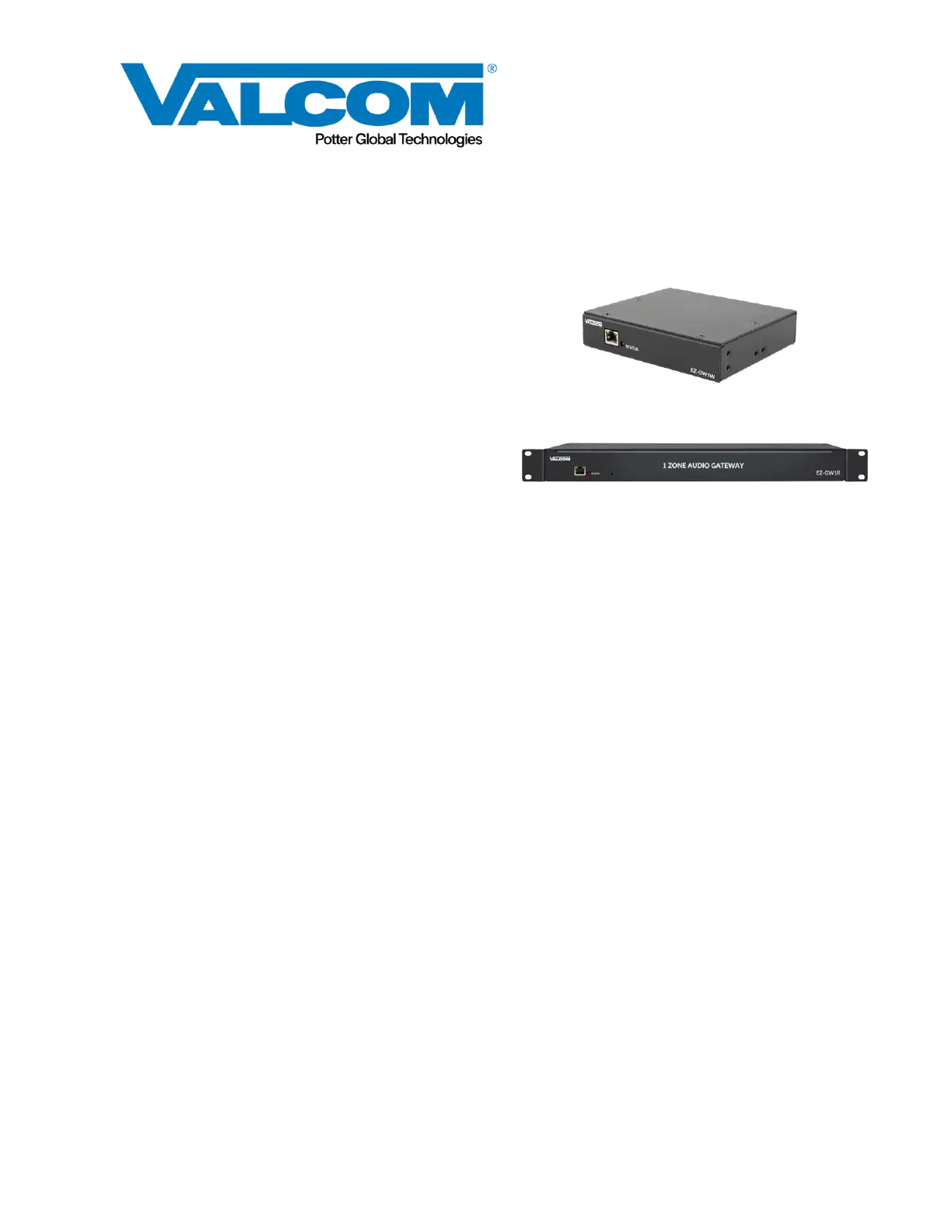

EZ-GW1W
EZ-GW1R
Nominal Specifications
Input Impedance: 600 Ohms
Input Level: -10dBm nominal
Voice Switch Sensitivity: -21dBm
Music Source Input Impedance: 8 to 600 Ohms
Music Input Level: -10dBm nominal
Output Impedance: 50 Ohms
Output Level: - 10dBm nominal
Relay Current: 1 Amp @ 24Vdc
Nominal Power Requirements
Via rear panel barrel connector:
Voltage: 24Vdc
Current: 325mA
Via 802.3af PoE Ethernet Switch:
802.3af: Class 3
Environment
Temperature: 0 to +40° C
Humidity: 0 to 85% non-precipitating
