27

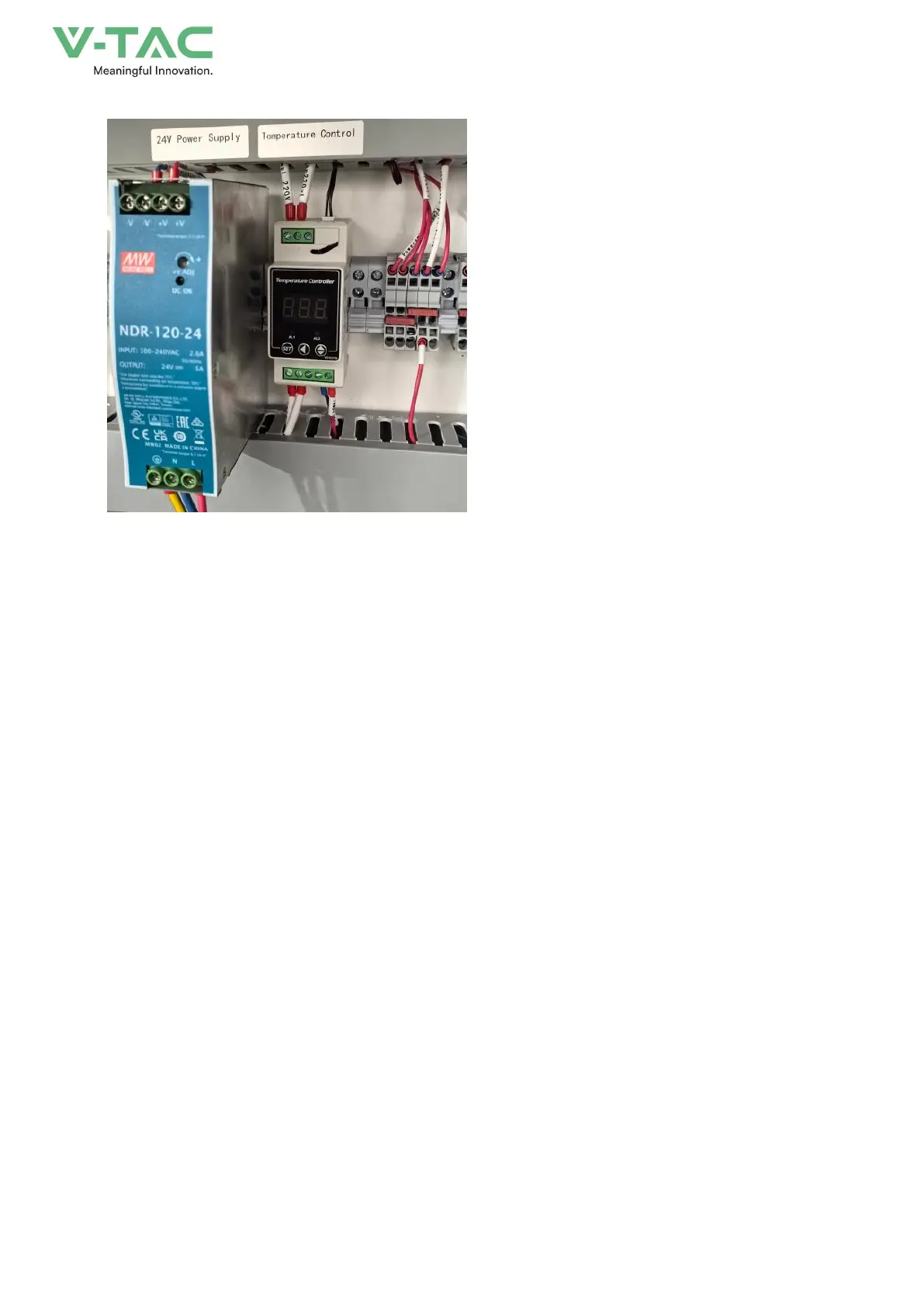

Figure2-10 Temperature Control
TECHNOLOGY PERFORMANCE
1) Operating voltage: AC100-240V, consumption less than 2W; DC8~24V < 200mA,（Other power
supply can be customized）
2) Measurement accuracy: 0.5% Fs ± 1, temperature test range : -50 ~ -19.9 ~ 99.9 ~ 120 ˚C ,
control range: -19.9 ~120 ˚C
3) Display type: 0.36 inches high brightness red LED (Other color can be customized)
4) Working conditions: -10 ~ 50˚C, (relative humidity below 80%)
5) Relay output: Passive output, contact capacity AC 10A/250V , DC 10A/30V
6) Dimension: W36*D84*H64mm
PARAMETER SETTING INSTRUCTIONS
In normal display mode. press and hold SET key to enter setting mode. Then press SET key
repeatedly to switch the next mode. Switching sequence as below:
RST (Reset function) -->CF( Unit switching) -->FLT( Filter coefficient) -->LC( Temperature deviation
correction value) -->PD( Power-on
delay) -->TY1( Relay 1 alarm type) -->AL1( Relay 1 alarm value) -->HY1(Relay 1 return difference)
-->DT1(Relay1 time delay value) -->ADD( Address code) -->TY2( Relay 2 alarm type) -->AL2（ Relay
2 alarm value)
-->HY2(Relay 2 return difference) --> DT2(Relay2 time delay value) -->Back to normal display mode.
1） When switch to the mode you want to set, press o to enter, parameter correction bit is flashing.
2）Press repeatedly , value will be increased singly in every press, press and hold , value will be
increased continuously.
After release, press and hold again, value will be decreased continuously. Press repeatedly, value
will be decreased singly in every press,.
（ Note: Press and hold to switch the direction of increase and decrease, also can move the
correction bit by pressing , and then adjust the value.)
