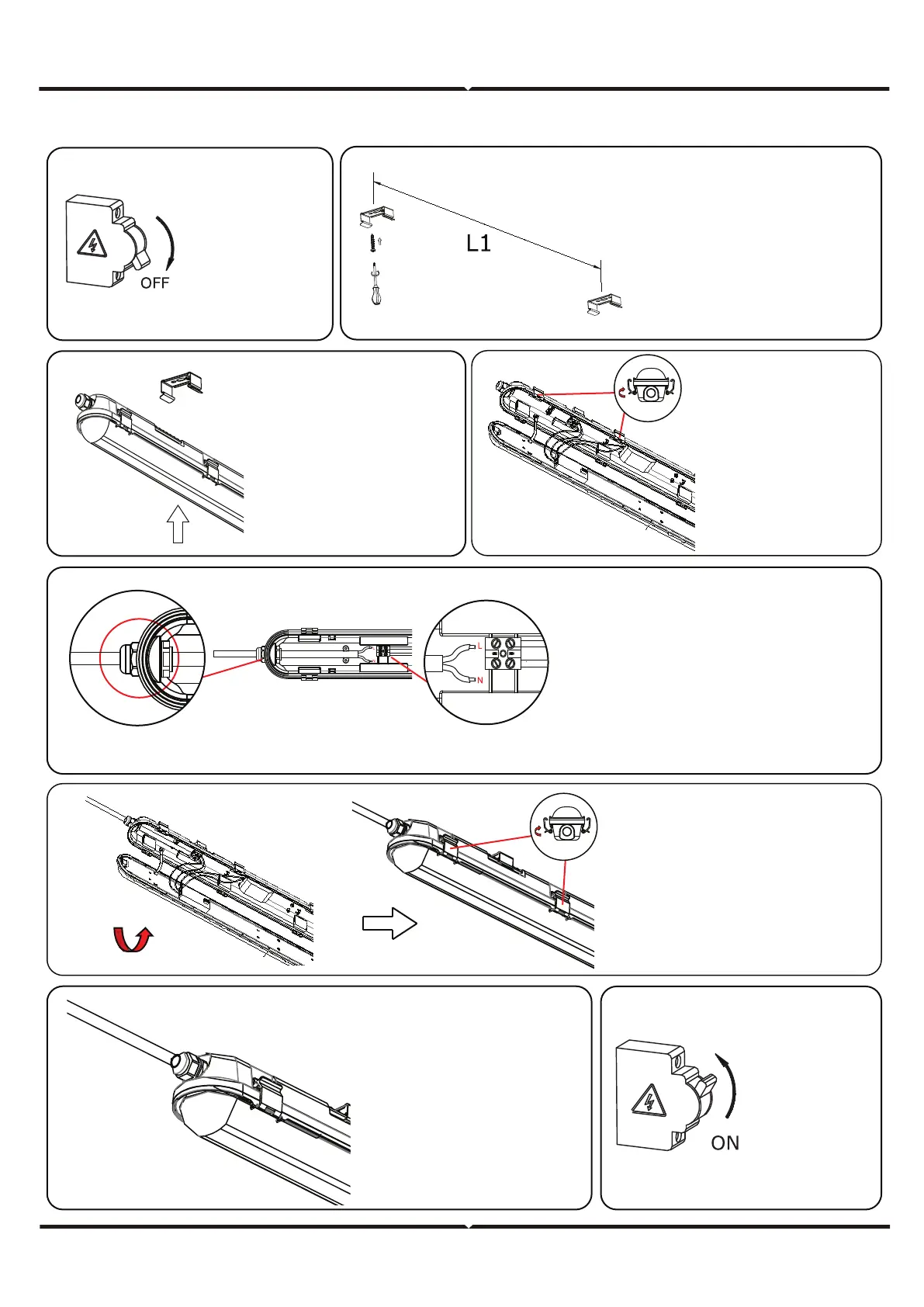

SINGLE UNIT INSTALLATION INSTRUCTIONS
STEP 8:
Switch ON
the power
to test the
light.
STEP 7: Wire the
water-proof fitting to
the main power
supply. Ensure to use
waterproof terminal
block [not included].
STEP 6: Install the diuser
to the waterproof fitting
and close the clips.
STEP 4: Open the
side clips of
waterproof fitting
and open the
diuser as shown
in the diagram.
STEP 2: Fix the mounting
brackets onto the ceiling
using screws and expan-
sion plug(included). Please
refer to table for installing
the mounting bracket
distance points.
STEP 1: Switch
OFF the power
before starting
the installation.
STEP 3: Mount
water-proof lamp
onto the mounting
brackets.
STEP 5: Fasten the waterproof connector
clockwise from the first end and insert the
cable through the waterproof connector and
wire into the terminal block from one end
[L(Live) & N(Neutral)] and wire the sensor into
other side or terminal block. Wiring must
done according to the schematic diagram.
WATERPROOF CONNECTOR
