9. System Operation

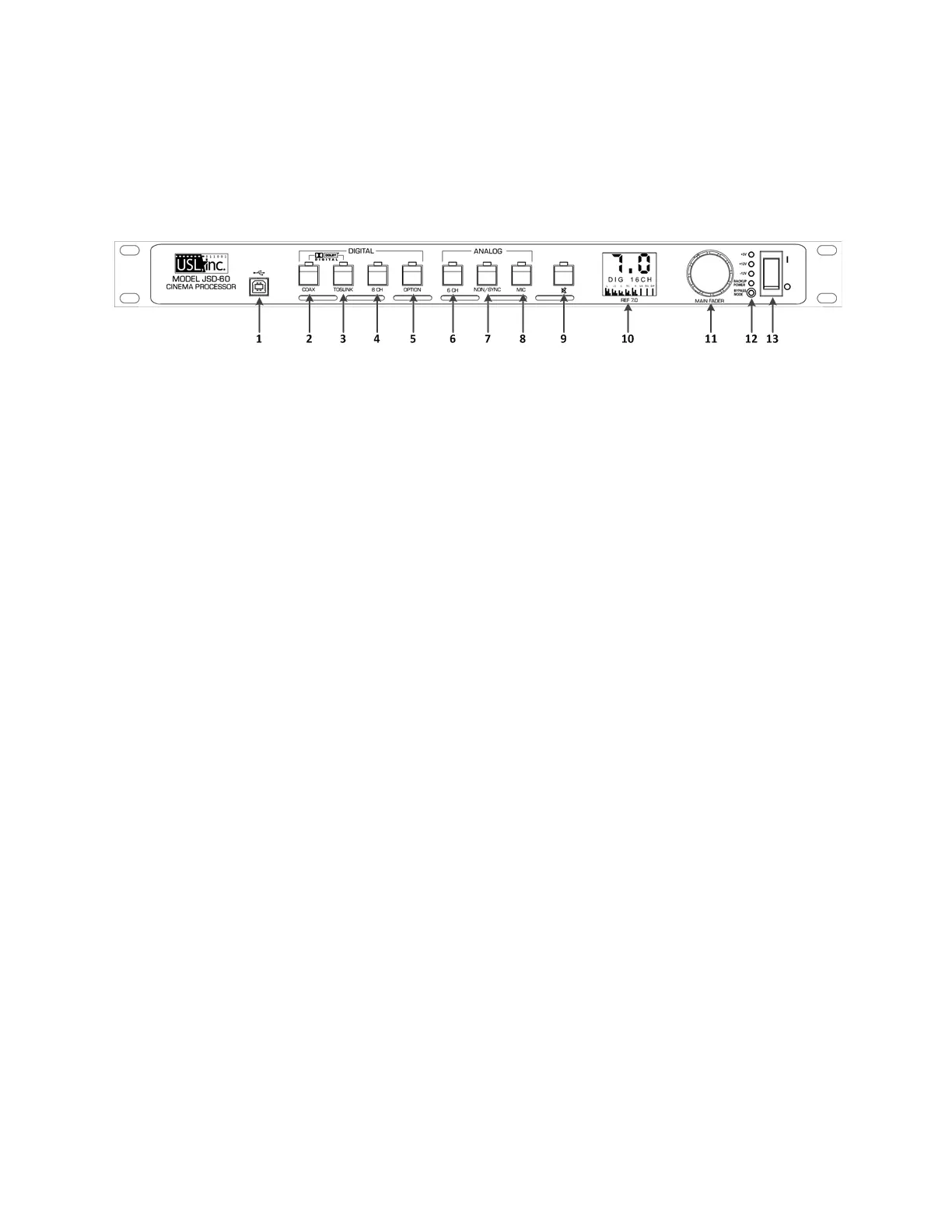

The JSD-60 is controlled by the digital cinema server in most installations. Control is also
available from the front panel.
1. USB Connector for communications. Select on the user interface
2. COAX – Rear Panel RCA type connector for PCM or optional Dolby Digital® or DTS®
decoding.
3. TOSLINK – An optical fiber connection for PCM or optional Dolby Digital® or DTS® decoding.
4. 8 CHANNEL DIGITAL – AES/EBU balanced line inputs.
5. Option – allows the selection and configuration of any input and any settings.
6. 6 CHANNEL ANALOG – Balanced line inputs. Six channels (L, C, R, LFE, Ls, Rs) are fed through
the unit with appropriate delays and EQ.
7. NON-SYNC – Two channel analog unbalanced line input. Input sensitivity may be adjusted.
8. MIC – Public address balanced or unbalanced input. Input sensitivity and level may be
adjusted.
9. MUTE – Mutes all outputs.
10. Display – Indicates the fader level, format input and bar graph display of the output signal
levels.
11. Fader – Controls the overall volume of all the channels.
12. Power Indicator LEDs – Displays status of power supply voltages.
13. Power Switch – On for normal operation, off for bypass operation.
