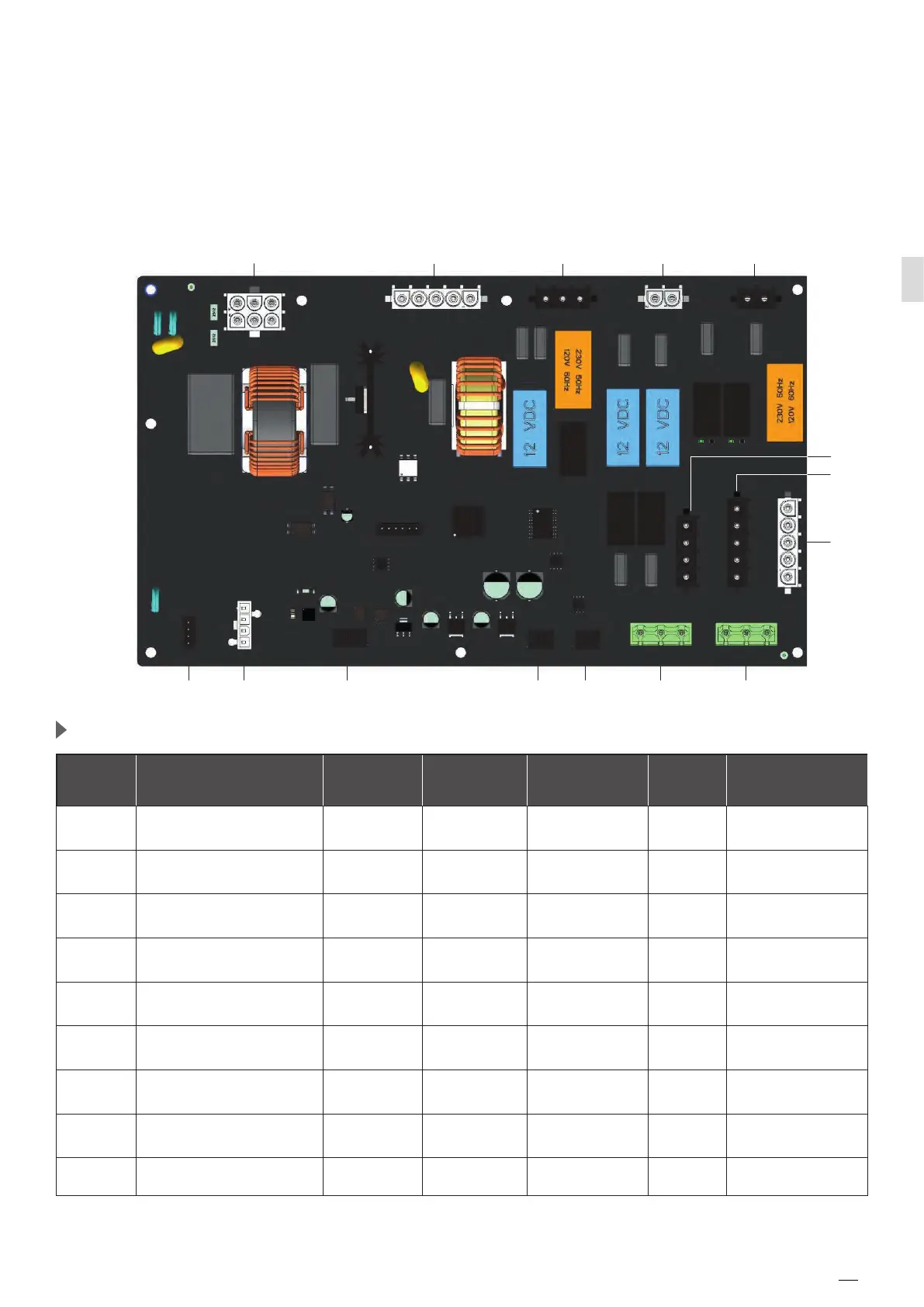

GENERAL DESCRIPTION PE2143B

■ The KPE2143B has been introduced with XAVL version ovens. The new auxiliary power board allows for

the redistribution of the loads on the phases to decrease the absorption of the single phases.

■ It controls oven loads (contactors, motors, solenoid valves, core probe) in association with PE2038A0,

PE2022A0.

■ It reads values coming from different sensors (such as probes)

■ It communicates via CANBUS with the control board

P3 P4 P14

P20

P16

P15

P21

P22P5P6P18P8P9

Output

NAME

LOAD

DESCRIPTION

ACTUALIZA-

TION

VOLTAGE

CURRENT

(Max N°load)

TYPE OF

LOAD

Max N° load

TL3 Contactor group #3

Relay (RL8)

230 Vrms G 4

TL4 Contactor group #4

Relay (RL9)

230 Vrms G 4

V2V

DRY.Maxy solenoid

Relay (RL2)

230 Vrms B 2

FAN

Cooling fan output

Relay (RL7)

230 Vrms 2 E

-

RES_1

Braking element # 1

(group 2)

Relay

(RL4)

230 Vrms

- -

3

RES_2

Braking element # 2

(group 2)

Relay (RL5)

230 Vrms

- -

3

MOT_

FWRW

Motor revolution direction Relay (RL1)

- - -

3

STBY

Neutral cut off

Relay (RL6)

- - -

-

TRIAC Output motors group #2 Triac (Q1) 230Vrms 3

P2

P1

25
