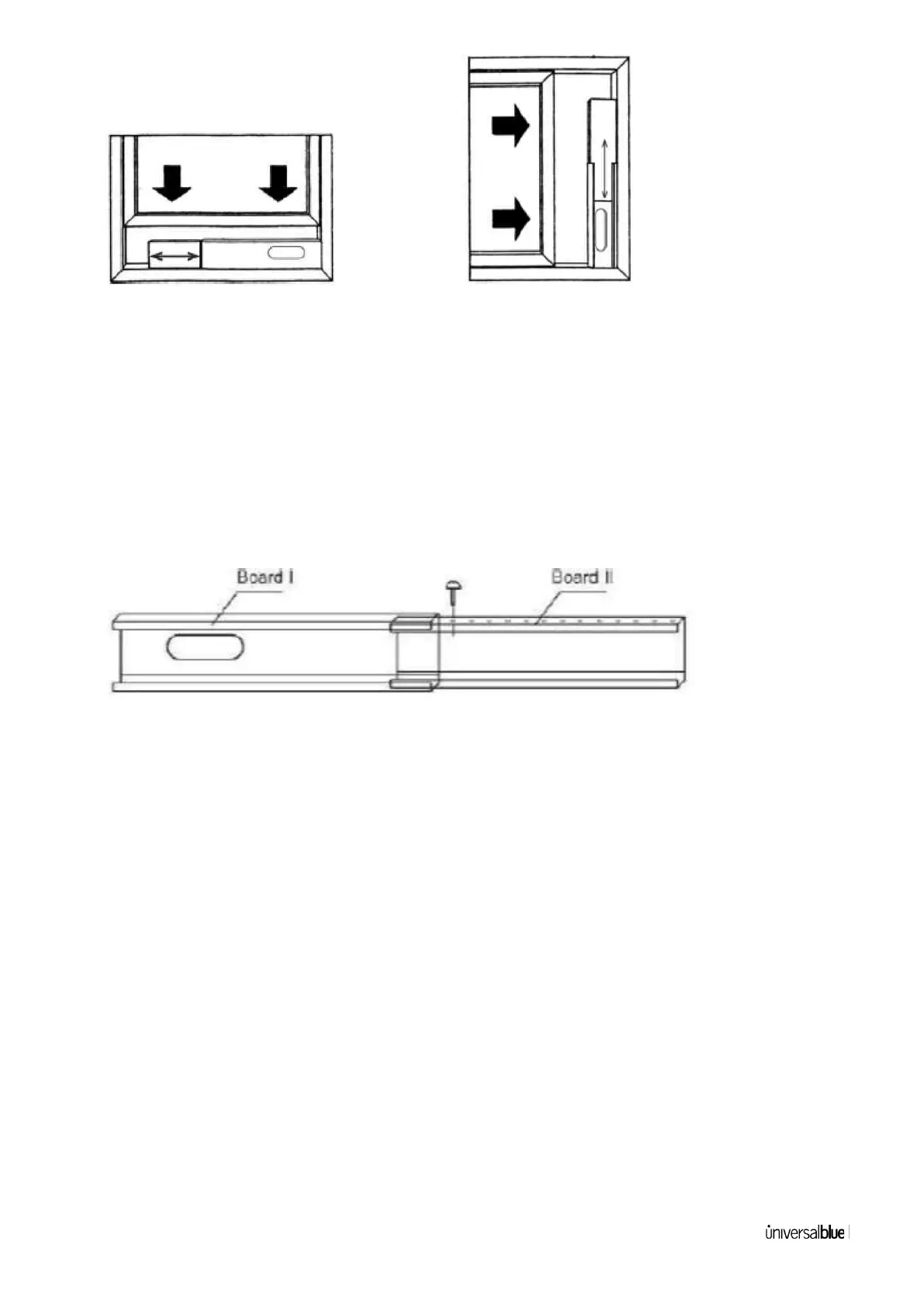

lnstructions: One screw fix on installation board II.

The Air Exhaust Hose Mounting Method

The air escape hose is 20cm-160cm length. It is suggested that the hose should be as

short as possible to achieve the maximum energy efficiency when the air conditioner

works. If there is a need to extend the hose, please adopt the best mounting method

as the figure shows. And please also pay attention to the following points:

Try to avoid the bendings of the hose. 1.

Try to avoid the bendings of the hose near the escape air outlet (and the bending 2.

point should be at least 50cm away from the escape air outlet.

Keep the smoothness of the whole air eescape hose, especially in the bending 3.

points. Avoid any abrupt steep-angled bendings.

Horizontal window

Window slider kit

Minimum: 27-1/ 2" (70 cm)

Maximum: 48 (122cm)

Vertical window

Window slider kit

Minimum: 27-1/ 2" (70 cm)

Maximum: 48 (122cm)
