05 MENU OPERATIONS
45
4K/UHD 12G-Quad Multi View Monitor

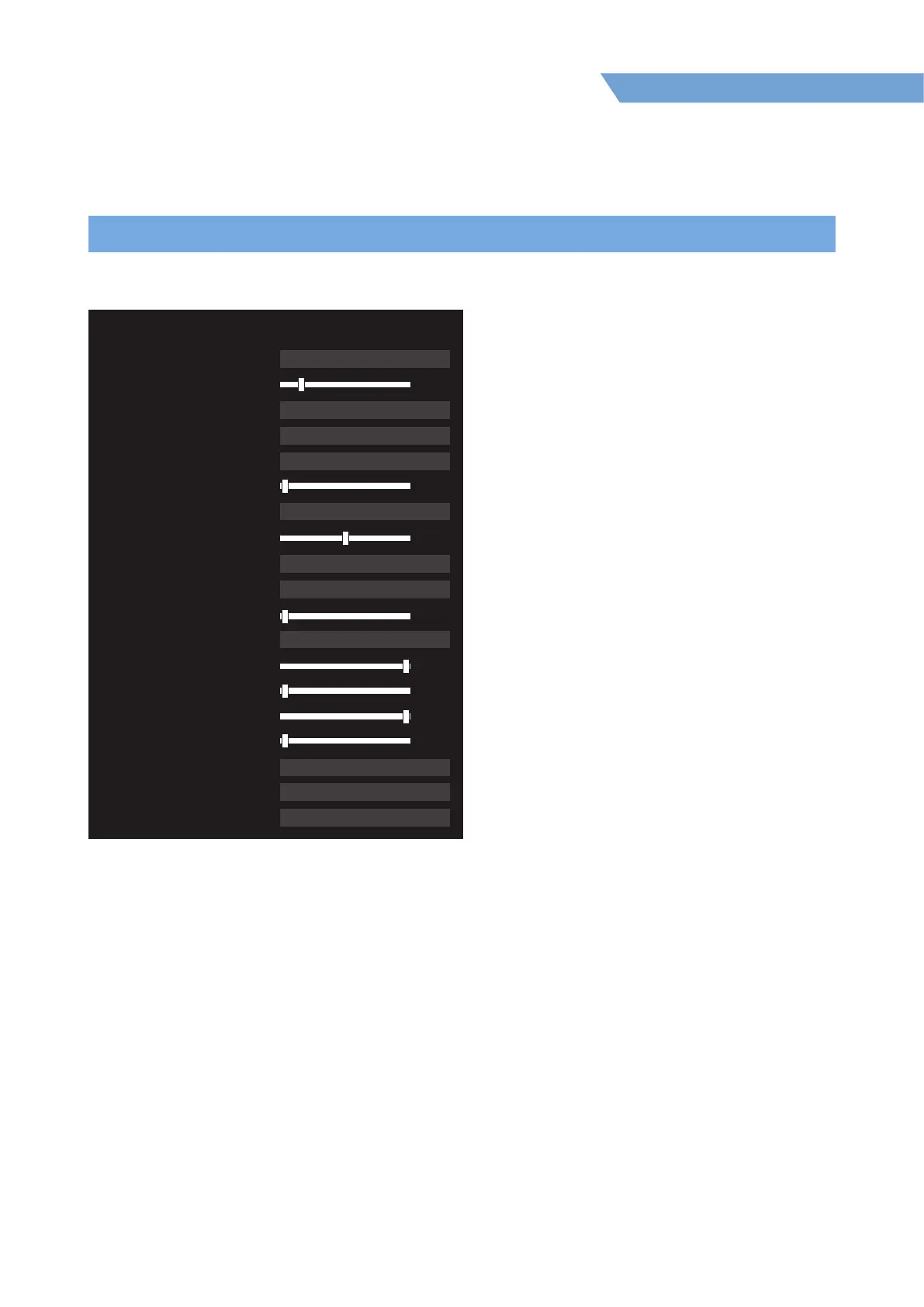

[7] WAVEFORM & FOCUS
Waveform & Focus
WAVE FORM DISPLAY
WAVE FORM INTENSITY
WAVE FORM TRANS.
WAVE FORM COLOR
LINE WAVE FORM
SELECT LINE POSITION
LUMA ( Y’ ) ZONE CHECK
LUMA ( Y’ ) ZONE ADJUST
FOCUS ASSIST
FOCUS ASSIST COLOR
FOCUS ASSIST LEVEL
RANGE ERROR
Y MAX
Y MIN
C MAX
C MAX
BLINK
COLOR
GRID
LXM-180P
OFF
BLACK
OFF
4
0
50
0
254
0
254
0
WAVEFORM OFF
OPAQUE
GREEN
OFF
OFF
OFF
RED
OFF
Y MIN
- Set the minimum Luma(Y’) level.
- Adjustable level: [0] to [254] (Increments of 1)
- Pixels with values below the minimum
luma(Y’) level blink on the screen and are
displayed in red on the Waveform.
C MAX
- Set the maximum chroma(C’) level.
- Adjustable level: [0] to [254] (Increments of 1)
- Pixels with values exceeding the maximum
chroma(C’) level blink on the screen and are
displayed in red on the Vector Scope.
C MIN
- Set the minimum chroma(C’) level.
- Adjustable level: [0] to [254] (Increments of 1)
- Pixels with values below the minimum
chroma(C’) level blink on the screen, and
are displayed in red on the Waveform.
BLINK
- Set whether or not to blink the pixels with
values over Y MAX and C MAX or below Y
MIN and C MIN.
- [OFF]: The pixels are displayed in the color
set in the [COLOR] menu.
- [ON]: The pixels are displayed in the color
set in the [COLOR] menu and blink every
two seconds.
COLOR
- Set the blink color.
- Selectable mode: [BLACK], [BLUE], [GREEN],
[RED]
GRID
- Set whether or not to display the pixels
with values over Y MAX and C MAX or below
Y MIN and C MIN in a grid pattern.
- Selectable mode: [OFF], [ON]
● RANGE ERROR
- Activate or inactivate Y MAX, Y MIN, C MAX,
C MIN, BLINK, COLOR functions.
- The values of Y MAX, Y MIN, C MAX, C MIN are
indicated in Waveform and Vector Scope.
- If [BLINK] is enabled, the section of image that
exceeds the adjusted values of Y MAX, Y MIN,
C MAX, C MIN shall blink.
Y MAX
- Set the maximum Luma(Y’) level.
- Adjustable level: [0] to [254] (Increments of 1)
- Pixels with values exceeding the maximum
luma(Y’) level blink on the screen and are
displayed in red on the Waveform.
