18 MANCHESTER MC15-R Quick Start Guide 19
Single-Lock
7. Fit a single-lock to each I-Bar at the rear of the speaker, and make sure they
are tted to the fourth hole from the end of the I-Bar. Make sure that the
quick release pins are correctly inserted all the way into the holes in the
I-Bars, and are securely in place.
The three extra holes in the I-Bars can be used for storage of unused single and
double-locks.
Note that only the single-locks are used to secure the MC15-R to the MC15-R
in this initial assembly. Some are replaced with double-locks when forming
an array, as shown in instructions below.
WARNING: Double-check that both I-Bars are correctly inserted
between the top MC15-R and the lower MC15-R, securely joining them
together, with no gap between them.
Double-check that there is a single-lock securely tted to the front of each I-Bar,
and another single-lock is securely tted at the rear of each I-Bar, in the fourth
hole from the end of the I-Bar.
Failure to follow these instructions may lead to an I-Bar falling out, and
failure of the MC15-FB and MC15-R assembly, with the possibility of death or
permanent injury.
QRP
Double-Lock

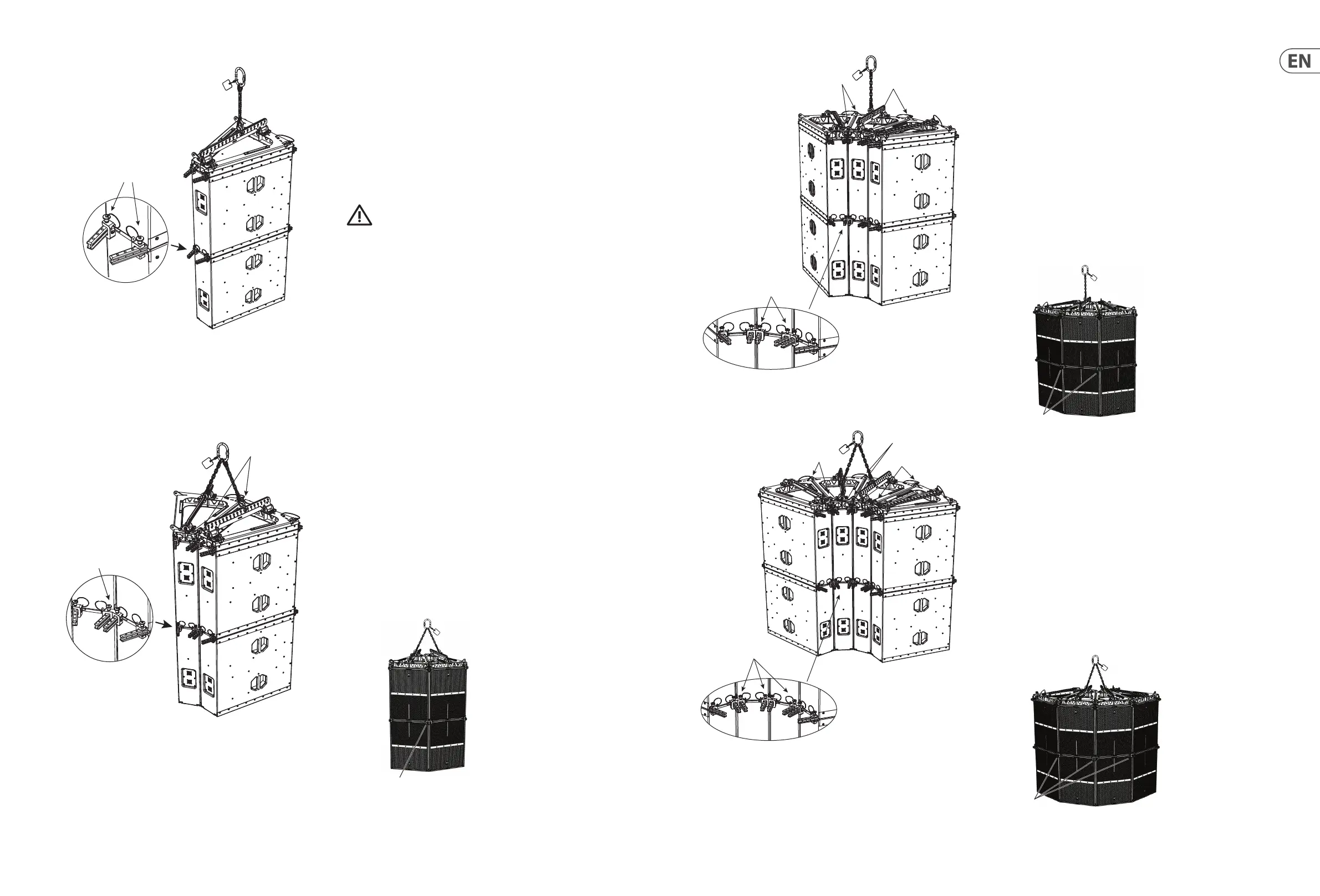

Assembling two-high MC15-R/ MC15-FB clusters
The details below show how to create two-high clusters.
1. Create MC15-FB/MC15-R/MC15-R assemblies using the instructions above.
2. These can be joined together in the same way as shown for the one-high
clusters. Make sure that the MC15-FB y bars are joined together using two
QRP in the MC15-R lugs.
3. Remove the two lower center single locks and replace them with a double-
lock. Make sure that the quick release pins are correctly inserted all the way
into the holes in the I-Bars, and are securely in place.
4. This joins the two center I-Bars together. Do this for the front and the rear of
the two center I-Bars.
5. Double-check all connections.
1. To assemble a three-wide array, add another MC15-FB/MC15-R/MC15-R in
the same way as described above.
2. Make sure that the MC15-FB y bars are joined together using two QRP in the
MC15-R lugs. The pick-point bars that are not used can be stowed using one
QRP. In this way, there will be two QRP available to connect each MC15-FB y
bar to each other.
3. Remove the two lower center single locks and replace them with a double-
lock. Make sure that the quick release pins are correctly inserted all the
way into the holes in the I-Bars, and are securely in place. This joins the
two center I-Bars together. Do this for the front and the rear of the two
center I-Bars.
4. Double-check all connections.
1. To assemble a four-wide array, add another MC15-FB/MC15-R/MC15-R in the
same way as described above.
2. Make sure that the MC15-FB y bars are joined together using two QRP in the
MC15-R lugs. The pick-point bars that are not used can be stowed using one
QRP. In this way, there will be two QRP available to connect each MC15-FB y
bar to each other.
3. Remove the two lower center single locks and replace them with a double-
lock. Make sure that the quick release pins are correctly inserted all the way
into the holes in the I-Bars, and are securely in place. This joins the two
I-Bars together. Do this for the front and the rear of the two I-Bars.
4. Double-check all connections.
Double -Lock
QRP
QRP
QRP
Double -Lock
QRP
QRP
Double -Locks
Double -Locks
Double -Lock
