Assembly Instructions

REQUIRED

Vertical Seat Rail Dampener [10]

2x M10 Washers [11]

M10 Nyloc Nut [12]

Plastic Dome Cap [13]

M10 x120mm Bolt [15]

M10 x150mm Bolt [16]

A) Insert the Seat Rail until it just slightly protrudes behind the

Footplate. Shown here is the installation/alignment point

for the M10x120mm Horizontal Seat Rail Bolt[15], 2x M10

Washers[11] and Nyloc Nut[12]. Install and secure.

B) Insert the M10x150mm Vertical Seat Rail Tensioning Bolt[16]

and Vertical Seat Rail Dampener[10] with the Plastic Dome

Cap[13].

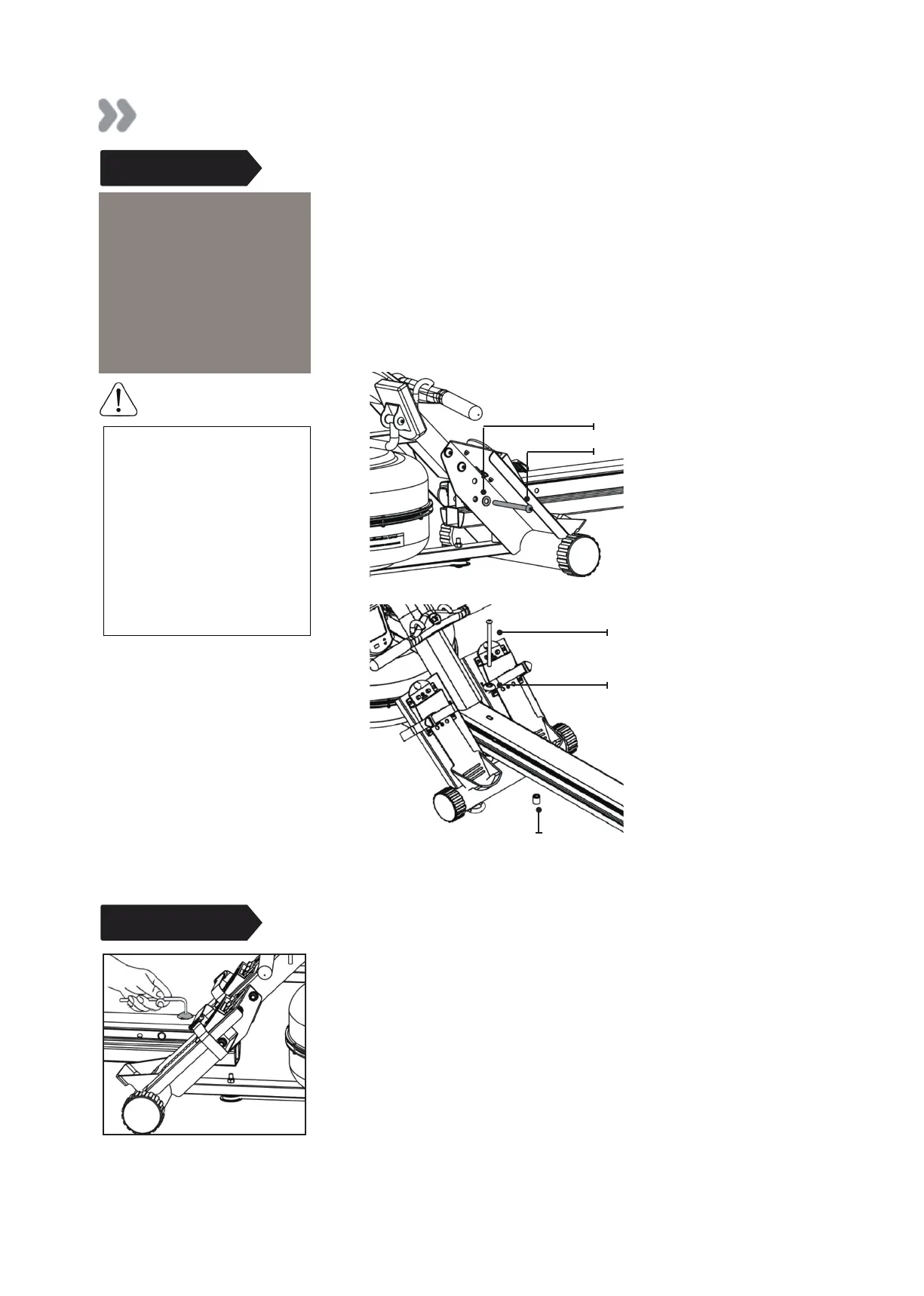

Installing the Seat Rail to the Main Frame

STEP 2

..........................................................................................................................................................

Install the Vertical Seat Rail

Tensioning Bolt through the

Seat Rail as shown, then fit the

Vertical Seat Rail Bolt Dampener

onto the Bolt between the

bottom of the Seat Rail and the

Lower Frame (not shown) before

securing Bolt into the Lower

Frame. Do not tighten. See

following page for correct height

adjustment.

CAUTION

M10x150mm Bolt

M10 Washer

Plastic Dome Cap

M10x150mm Bolt

Vertical Seat Rail Dampener

Note: The Vertical Seat Rail Dampener is designed to take up the slack

between the Seat Rail and Main Frame when standing in the vertical position.

Fine Tuning the Rower

STEP 3

The Vertical Seat Rail Tensioning Bolt is designed to hold the

mid leg 3-5mm off the ground when the Strength Machine is

unweighted, and just slightly touch the ground during a rowing

stroke.

Tighten the assembly until the Mid Leg begins to lift off of the

ground as shown below.

Note: If excessive head shaking/hopping of the Tank occurs

during rowing, this indicates the Vertical Seat Rail Tensioning Bolt

being out of adjustment.

Tension the Vertical Seat Rail Bolt

as shown here until mid-leg rises

off the floor approx.3-5mm.
