TVM - TRUE VISUAL MERCHANDISER
TEC_TM_152 | REV. A | EN 09/23/2021 Page 9 of 20
www.truemfg.com
Cabinet Setup
Shelf Adjustment
Shelving is adjustable for customer application. This cabinet meets
the IEC Shelf Weight Capacity of 47lb/ft²
(230kg/m²).
Cantilever Shelving
There are two types of cantilever shelving: Solid shelves and wire
shelves.
NOTE: For ease of installation, TRUE recommends installing the
lowest shelves first and then working your way up.
Shelf Support Bracket
1. Slide the bracket support tab into the shelf standard.
See figs. 1-3.
2. Slide the angle adjustment tab into the shelf standard. Hook
the appropriate notch into the shelf standard to support the
shelf at the desired angle. See figs. 3 and 4.
3. Repeat steps 1 and 2 for the opposite shelf support bracket.
Shelf Installation
Both cantilever shelving and wire shelving (with clips) are available.
NOTE: Do not let product hang over the edge of the shelf.
NOTE: Please note some doors are manufactured with a 90˚ Stay
Open feature to assist with shelf installation, as well as loading
and unloading the cabinet.

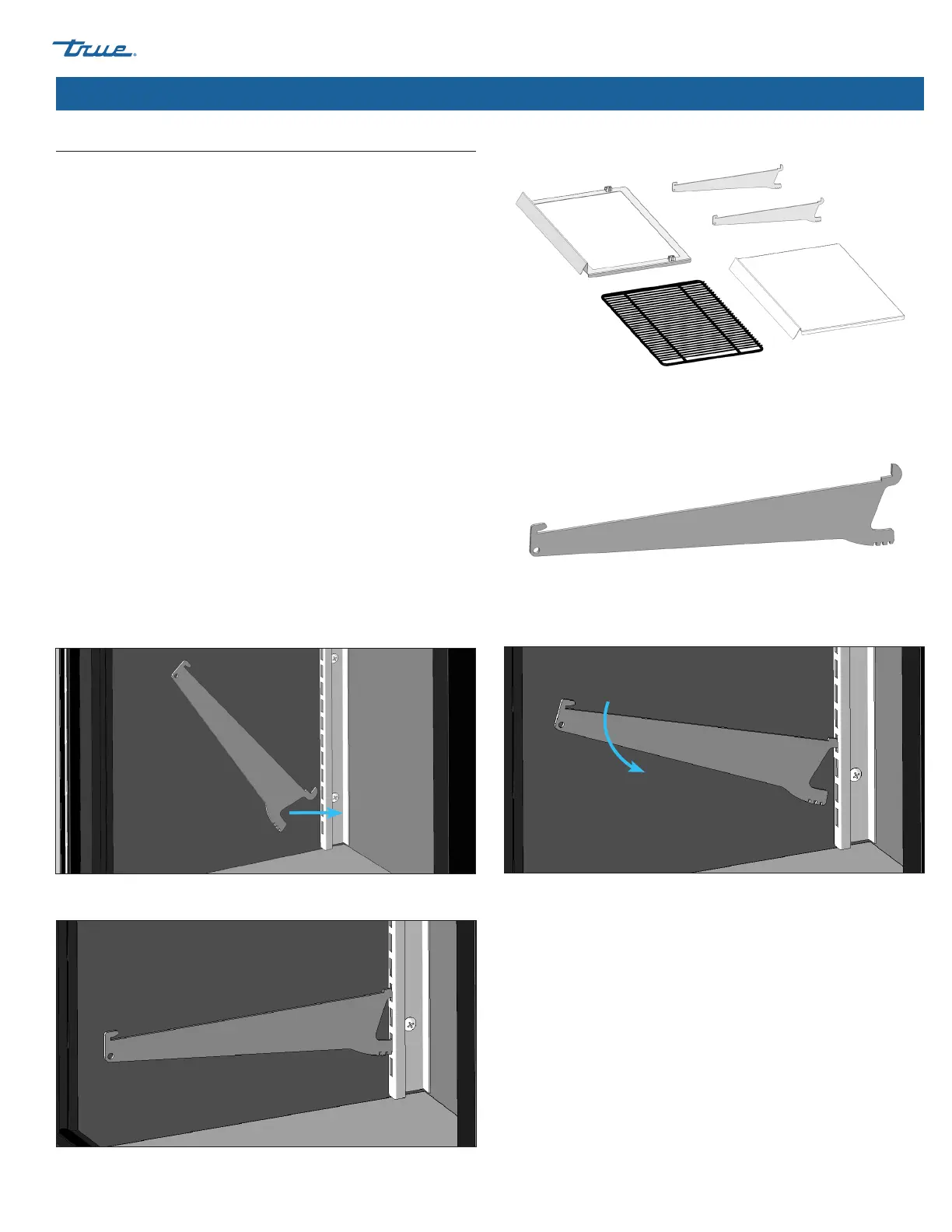

Fig. 2. Hook the shelf support into the shelf standard.
Fig. 3. Determine the appropriate adjustment slot.
Fig. 4. Installed shelf support bracket.
Fig. 1. Shelf support bracket tab identification.
Shelf Support
Shelf Brackets
Wire Shelf
Shelf
Support Tab
Bracket
Support Tab
Angle
Adjustment Tab
Solid Shelf
