TEC_TM_009 REV. L_EN
01/02/2025
Page 39 of 76
TR-24/30/36 INSTALL MANUAL
INSTALLATION

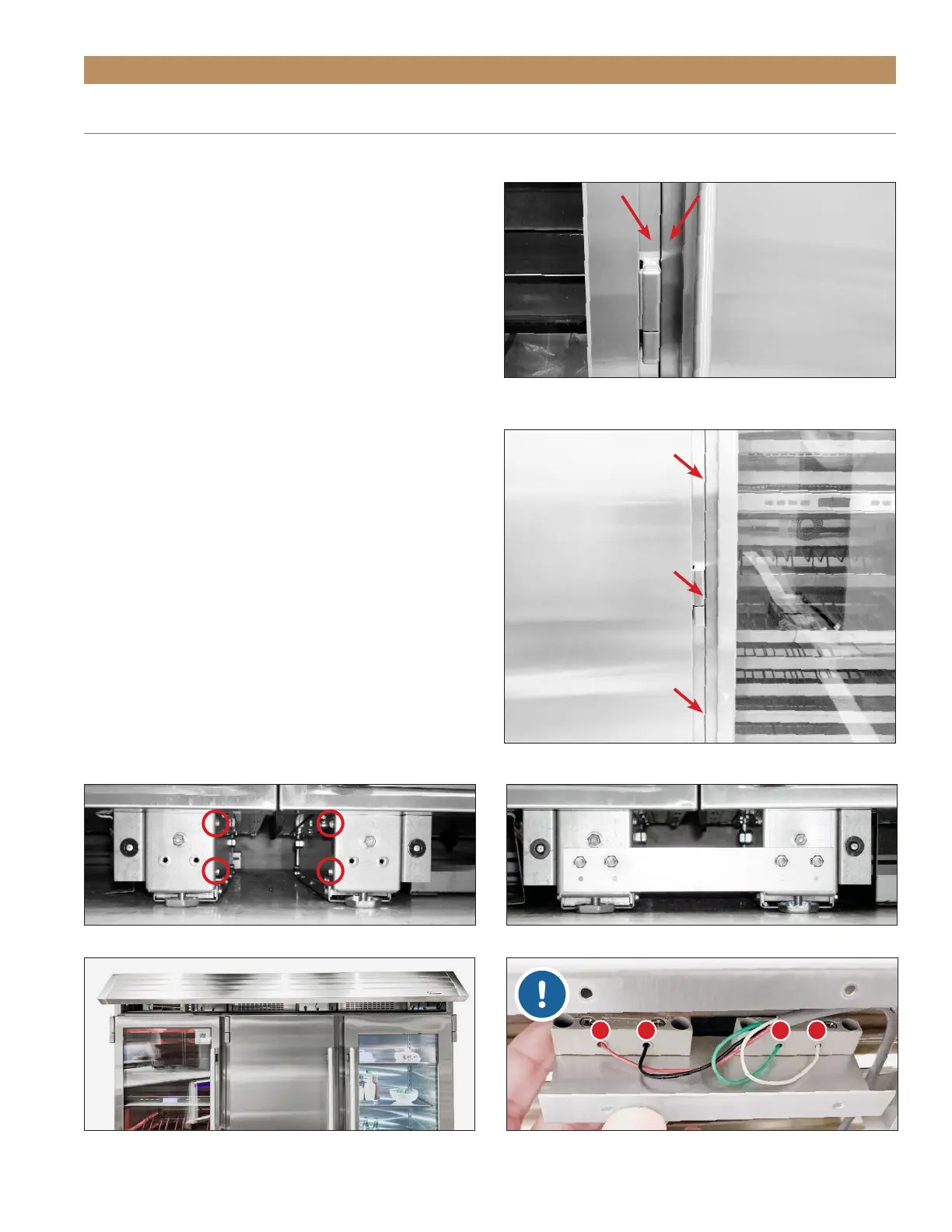

FIG . 17.
Return the magnet bracket screws to their original locations.
FIG. 15.
Verify the appliance fronts are flush. Adjust the units
accordingly.
FIG. 16.
Verify the gap(s) between appliances is (are) even throughout.
FIG. 18.
Installed joining bracket.
FIG. 19.
Installed joining rainshield.
14. Walk the joined units into their final installation
location.
15. Verify the level of the appliances. Level the units as
needed.
16. Restore power to the units and turn the units on.
17. After 3 minutes of runtime, open the doors
individually and verify correct door switch
operation. When operating correctly, the following
should occur:
• Unless set otherwise, the lights turn on and off
with the door openings.
• The evaporator (interior) fan turns on and off
with door openings.
• There is a low-pitched click from the control
board area when the door opens or shuts.
18. Install the joining kit grill.
JOINING KIT INSTALLATION (CONT.)
FIG. 20.
Connect the reed switches with the original wire configurations.
1 2 3 4
