TEC_TM_009 REV. L_EN
01/02/2025
Page 15 of 76
TR-24/30/36 INSTALL MANUAL
PAGE TITLEPRIOR TO INSTALLATION

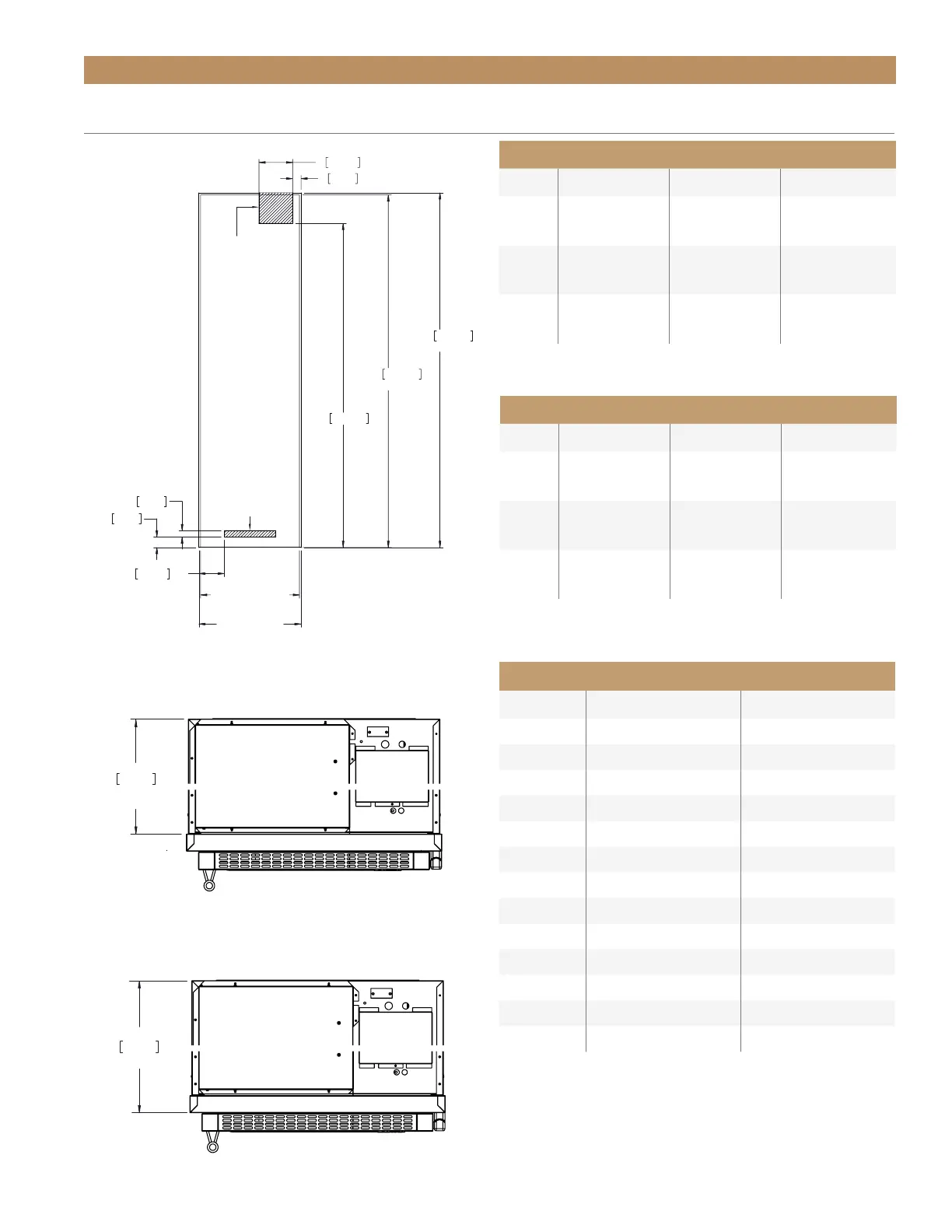

Rough Opening Dimensions–Standard (Proud)
Model Width (A) Height Depth
TR-24
23-1/2”
(597 mm)
83-3/4”
(2127 mm)
24”
(609.1 mm)
TR-30
29-1/2”
(749.3 mm)
83-3/4”
(2127 mm)
24”
(609.1 mm)
TR-36
35-1/2”
(901.7 mm)
83-3/4”
(2127 mm)
24”
(609.1 mm)
Dimensions may vary by ± 1/8" (3.2 mm)
6"
152mm
TYP
2 1/2"
64mm
1 1/2"
38mm
84 1/4"
2140mm
FLUSH INSTALL
77"
1956mm
FLUSH INSTALL
STANDARD INSTALL
A
B
WATER AREA
ELECTRICAL AREA
83 3/4"
2127mm
STANDARD INSTALL
8"
203mm
2"
51mm
Rough Opening Dimensions–Flush
Model Width (A) Height Depth
TR-24
24-1/4”
(616 mm)
83-3/4”
(2127 mm)
26”
(660.4 mm)
TR-30
30-1/4”
(768.4 mm)
83-3/4”
(2127 mm)
26”
(660.4 mm)
TR-36
36-1/4”
(920.8 mm)
83-3/4”
(2127 mm)
26”
(660.4 mm)
Rough Opening Dimensions–Combinations
Combo Size Standard (A) Flush (B)
48” 47-1/2” (1206.5 mm) 48-1/4” (1225.6 mm)
54” 53-1/2” (1358.9 mm) 54-1/4” (1378 mm)
60” 59-1/2” (1511.3 mm) 60-1/4” (1530.4 mm)
66” 65-1/2” (1663.7 mm) 66-1/4” (1682.8 mm)
72” 71-1/2” (1816.1 mm) 72-1/4” (1835.2 mm)
78” 77-1/2” (1968.5 mm) 78-1/4” (1987.6 mm)
84” 83-1/2” (2120.9 mm) 84-1/4” (2140 mm)
90” 89-1/2” (2273.3 mm) 90-1/4” (2292.4 mm)
96” 95-1/2” (2425.7 mm) 96-1/4” (2444.8 mm)
102” 101-1/2” (2578.1 mm) 102-1/4” (2597.2 mm)
108” 107-1/2” (2730.5 mm) 108-1/4” (2749.6 mm)
114” 113-1/2” (2882.9 mm) 114-1/4” (2902 mm)
120” 119-1/2” (3035.3 mm) 120-1/4” (3054.4 mm)
ROUGH OPENING (CONT.)
23 25/32"
604mm
STANDARD
(PROUD) INSTALL
25 25/32"
655mm
FLUSH INSTALL
Dimensions may vary by ± 1/8" (3.2 mm)
Dimensions may vary by ± 1/8" (3.2 mm)
Standard (Proud) Installation: The front face of the
unit extends beyond the surrounding cabinets.
Flush Installation: The front face of the unit is flush
with the surrounding cabinets.
