True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truetness.com
Page # 42 of 86
CHAPTER 2: ASSEMBLY GUIDE
Strength
Palladium Modular Training Systems
ASSEMBLY STEPS:

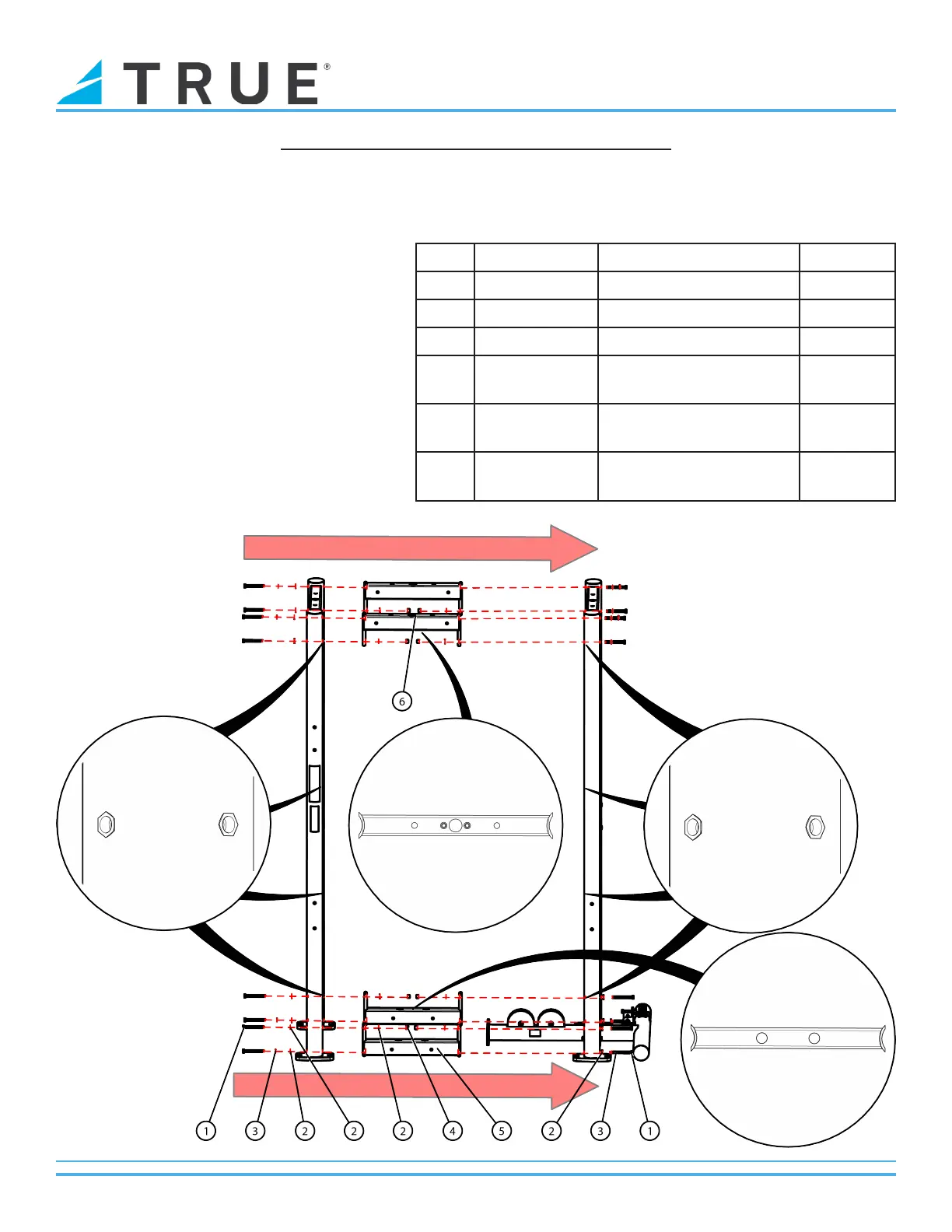

Step 3 (Upper and Lower Frame Attachments):
Assemble the Upper and Lower Frame
Attachments to the Upright Assemblies using
the identied hardware.
Note: is assembly step applies only when
assembling the TMS0004 (Frame, Four Sided)
for the TMS4000, TMS5000, TMS6000,
TMS8000, and TMS12000.
Note: Orient the Upright Assemblies with the
Front and Rear Weight Stack Shroud mounting
holes facing inward as shown in Step 17
(Weight Stack Shrouds [Front and Rear]).
Item Part Number Description Quantity
1 C 455B HH SCREW, 3/8”-16, 4” 16
2 C 754D WASHER, FLAT, 3/8” 24
3 C 749B WASHER, LOCK, 3/8” 8
4 C 742C NYLON LOCK NUT,
3/8”-16
8
5 TMS00043 LOWER FRAME
ATTACHMENT
4
6 TMS00042 UPPER FRAME
ATTACHMENT
4
