True Fitness Technology • O’Fallon, MO • Phone: 800-426-6570/636-272-7100 • Truetness.com
Page # 41 of 86
CHAPTER 2: ASSEMBLY GUIDE
Strength
Palladium Modular Training Systems
ASSEMBLY STEPS:

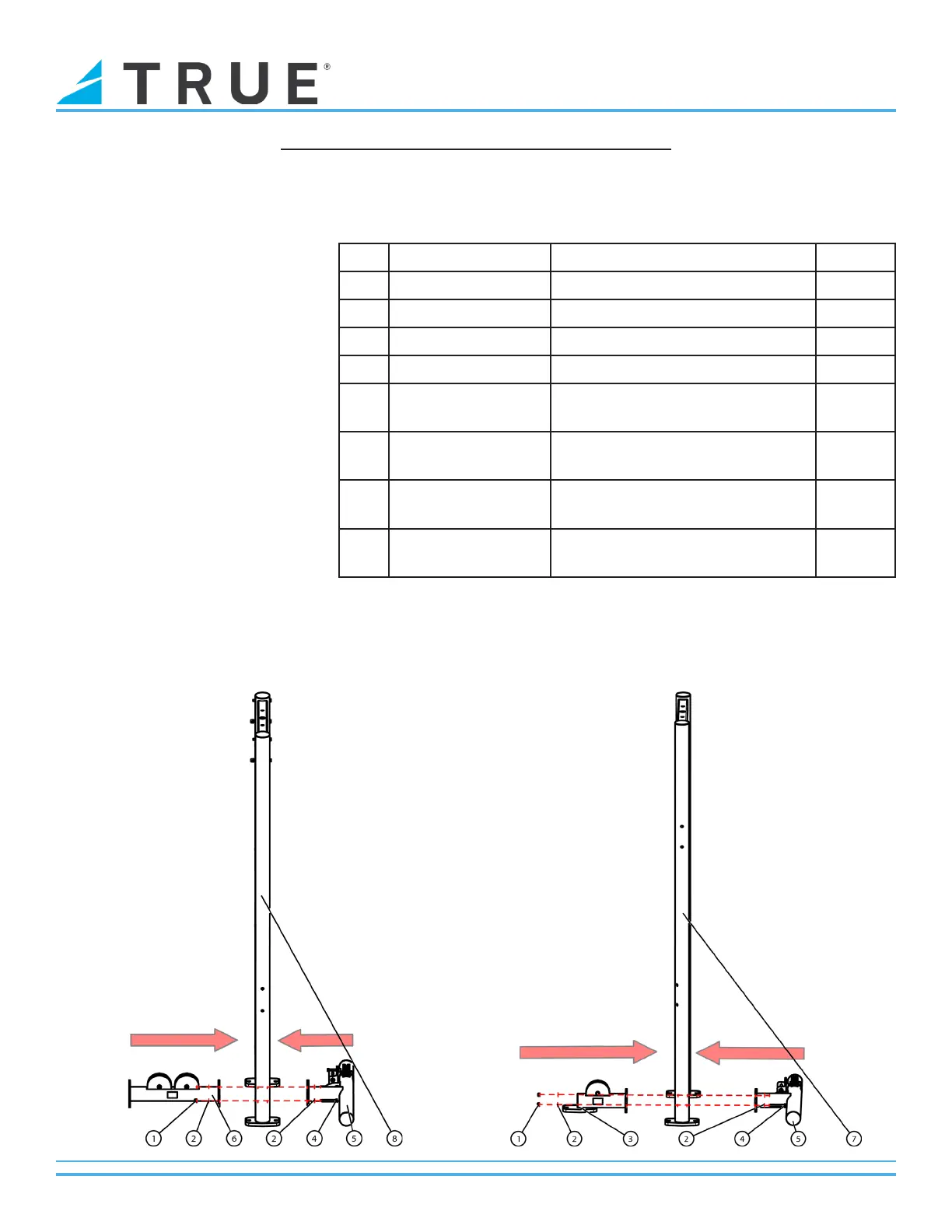

Step 2 (Lower Assembly):
TMS2000, TMS5000, and TMS6000 only. Paired
with part number TMS00015 (Leg Assembly).
Part of the larger parent assembly TMS0001
(Frame, Single Sided).
TMS4000, TMS5000, TMS6000, TMS8000,
TMS12000, and TMS 16000 only. Part of the larger
parent assembly TMS0004 (Frame, Four Sided).
Assemble the Cable Column Lower
Assembly and either the Lower
Assembly (Support) or Center Pulley
Attachment to the Upright Assembly
based on your Modular Strength
Conguration(s) using the identied
hardware.
Note: For the TMS5000 and
TMS6000, both the Lower Assembly
(Support) and Center Pulley
Attachment will be used.
Note: Do not fully tighten hardware
from any assembly step until
Step 17-5 (Seated Row Station) is
completed.
Item Part Number Description Quantity
1 C 742C NYLON LOCK NUT, 3/8”-16 2
2 C 754D WASHER, FLAT, 3/8” 4
3 TMS00016 LOWER ASSEMBLY (SUPPORT) 1
4 C 456B HH SCREW, 3/8”-16, 3-1/4” 2
5 TMS000331 (RT)
or TMS000321 (LT)
CABLE COLUMN LOWER
ASSEMBLY
1
6 TMS00044 CENTER PULLEY
ATTACHMENT
1
7 TMS00011 UPRIGHT ASSEMBLY (FRAME,
SINGLE SIDED)
1
8 TMS00041 UPRIGHT ASSEMBLY (FRAME,
FOUR SIDED
1
