MAGELLAN 40

TH

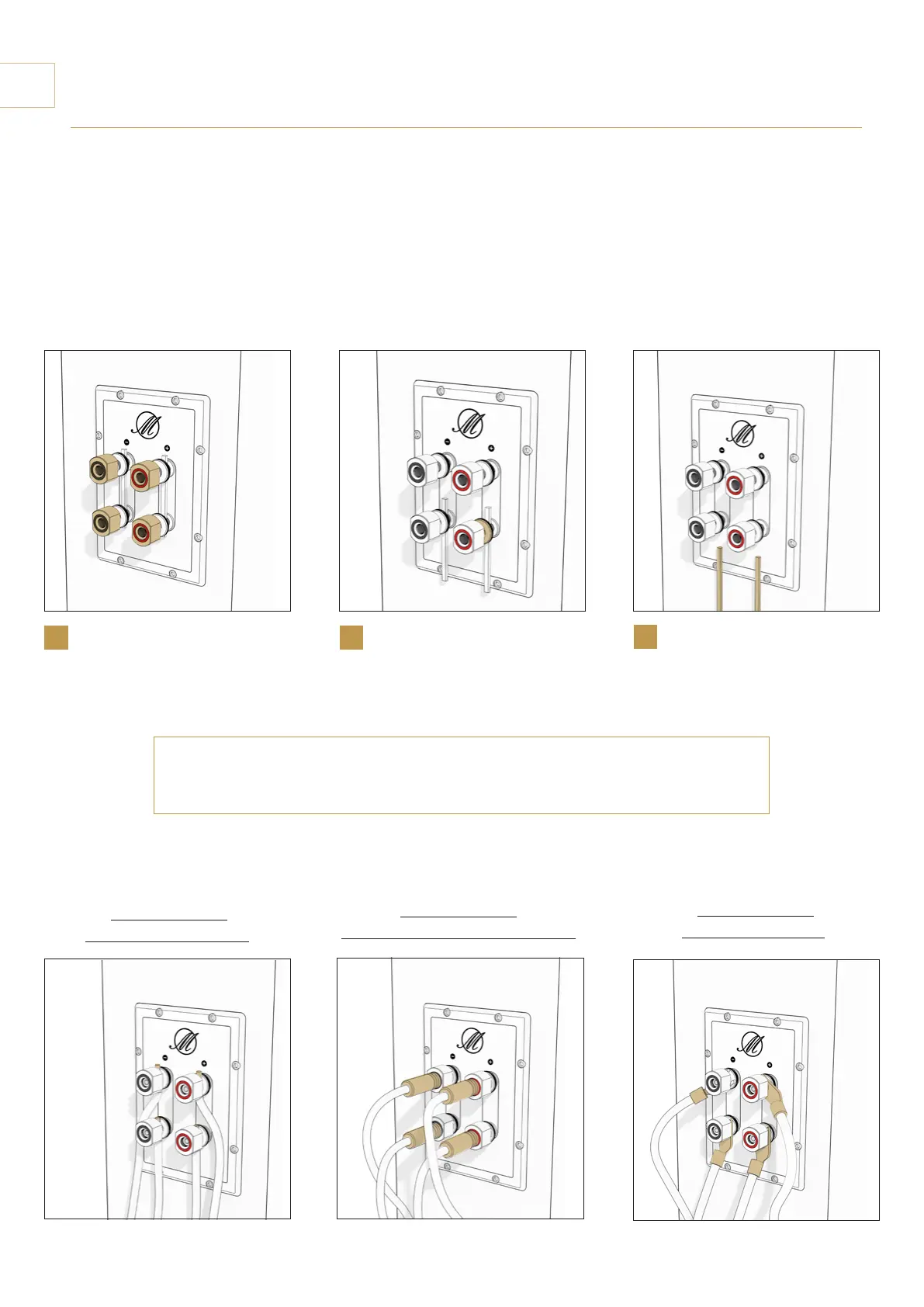

Making connections

This type of connection requires a specic setup of your terminals.

The upper terminals feed the mid/high range, the lower ones the low range. .

Remove the two jumpers as follows:

Then connect the cables to the appropriate connectors:

Connection with

stripped speaker cables

Connection with

cables mounted on banana plugs

Connection with

fork-mounted cables

NOTE: Keep the jumpers in the accessory case

1 2

Bi-wiring & bi-amping

Unscrew the terminals by 1cm. Then unscrew the nuts holding the

jumpers.

3

Remove the jumpers and tighten

the nuts.
