Making connections
Unscrew the terminals to make room for the cable. Insert the cable in
this hole and screw the terminal until the cable is rmly attached.
Carefully check that the jumpers are in place and securely fastened
with the locking nut.

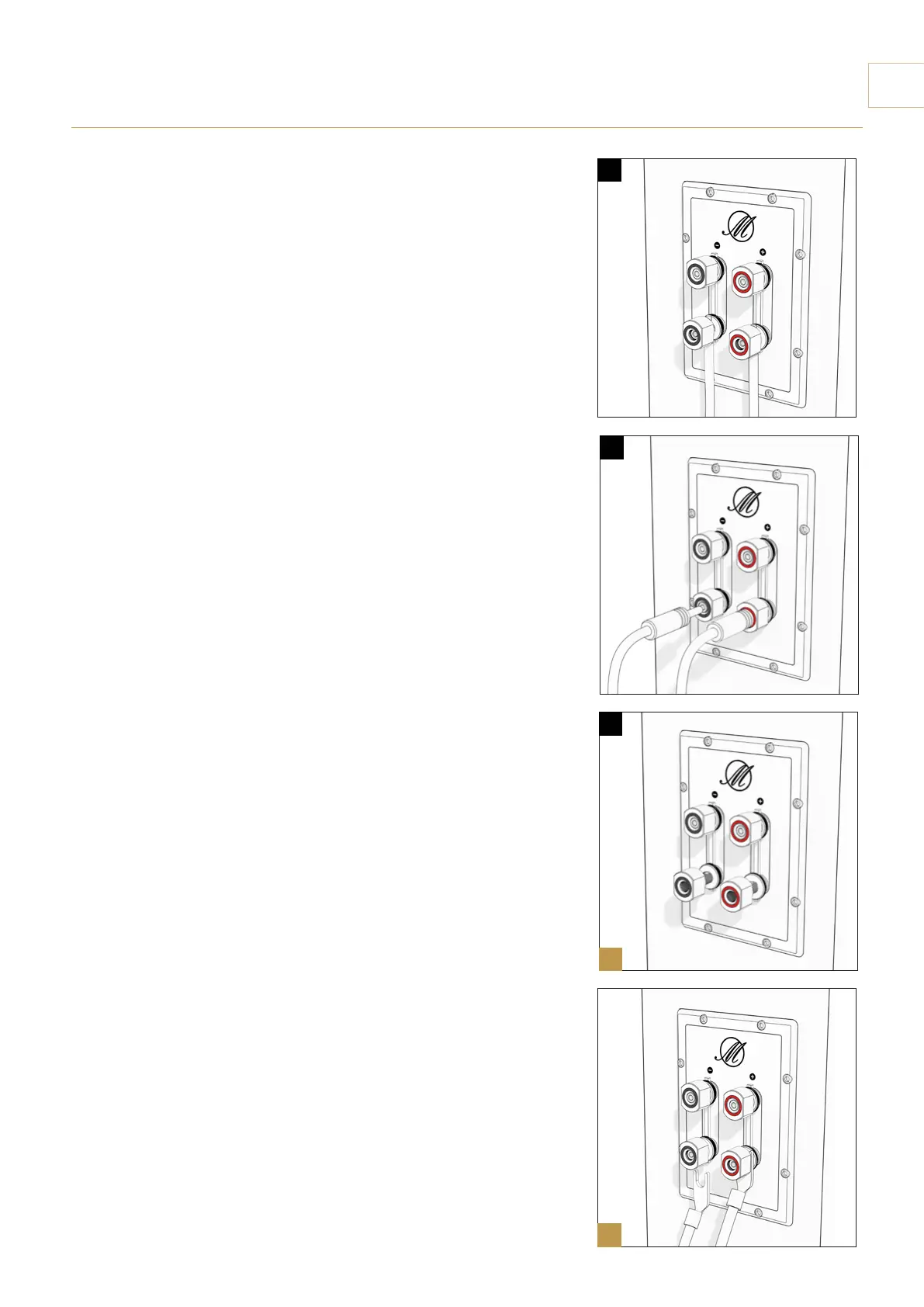

A - Connection with stripped speaker cables
Place the banana plugs with the correct polarity on the dedicated
terminals.
Carefully check that the jumpers are in place and securely fastened
with the locking nut.
B - Connection with cables mounted on banana plugs
C - Connection with fork-mounted cables
Unscrew the lower terminals (1). Insert the forks and screw the termi-
nals until the cable is rmly attached. (2)
Carefully check that the jumpers are in place and securely fastened
with the locking nut.
