7. MICROPROCESSOR CONTROL (cont’d)

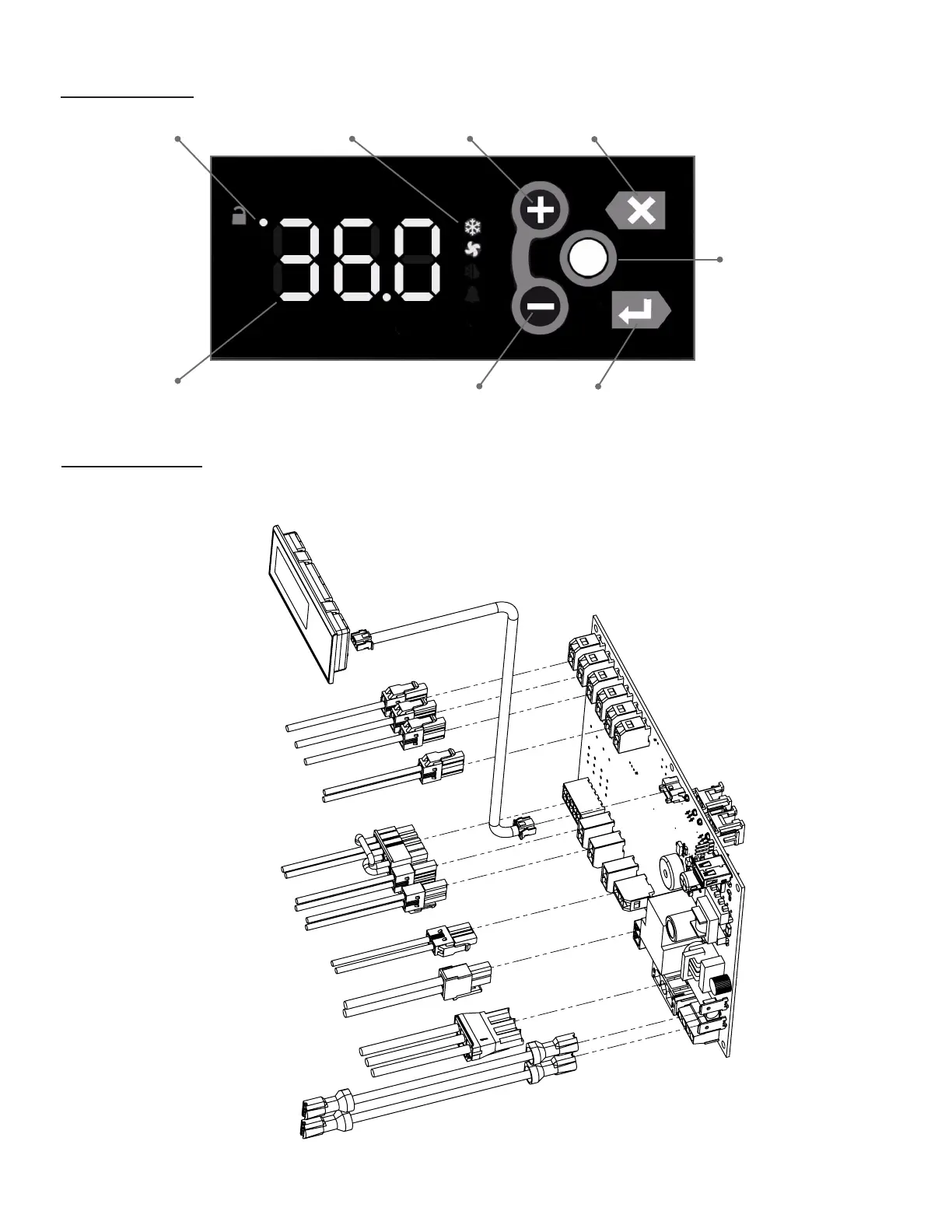

7B - CONTROL PANEL:
7C - PARTS ASSEMBLY:
NOTE: Parts can be ordered separately by calling Traulsen at 800-825-8220. Requires unit model and serial to
place order. Please contact factory direct for hot food control drawing if required.
G SERIES
Page 7
Unlock Symbol Status Icons + or Next Key Esc or Back Key
Cabinet Temp
- or Previous Key
Display or Enter
Key
Unlock or Modify
Key
PN: 000-90000-XX REV: A
NEXT GEN CONTROL - G
CONTROL BOARD
950-60509-00
CONTROL CABLE
333-60523-00
CONTROL DISPLAY
950-60510-00
BLACK - SWITCH
GREEN - GROUND
BLACK - LINE
WHITE - NEUTRAL
BLUE/WHITE - COMPRESSOR
ORANGE/WHITE - DOOR HEATERS
GRAY/WHITE - EVAPORATOR FANS
PURPLE/WHITE - DEFROST
BLACK/YELLOW - DOOR SWITCH
YELLOW - LIQUID LINE
GREEN - CABINET
YELLOW/WHITE - LIGHTS
BLUE - COIL
BLACK - SWITCH
