DeltaStream Pizzabox Optical Line Terminal

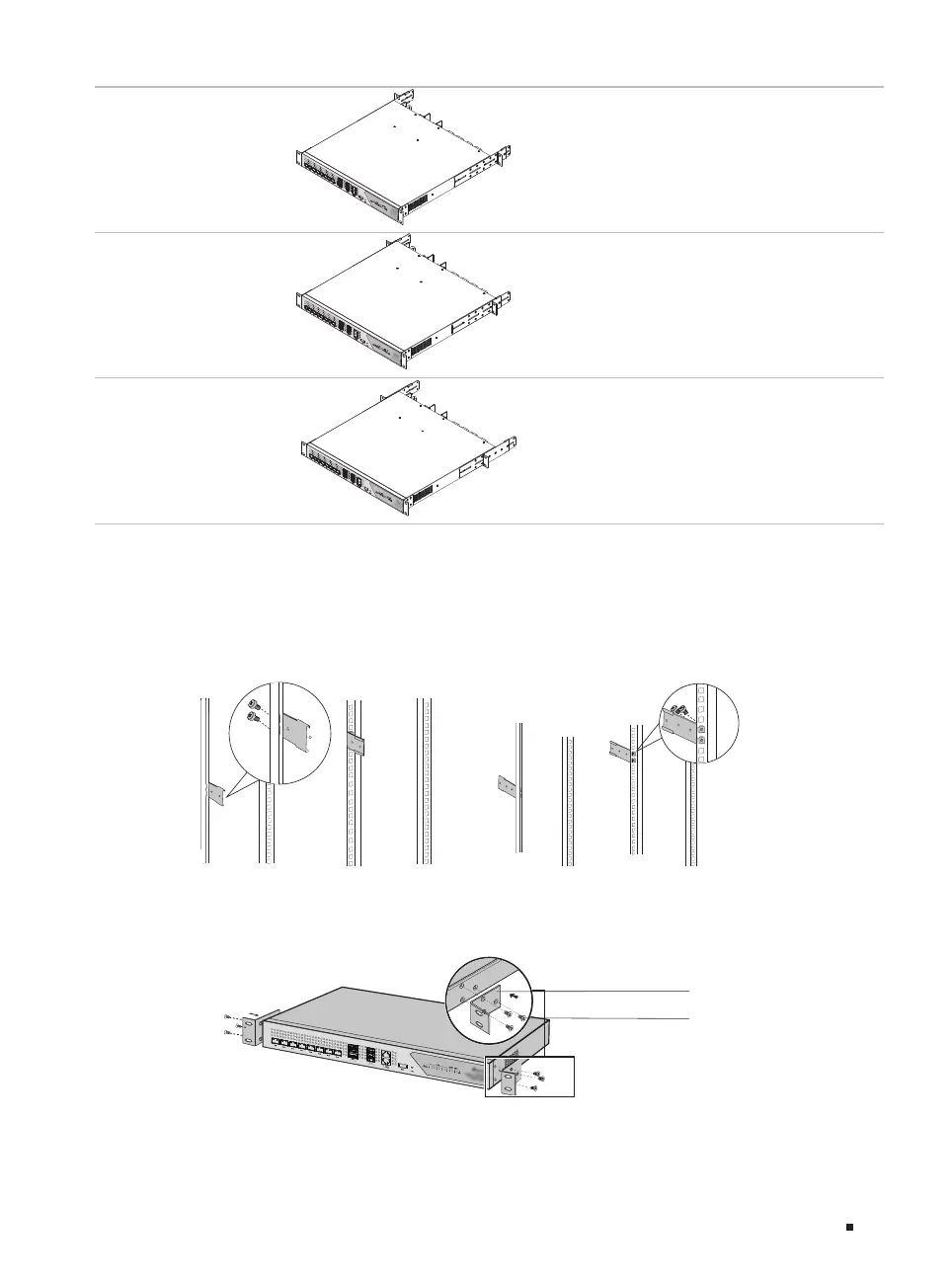

19Installation

Front:

Bracket D

Rear:

Bracket A (Screw Hole

Group 2) + Bracket C (Ear

towards front)

410-429mm 450-469mm 490-509mm

Front:

Bracket D

Rear:

Bracket A (Screw Hole

Group 3) + Bracket C (Ear

towards back)

357-410mm 397-450mm 437-490mm

Front:

Bracket D

Rear:

Bracket A (Screw Hole

Group 2) + Bracket B (Ear

towards back)

282-410mm 322-450mm 362-490mm

To install the device in an EIA standard-sized, 19-inch rack, follow the instructions described below:

1. Check the efficiency of the grounding system and the stability of the rack.

2. Attach the mounting brackets (B or C) to the rear-post racks and secure them with the provided

M6 screws, as illustrated in the following figure.

Figure 2-1 Installing Brackets on Racks

3. Secure the supplied rack-mounting brackets to each side of the device with supplied screws, as

illustrated in the following figure.

Rack-mounting Bracket

Screw

4. After the brackets are attached to the device, use suitable screws (not provided) to secure the

brackets to the rack, as illustrated in the following figure.
