DeltaStream Pizzabox Optical Line Terminal

18 Installation

2.4 Product Installation

■

Rack Installation

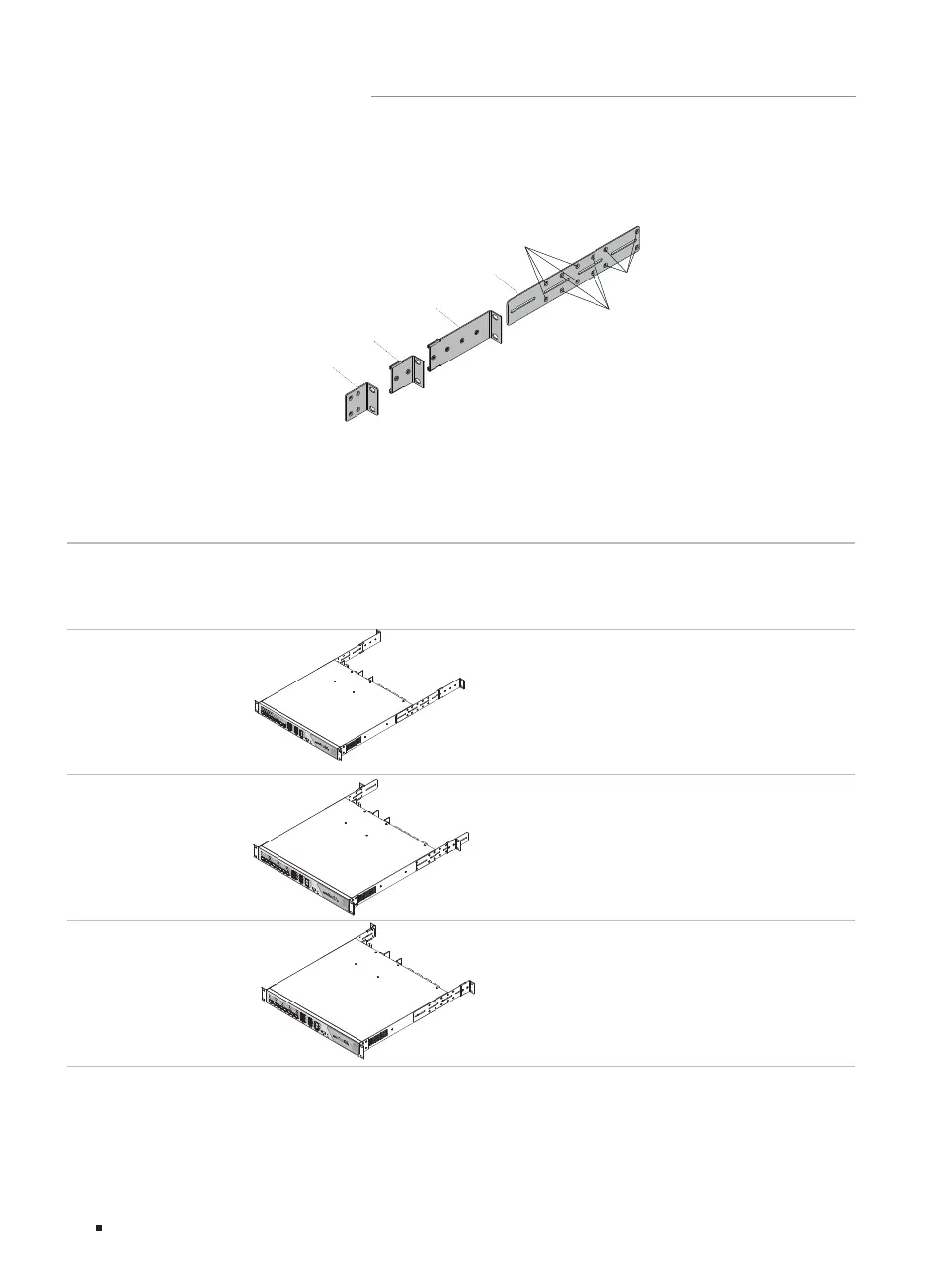

The package includes 4 pairs of different rack-mounting brackets, their pictures are depicted below

and may differ from the actual products.

Bracket A

Bracket B

Bracket C

Bracket D

Screw Hole

Group 1

Screw Hole

Group 2

Screw Hole

Group 3

Before installing the device in an EIA standard-sized, 19-inch rack, please check the efficiency of

the grounding system and the stability of the rack, then wear an ESD-preventive wrist strap, and

make sure that it has good skin contact and is well grounded. Bracket B & C have two adjustable ears,

please measure the distance between the front-post rack and the rear-post rack, and determine a

suitable mounting method from below:

Method Demonstration

Rack Distance

(For device

with a depth of

380mm)

Rack Distance

(For device

with a depth of

420mm)

Rack Distance

(For device

with a depth of

460mm)

Front:

Bracket D

Rear:

Bracket A (Screw Hole

Group 1) + Bracket B (Ear

towards back)

498-640mm 538-680mm 578-720mm

Front:

Bracket D

Rear:

Bracket A (Screw Hole

Group 1) + Bracket C (Ear

towards back)

477-498mm 517-538mm 557-578mm

Front:

Bracket D

Rear:

Bracket A (Screw Hole

Group 2) + Bracket C (Ear

towards back)

429-477mm 469-517mm 509-557mm
