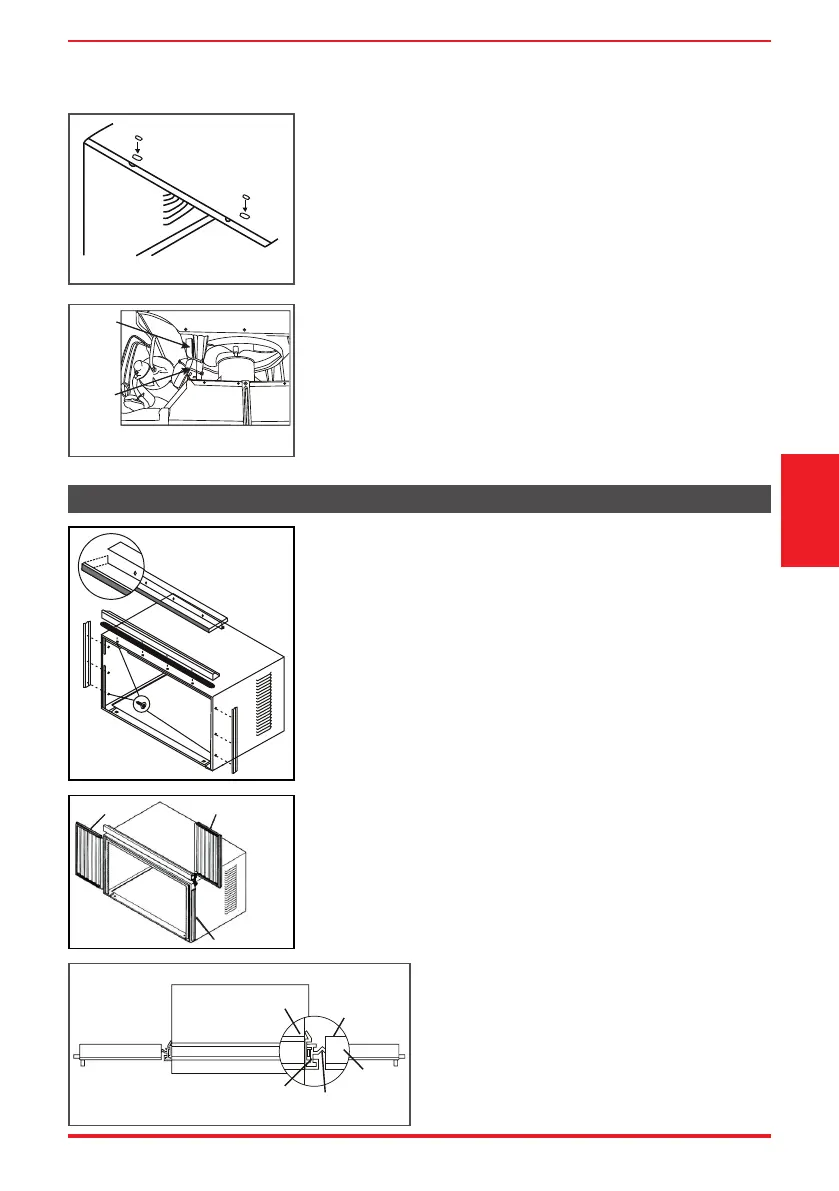

User Manual Page 15
Installation
Instructions
2. Prepare the Cabinet
I. Add two foam inserts to holes in top of cabinet where shipping
screws were removed from (see Fig. 6).
J. Your unit may come with internal packaging. This packaging
must be removed prior to installing the air conditioner back
into the cabinet. (see Fig. 7).
Fig. 6
Fig. 7
Shipping
Packaging
Plastic
Tie
A. Place cabinet on oor, a bench, or a table.
B. Attach foam gasket to top rail above holes as shown in Fig. 6.
C. Install top rail and side retainers to cabinet as shown in Fig. 8
(10 screws).
Fig. 8
5/16” long
hex-head
Plastic Frame
Side Retainer
Window
Accordion
Panel
Fig. 9
D. Slide 1 section of window accordion panel into side retainer on
the side of the cabinet (see Fig. 9 & Fig. 10). Do both sides.
E. Insert top and bottom legs of window accordion panel frame
into channel in the top rail and bottom rail. Do both sides.
F. Insert washer head locking 7/16” screws (2) into
holes in top leg of accordion panel frame (see
step 6). Do not completely tighten.
Allow leg to slide freely. Screws will be
tightened after section 6.
TOP VIEW
Air Conditioner
Cabinet
Plastic
Frame
Locking
Screw
Hole
Window
Accordion Panel
“I” Section
Fig. 10
