window
frame
Fig. 6
Fig. 7A Fig. 7B
Fig. 9
Fig. 9
FOAM SEAL
Fig. 10

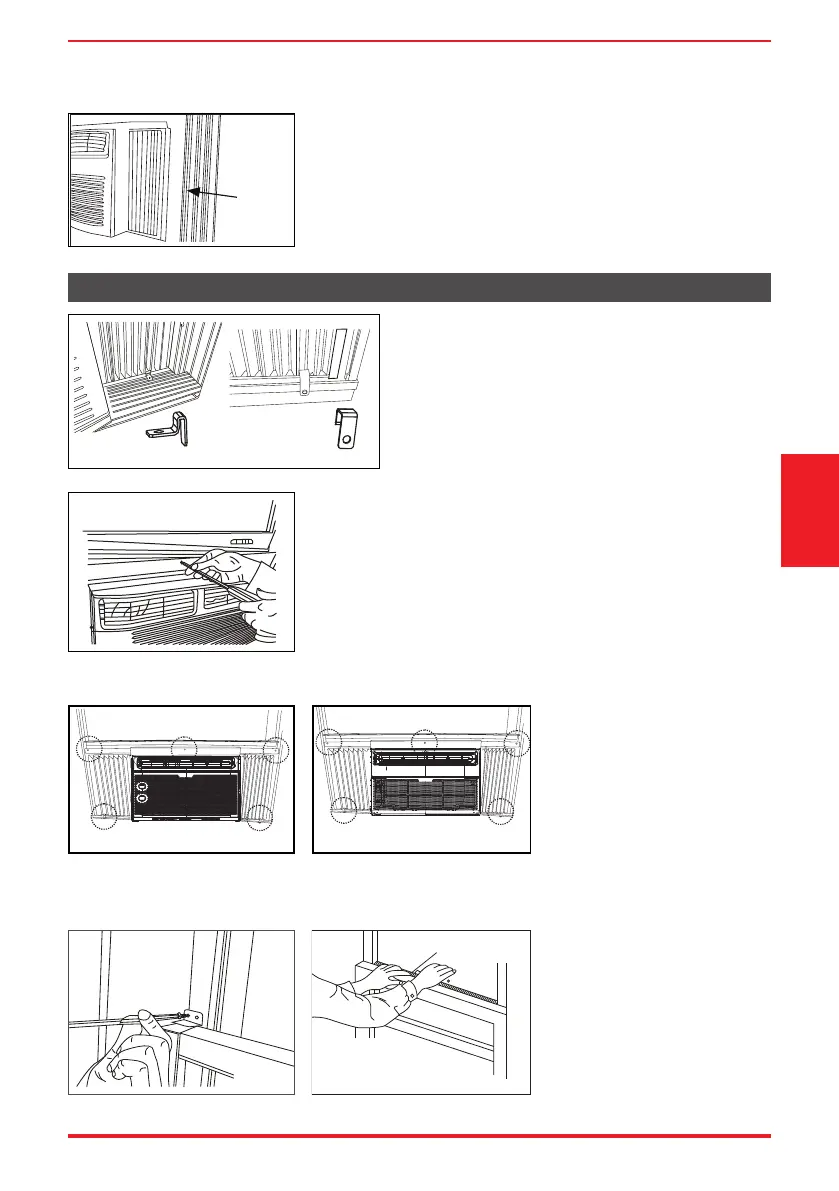

A. Place the frame lock between the frame extensions
and the window sill as shown (Fig. 7A for Wooden
windows), (Fig. 7B for Vinyl-Clad windows).
Drive 19 mm (3/4”) or 12.7 mm (1/2”) locking
screws through the frame lock and into the sill.
NOTE: To prevent window sill from splitting, drill 3
mm (1/8”) pilot holes before driving screws.
B1: For wooden windows:
Drive 12.7 mm (1/2”) locking screws through the frame lock and
into the sill (Fig. 8A).
NOTE: To prevent window sill from splitting, drill 3mm (1/8”)
pilot holes before driving screws. Drive 12.7mm (1/2”)
locking screws through frame holes into window sash (Fig.
8B/8C).
B2: For Vinyl-Clad windows:
Drive 12.7 mm(1/2” ) locking
screws through the frame
lock and into the window
sash (Fig. 8B).
NOTE: Before driving the
screws, use a drill to drill 5
holes through the holes in
the frame lock and frame
extensions into the windows
sash as shown (Fig. 8B/8C).
B. Extend the side panels out against the window frame (Fig. 6).
5. Install Support Bracket
Fig.8
Fig. 8B
Fig.8
Fig. 8C
RAC-WK05 only Models RAC-WK06/08/10/12
Installation
Instructions
Fig. 8A
C. To secure lower sash in
place, attach right angle
sash lock with 19 mm(3/4” )
or 12.7 mm (1/2”) screw as
shown (Fig. 9).
D. Cut Window sash seal foam
and insert it in the space
between the upper and
lower sashes (Fig. 10).
User Manual Page 17
