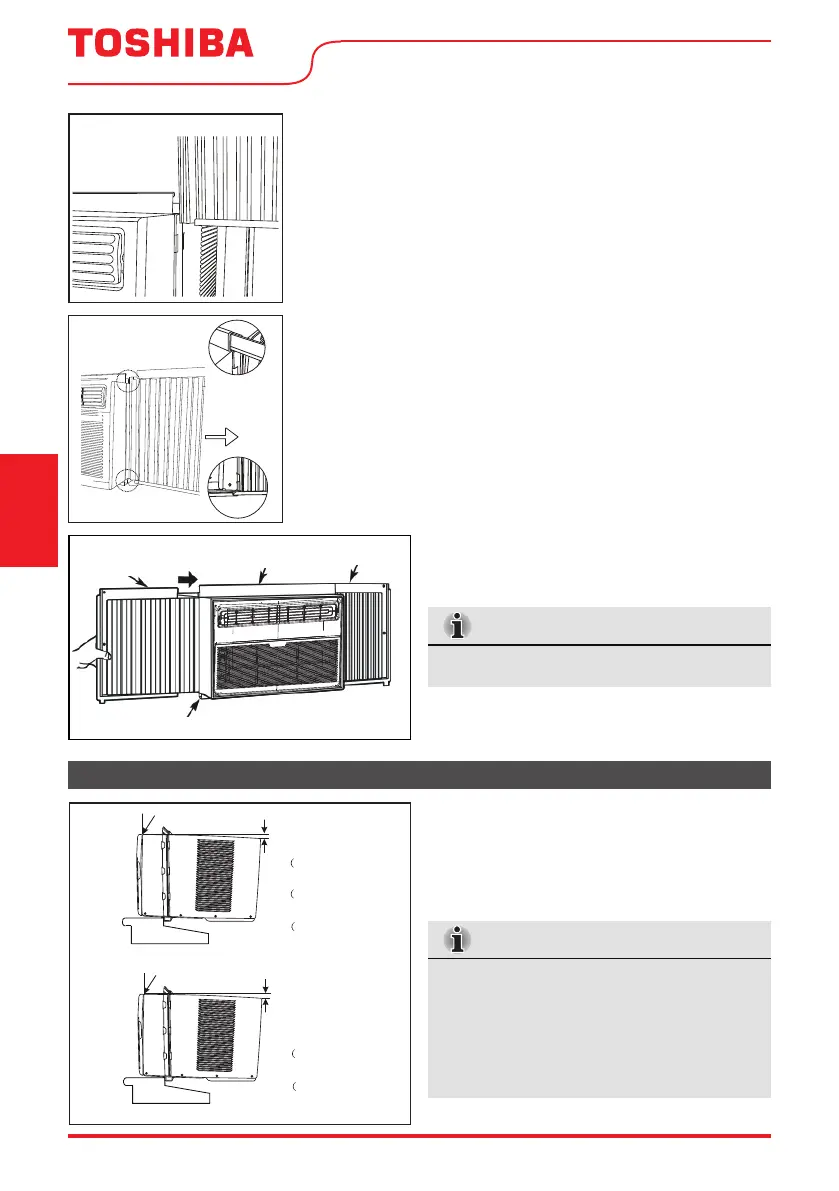

NOTE
If storm window blocks AC, see Fig. 15.
Top Rail
Bottom Rail
Fig. 3
B. Slide the free end “
I
“ section of the panel directly into the
cabinet as shown in Fig. 2. Slide the panel down. Be sure to
leave enough space to slip the top and bottom of the frame into
the rails on the cabinet.
C. Once the panel has been installed on the side of the cabinet,
make sure it sits securely inside the frame channel by making
slight adjustments.
Slide the top and bottom ends of the frame into the top and
bottom rails of the cabinet. Fig. 3.
Top Rail
Bottom Rail
Top left
Top right
Fig. 4
D. Slide the panel all the way in and repeat on
the other side.
4. Secure the Accordion Panels
NOTE
Check that air conditioner is tilted back
per dimension H (Fig. 5) (tilted about 3° to
4° downward to the outside). After proper
installation, condensate should not drain
from the overflow drain hole during normal
use. Adjust the slope if otherwise.
A. Keep a rm grip on the air conditioner, carefully
place the unit into the window opening so the
bottom of the air conditioner frame is against
the window sill (Fig. 5). Carefully close the
window behind the top rail of the unit.
Wooden Windows
INSIDE
OUTSIDE
H:About 3/4” to 1”
for 8K)
Measure from the cabinet edge
3
H:About 1” to 1
/
for 10K to 12K)
8”
H
H:About
5/8
” to
3/4
”
for 5K)
Vinyl-Clad Windows
INSIDE
OUTSIDE
H:About 3/4” to 1”
for 5K to 8K)
Measure from the cabinet edge
3
H:About 1” to 1
/
for 10K to 12K)
8”
H
Fig. 5
Installation
Instructions
“I” section
Fig. 2
“
I
“ section
User ManualPage 16
