Controls
Refertothefollowingsectionsfortheappropriatemachine
controls:
•OperatorPlatform
•Monitor
•ControlPanel
•LeftJoystick—ModeI
•LeftJoystick—ModeII
•RightJoystick—ModeI
•RightJoystick—ModeII
•Exit-Side-LockoutSystem(StandardRange)
•Exit-Side-LockoutSystem(LongRange)
•RearControlPanel
•DrillFrameandStabilizerControls
•DrivePendant
•DrillPendant
•Stake-DownLevers
•Battery-DisconnectSwitch
OperatorPlatform
Theoperatorplatform,locatedontheright,frontcornerof
themachine,containsmostofthecontrolsyouusetooperate
thedrillingfunctionsofthemachine.

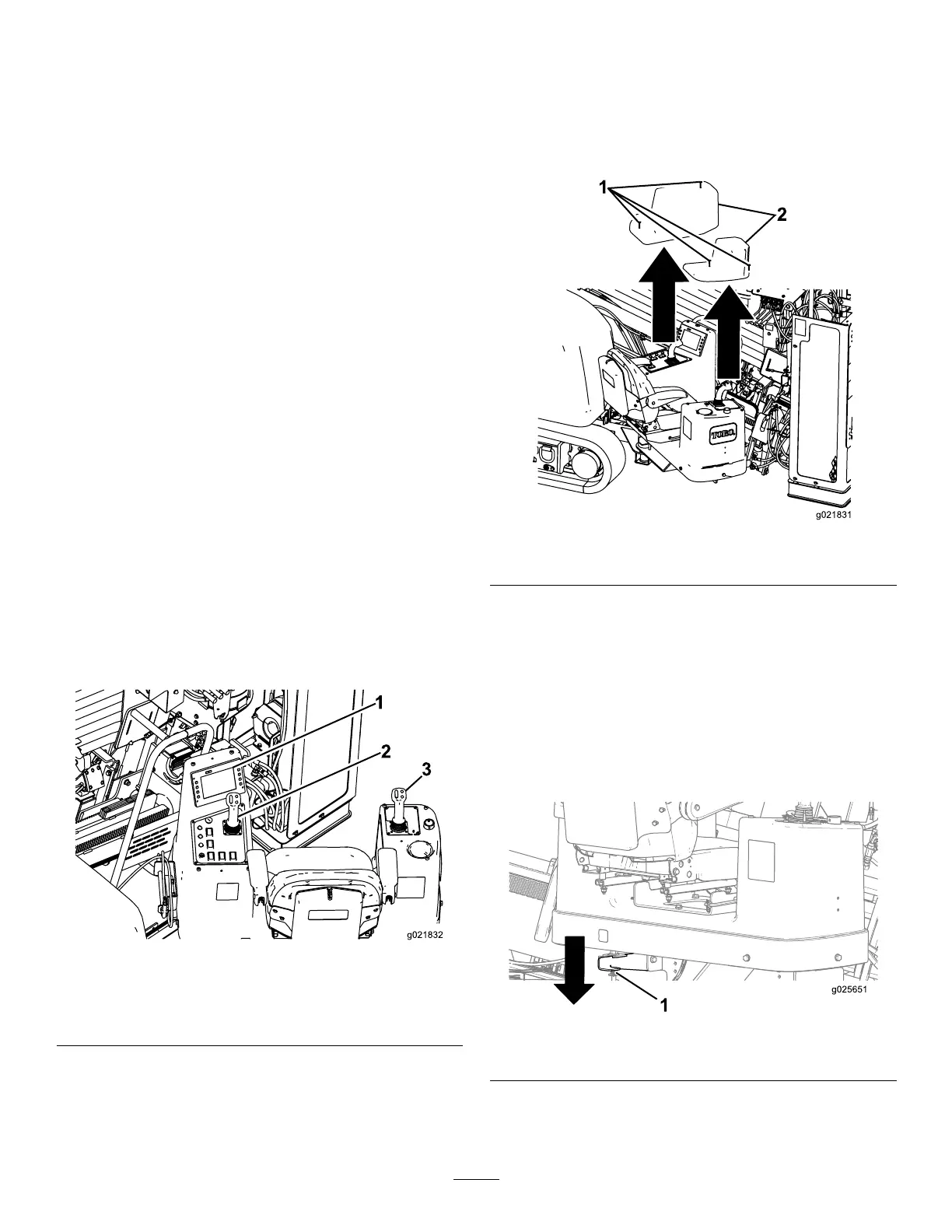

Figure8
1.Operatordisplay
3.Rightjoystick
2.Leftcontrolpaneland
joystick
Operator-ControlsCovers
Thecoversprotecttheoperatorcontrolsfromadverse
weatherconditions,suchasrain,wind,sunlight,etc.Remove
thembeforeusingthemachineandreplacethembefore
leavingthemachinefortheday.Eachcoverissecuredwith2
screwsasshowninFigure9.
Figure9
1.Screws2.Covers
Operator-PlatformLatch
Theoperatorplatformswingsoutawayfromthemachine,
makingroomforyoutosit.Ithas4positions:travel(swung
allthewayintothemachine),full-out,and2intermediate
positions.ReturntheplatformtotheTRA VELpositionbefore
movingthemachine.
Toreleasetheplatformandswingitoutorin,pressdownon
therearplatformlatch(Figure10).
Figure10
1.Rearplatformlatch
21
