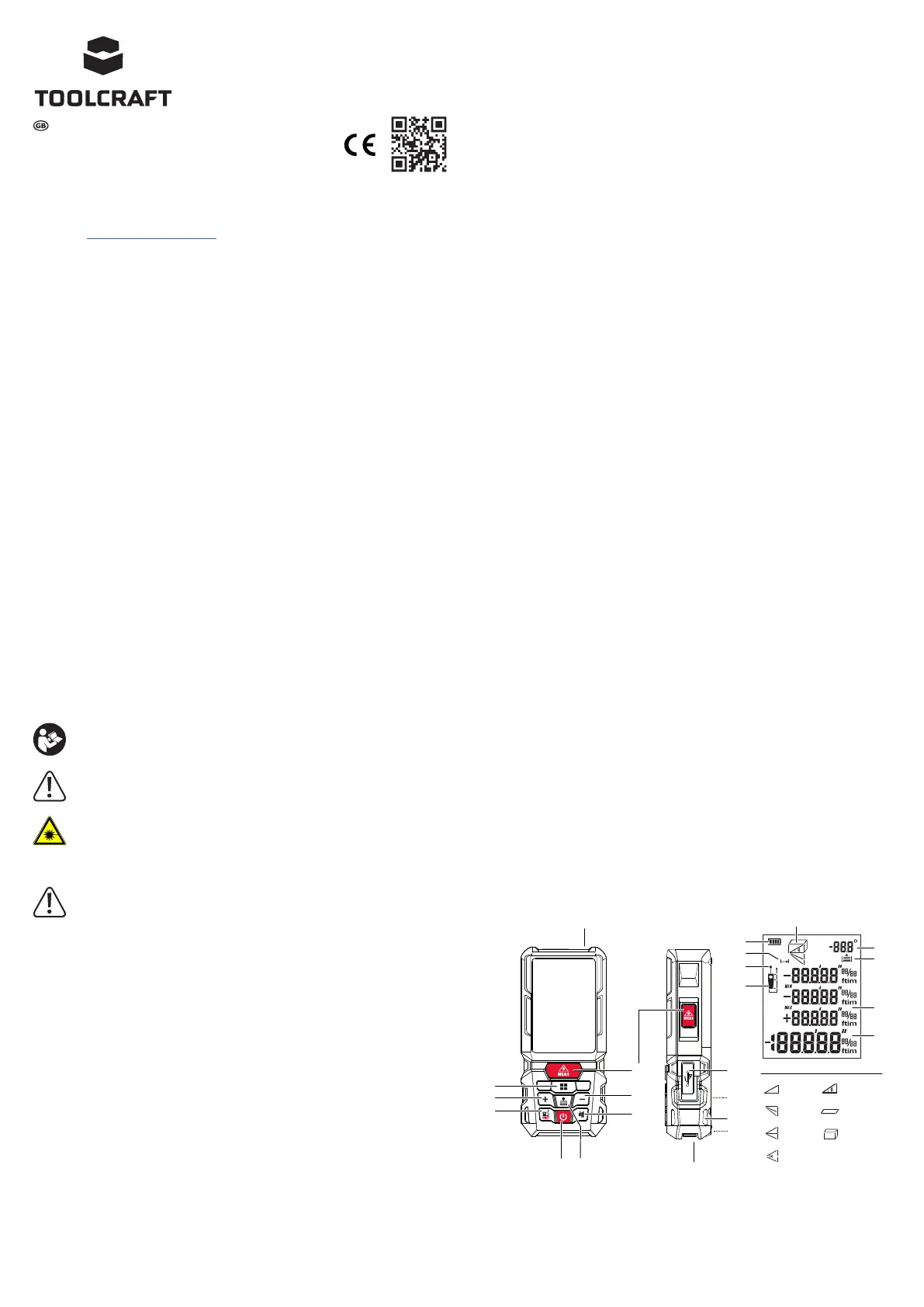

Operating Instructions
LDM XG60 Laser Rangefinder
Item no: 3208201 (40 m)
Item no: 3208202 (60 m)
1 Operating Instructions for download
Use the link www.conrad.com/downloads (alternatively scan the QR code) to download the
complete operating instructions (or new/current versions if available). Follow the instructions
on the web page.
2 Intended use
The product is a laser range finder. The product is intended for the measurement of dis-
tances, surface area and volumes.
The product has an IP65 ingress protection rating and is protected from dust and low pres-
sure water jets from any direction. The product is suitable for outdoor use. Do not submerge
the product in water.
If you use the product for purposes other than those described, the product may be dam-
aged.
Improper use can result in short circuits, fires, or other hazards.
The product complies with the statutory national and European requirements.
For safety and approval purposes, you must not rebuild and/or modify the product.
Read the operating instructions carefully and store them in a safe place. Make this product
available to third parties only together with the operating instructions.
All company names and product names are trademarks of their respective owners. All rights
reserved.
USB4®, USB Type-C® and USB-C® are registered trademarks of USB Implementers
Forum.
3 Delivery contents
■
Laser rangefinder
■
Storage pouch
■
Hand strap
■
2x Rechargeable NiMH batteries
■
USB-C® charging cable
■
Laser warning labels in multiple languages
■
Operating instructions
4 Description of symbols
The following symbols are on the product/appliance or are used in the text:
For safe and proper use, follow these instructions. Keep them for future refer-
ence.
The symbol warns of hazards that can lead to personal injury.
Laser aperture. Do not stare into beam or view with optical instruments!
5 Safety instructions
Read the operating instructions carefully and especially observe the safety
information. If you do not follow the safety instructions and information on
proper handling, we assume no liability for any resulting personal injury or
damage to property. Such cases will invalidate the warranty/guarantee.
5.1 General
■
The product is not a toy. Keep it out of the reach of children and pets.
■
Do not leave packaging material lying around carelessly. This may become dangerous
playing material for children.
■
If you have questions which remain unanswered by this information product, contact our
technical support service or other technical personnel.
■
Maintenance, modifications and repairs must only be completed by a technician or an
authorised repair centre.
5.2 Handling
■
Handle the product carefully. Jolts, impacts or a fall even from a low height can damage
the product.
5.3 Operating environment
■
Do not place the product under any mechanical stress.
■
Protect the appliance from extreme temperatures, strong jolts, flammable gases, steam
and solvents.
■
Protect the product from direct sunlight.
5.4 Operation
■
Consult an expert when in doubt about the operation, safety or connection of the
product.
■
If it is no longer possible to operate the product safely, take it out of operation and pro-
tect it from any accidental use. DO NOT attempt to repair the product yourself. Safe op-
eration can no longer be guaranteed if the product:
– is visibly damaged,
– is no longer working properly,
– has been stored for extended periods in poor ambient conditions or
– has been subjected to any serious transport-related stresses.
5.5 (Rechargeable) Batteries
■
Correct polarity must be observed while inserting (rechargeable) batteries.
■
The (rechargeable) batteries should be removed from the device if it is not used for a
long period of time to avoid damage through leaking. Leaking or damaged (re-
chargeable) batteries might cause acid burns when in contact with skin, therefore use
suitable protective gloves to handle corrupted (rechargeable) batteries.
■
(Rechargeable) batteries must be kept out of reach of children. Do not leave (re-
chargeable) batteries lying around, as there is risk, that children or pets swallow them.
■
All (rechargeable) batteries should be replaced at the same time. Mixing old and new (re-
chargeable) batteries in the device can lead to (rechargeable) battery leakage and
device damage.
■
(Rechargeable) batteries must not be dismantled, short-circuited or thrown into fire.
Never recharge non-rechargeable batteries. There is a risk of explosion!
5.6 Connected devices
■
Also observe the safety and operating instructions of any other devices which are con-
nected to the product.
5.7 Laser class 2
■
When operating the laser equipment, always make sure that the laser beam is directed
so that no one is in the projection area and that unintentionally reflected beams (e.g.,
from reflective objects) cannot be directed into areas where people are present.
■
Laser radiation can be dangerous if the laser beam or its reflection enters unprotected
eyes. Before using the product, familiarise yourself with the statutory regulations and in-
structions for operating this type of laser device.
■
Never look into the laser beam or point it at people or animals. Laser radiation can seri-
ously damage your eyes.
■
If laser radiation enters your eyes, close your eyes immediately and move your head
away from the beam.
■
If your eyes have been irritated by laser radiation, do not continue to carry out tasks with
safety implications, such as working with machines, working from heights, or working
close to high voltages. Do not drive any vehicles until the irritation has completely sub-
sided.
■
Do not point the laser beam at mirrors or other reflective surfaces. The uncontrolled, re-
flected beam may strike people or animals.
■
Never open the device. Configuration or maintenance tasks must only be completed by a
trained specialist who is familiar with the potential hazards. Improper maintenance work
may result in dangerous laser radiation.
■
The product is equipped with a class 2 laser. Laser signs in different languages are in-
cluded in the packaging. If the sign on the laser is not in your local language, attach the
appropriate sign to the laser. Refer to the "Technical data" for the label.
■
Caution: Using equipment or procedures other than those described in these instructions
could lead to exposure to dangerous radiation.
6 Product overview
1
2
3
4
5
6
7
89
10
11
12
13
D9
F2
F3
F4
F5
F6
F7
D7
D6
D1
D2
D3
D4
D5
F1
D8
14
1 USB-C® charging port 2 Battery comparment
3 Eyelet for handstrap 4 Tripod mount
5 Measure button 6 Subtraction button
