Chapter 2
USING IN THE SIMPLE MODE
2-22

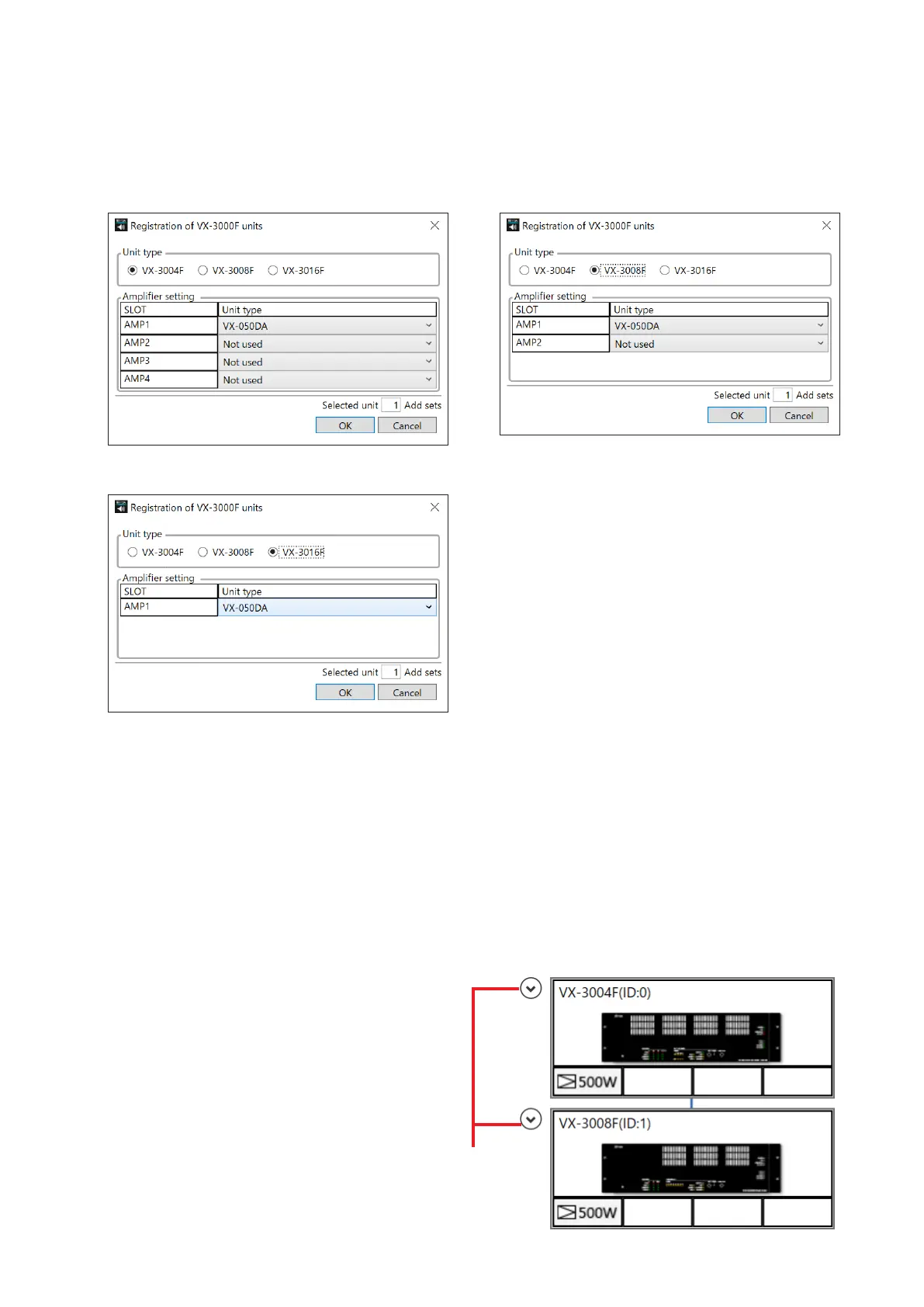

7.1. Adding the VX-3000F to the Unit Configuration
Clicking the [VX-3000F Conguration: Add] button pops up the "Registration of VX-3000F units" window.
Perform settings of the VX-3000F to be added to the unit conguration.
Set contents are different for each model. Up to 40 units in total of 3 models can be used.
[When adding the VX-3004F] [When adding the VX-3008F]
[When adding the VX-3016F]
(1)
(3)
(2)
(1)
(2)
(3)
(1)
(2)
(3)
Set the items below and click the OK button. Then, the unit designated in the Unit type (1) is added in the Unit
conguration display on the Unit conguration settings screen by the number of units entered in the "Selected
unit # Add set" (3).
(1) Unit type
Select the model number.
If you change the model by clicking the radio button, the display of the set contents changes accordingly.
(2)Ampliersetting
Perform settings of the built-in digital power amplier module used for each channel.
(3) Selected unit # Add set
Set the number of the VX-3000F units to be
added to the conguration with the above set
contents.
Click the OK button after entering the number
of the units. Then, the unit(s) are added in the
equipment conguration eld on the right side
of the menu, and the "Registration of VX-3000F
units" window will be closed.
Unit conguration
detail display button
