Step 1. ConrmthatbatterypowerisnotinusebymeansoftheVX-3000DS'front-mountedBATTERYPOWER
LED, which is unlit in this case.
Step 2. Loosen the VX-3000DS' BATTERY POWERINnegative terminal screw, then pull outthe negative
battery cable.
Notes
•Neverremovethepositivecablersttoavoidbatteryshort-circuitthatoccursifthepositivecable
should contact the unit chassis or equipment rack.
•Insulatetheexposedendoftheremovedcablewithinsulatingtapetoavoidshortingtotheothercable.
Step 3. Remove the positive battery cable from the positive terminal in the same manner as Step 2.
Note
Insulate the exposed end of removed cable with insulating tape to avoid shorting to the other cable.
[Disconnecting the battery]
[Installing a temperature sensor]

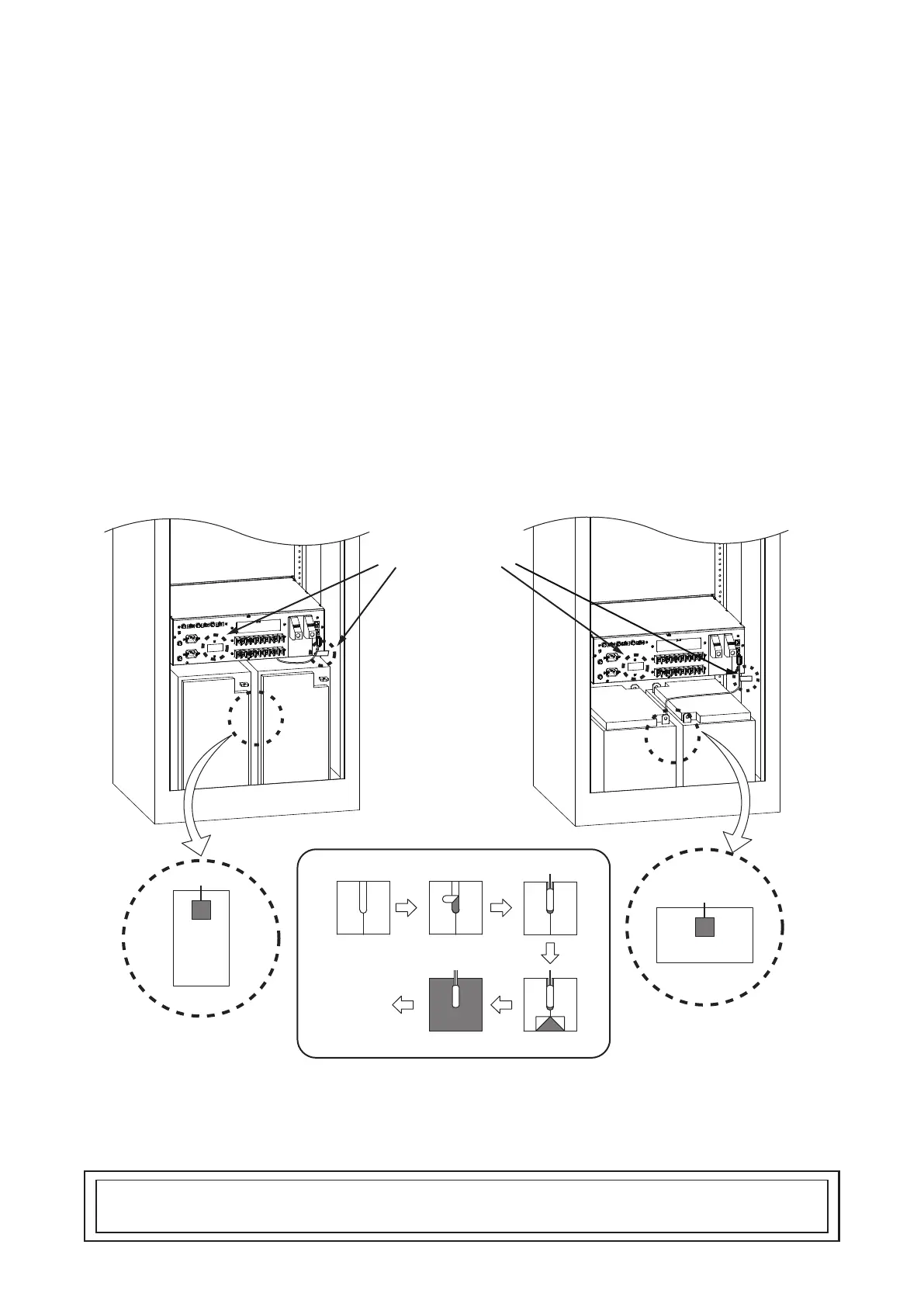

Thetemperaturesensorlocated ontheVX-3000DS'rearpanelis designedto compensatefortemperature
changes when charging the battery. It should be mounted on the side of one battery in between 2 batteries
using the supplied thermal insulating sheet to avoid ambient temperature change, thereby maintaining the
temperature of the temperature sensor relatively constant.
For details about battery installation, refer to "9. APPENDIX: Recommendations to the Power
Supply Installation" on p. 26.
Reduced
side-view
Reduced
side-view
Thermal insulating sheet
(supplied with the VX-3000DS)
Attach to
the side
of battery
Temperature sensor mounting
Temperature sensor
mounting appearance
Temperature sensor
mounting appearance
Confirm both serial
numbers are the same.
(Horizontal installation of batteries)
(Vertical installation of batteries)
Step 1. Clean the exterior surface of the battery using a soft damp cloth.
Note: Avoid using chemical cleaners and solvents that may cause the battery cases to clack or leak.
Step 2. Follow the procedure shown above to attach the temperature sensor to the battery.
Note: The thermal insulating sheet is hard to remove after attached.
