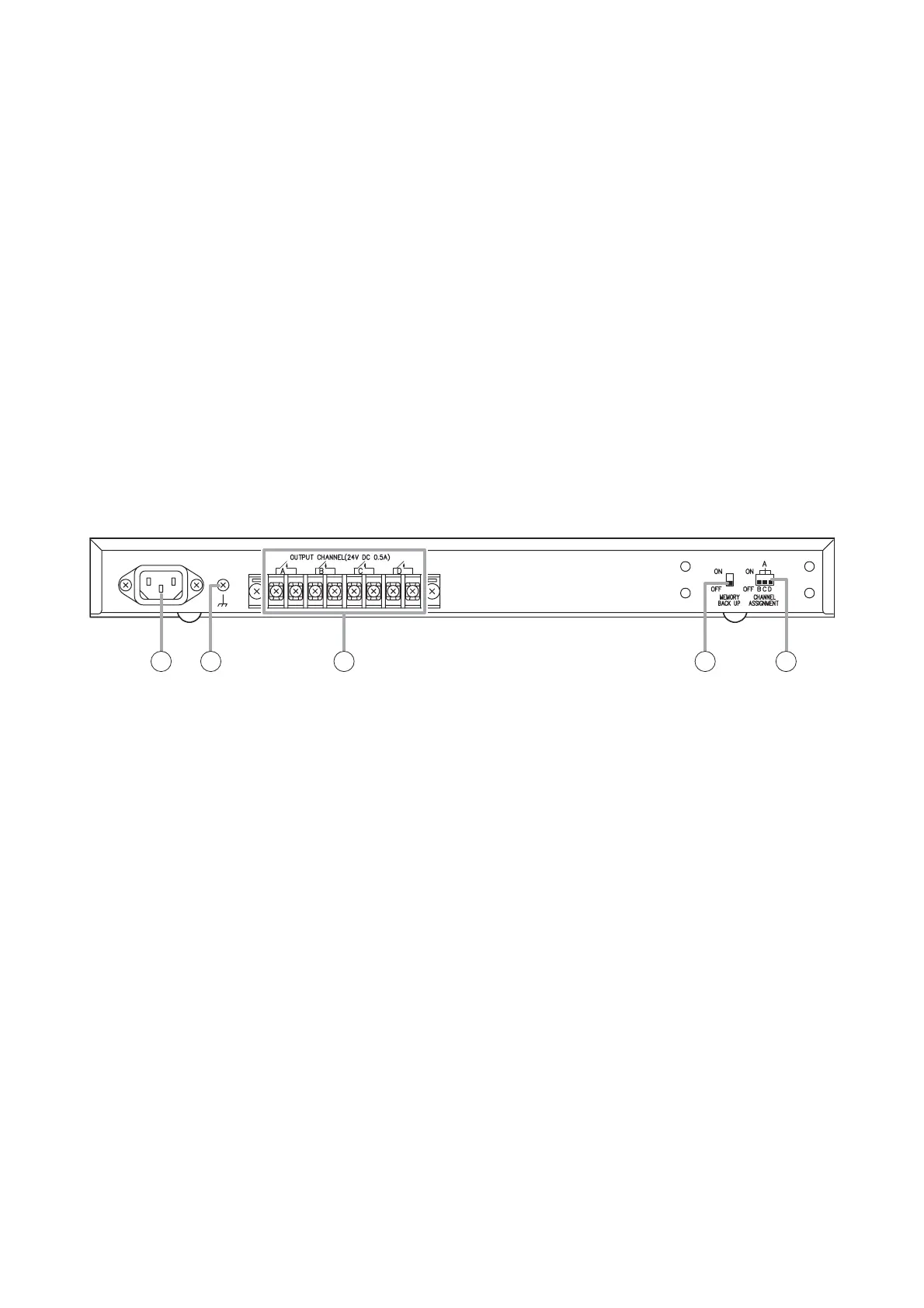

[Rear]
16. AC power inlet
Connect the supplied power cord to this inlet.
17. Earth terminal
Be sure to ground the unit.
18. OUTPUT CHANNEL terminal
• Output capacity:
24 V DC, 0.5 A (resistance load)
Minimum load: 10 mV DC, 10 μA.
• A relay contact closes for 5 seconds at the
programmed time.
• These relays provide dry contacts.
• Connect this terminal to start terminals of BGM
player or spot announcing machines, etc.
19. MEMORY BACK UP switch
Be sure to set this switch to ON after installation.
This switch allows clock and stored programs to
be retained for approximately 100 hours during
power outage. (Factory-preset: OFF)
20. CHANNEL ASSIGNMENT switch
Set each switch to ON when assigning all of B, C
and D output channels to the A output channel.
When, for example, the B channel switch is set
to ON, the A channel relay contact closes at the
time programmed for both A and B channels. In
this event, the B control output does not work.
(Factory-preset: OFF)
12. CHECK key
This key checks the day of the week or time for
proper registration.
The corresponding Day indicator comes on when
checking the day of the week.
Also, each time this key is pressed, the clock
display shows the programmed times from the
earliest time to the latest in sequence.
13. AUTO/OFF switches
Each individual output channel can be connected
and disconnected with this switch.
Setting the switch to ON allows the corresponding
output channel to operate at the programmed
time.
When set to OFF, the output operation stops.
(Factory-preset: OFF)
14. MANUAL keys
Use these keys to manually deliver the output
regardless of actual program. Pressing each key
closes a relay contact for 5 seconds.
Notes
• The connected equipment can be manually
activated with the keys regardless of program
as well as position of the AUTO/OFF switches
(13).
• The keys cannot be operated during power
outage.
15. OUTPUT identification label
This label is supplied with the unit.
Write the names of programs of or equipment
connected to each output channel in the label.
