8. SELECTING THE OPTIONAL MOUNTING BRACKET
Shown below are optional mounting brackets.
Select the appropriate bracket to use depending on the speaker mounting orientation and the installation
location.
There also are the following brackets for specic purposes: the one less noticeable when installed and the one
used to install the SR-F08 to the speaker stand. (See the next page.)
For the mounting, read the instruction manual enclosed with the bracket.

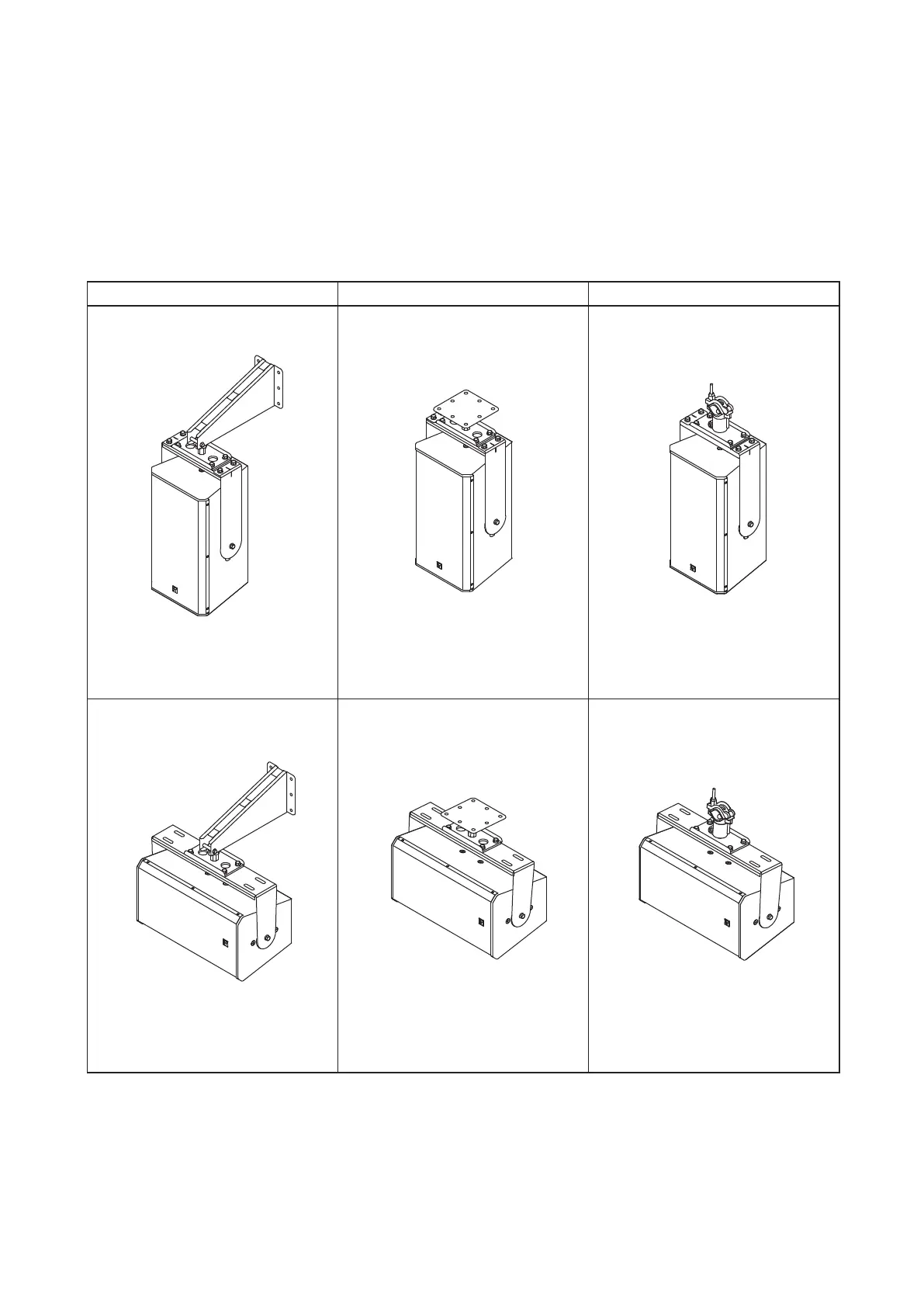

8.1. Bracket to Use and Its Installation Example
Installing to the wall *
1
Installing to the ceiling *
1
Installing to the pipe
[ When mounting in vertical
orientation] *
2
[ When mounting in vertical
orientation]
[ When mounting in vertical
orientation]
Usable bracket:
HY-UV08 + HY-W0801
Weight: 17.2 kg or 37.92 lb
(including speaker weight)
Usable bracket:
HY-UV08 + HY-C0801
Weight: 15.1 kg or 33.29 lb
(including speaker weight)
Usable bracket:
HY-UV08 + HY-B0801
Weight: 15.1 kg or 33.29 lb
(including speaker weight)
[ When mounting in horizontal
orientation]
[ When mounting in horizontal
orientation]
[ When mounting in horizontal
orientation]
Usable bracket:
HY-UH08 + HY-W0801
Weight: 17 kg or 37.48 lb
(including speaker weight)
Usable bracket:
HY-UH08 + HY-C0801
Weight: 14.9 kg or 32.85 lb
(including speaker weight)
Usable bracket:
HY-UH08 + HY-B0801
Weight: 14.9 kg or 32.85 lb
(including speaker weight)
Tip
There is no limit on the speaker mounting angle both in horizontal and vertical directions.
*
1
You can install the speaker directly to the wall or ceiling using the HY-UH08 only. For details, read the
installation manual supplied with the HY-UH08.
*
2
You can also use the optional HY-WM08 Wall mounting bracket. In this case, there is a limit on the speaker
mounting angle. (See the next page.)
