5

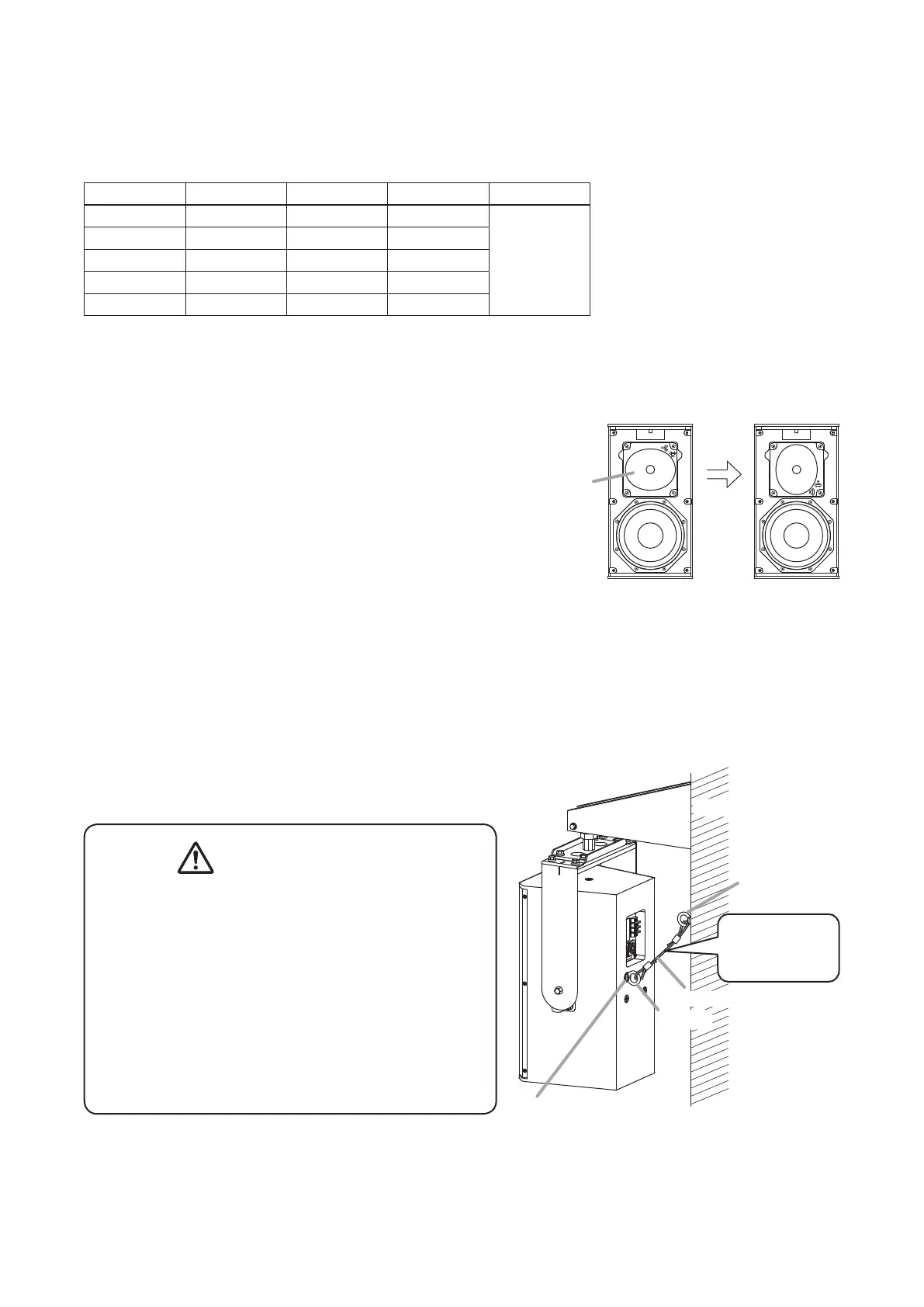

5. EQUALIZATION USING A DIGITAL SIGNAL PROCESSOR
The SR-F08 is to reproduce high quality sound even without the use of an equalizer.
However, sound quality can be made even clearer and more dynamic with the addition of a TOA digital signal
processor (DSP) set as shown in the table.
Filter Frequency Gain Q Delay
HPF (12 dB) 60 Hz
-
1.432
0 ms
PEQ 200 Hz
-
5.0
1.850
PEQ
1.25 kHz
-
2.0 2.871
PEQ 2.50 kHz
-
2.0 2.871
PEQ 7.75 kHz
-
1.5 3.450
6. CHANGING THE HORN COVERAGE ANGLE
The speaker's horizontal and vertical coverage angle can be changed by rotating the horn 90 degrees.
Step 1. Remove the front grille screws and detach the grille.
Step 2. Remove the horn's mounting screws and change the
horn's orientation as shown at right.
Step 3. Replace the horn and the front grille.
7. SAFETY WIRE INSTALLATION
Be sure to always use safety wire when installing speaker
systems.
Note
• A safety wire, eyebolts, and washers are not supplied.
Prepare them separately.
• For the adaptive diameter of the eyebolt, see
"DIMENSIONAL DIAGRAM" on p. 8.
• Prepare the eyebolt with a length of over 30 mm (1.18").
Horn
[Wall Mounting Example]
In this example, the optional HY-UV08 and
HY-W0801 brackets are used.
Weight: 17.2 kg or 37.92 lb
(including speaker weight)
Safety wire
Eyebolt
Eyebolt
Wall
Make as short as
possible so as
not to slacken.
Washer
Be sure to follow all instructions regarding safety wire
installation. If not correctly followed, speakers could fall,
potentially resulting in personal injury.
• Use safety wire that is strong enough to suspend the
full weight of the components to be installed.
• Remove a screw on the speaker's rear panel, then
install an eyebolt and washer instead, and also install
an anchor bolt for the safety wire to the wall or ceiling
as shown at right.
• Only install speaker systems in locations capable of
structurally supporting the weight of the speakers and
their mounting brackets.
WARNING
